JGP3036DL1WW CONTROL PANEL & COOKTOP

JGP3036DL1WW CONTROL PANEL & COOKTOP

Written by

in

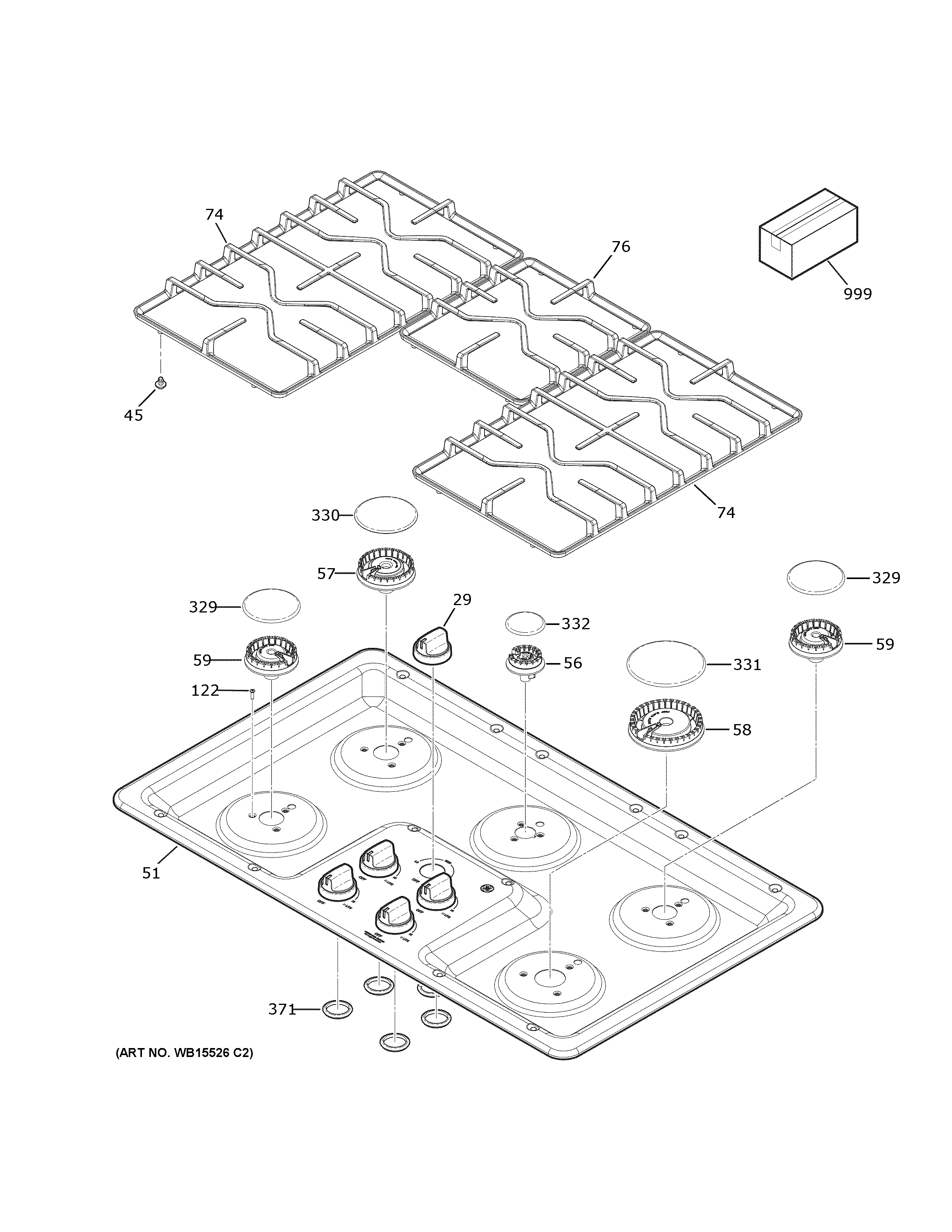

JGP3036DL1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03X29306 GE Oven Knob Assembly White
45WB02T10461 GE Oven Range Grate Foot
51WB62X29307 GE 36" Maintop Assembly
56WB16X24721 GE Oven Range Small Cooktop Burner V2
57BURNER LARGE V2
58WB16X24722 GE Oven Gas Range XL Surface Burner
59WB16X24724 GE Oven Medium Burner
74WB31X29298 GE Oven Large Grate Assembly
76WB31X29299 GE Oven Small Grate Assembly
122WB01X30054 GE Screw 6-32 OVT15 1/2"
329WB29K10023 GE Oven Burner Cap Assembly
330WB29K10024 GE Burner Cap Oven
331CAP BURNER ASM (15K)
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10040 GE Oven Control Seal White
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
