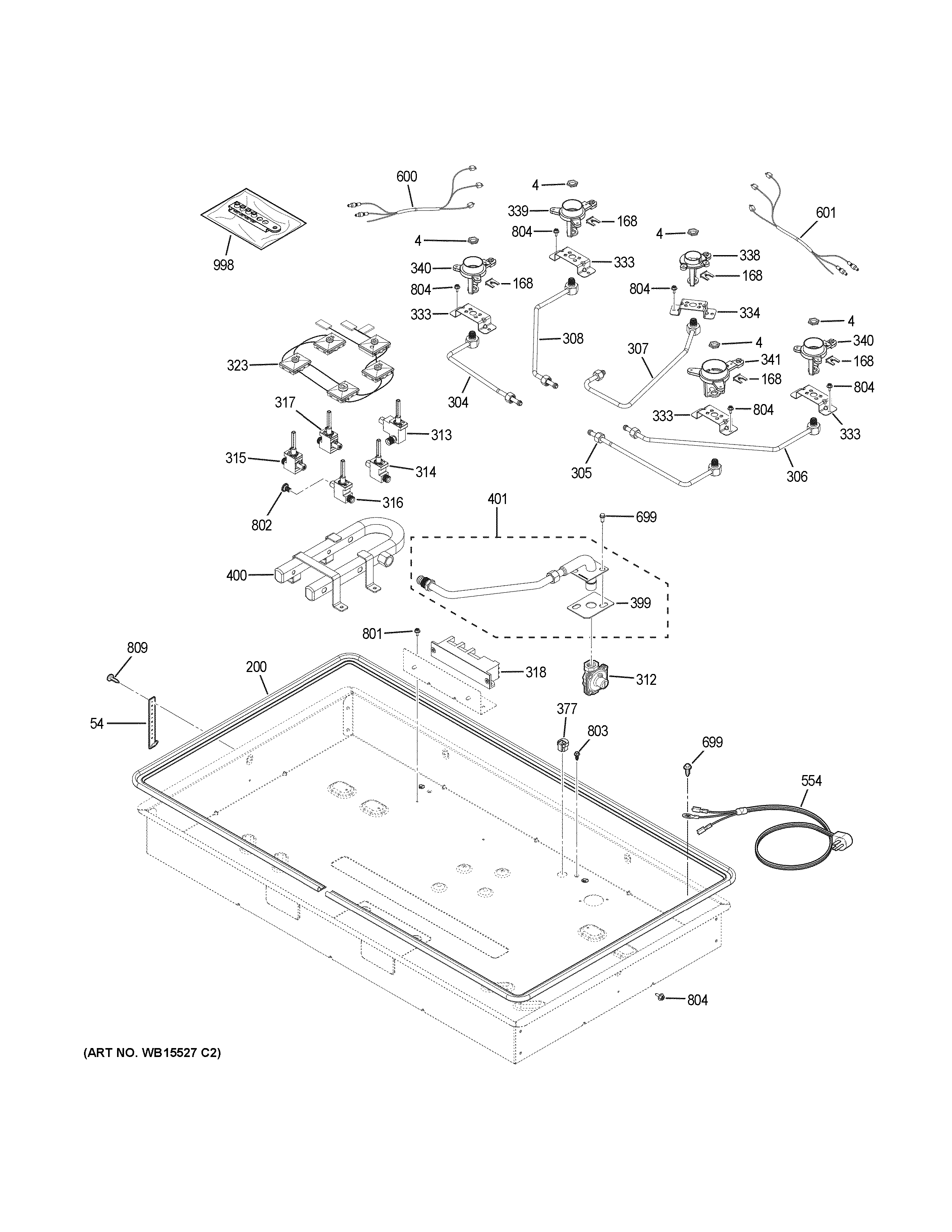

JGP3036DL1WW GAS & BURNER PARTS

JGP3036DL1WW GAS & BURNER PARTS

Written by

in

JGP3036DL1WW GAS & BURNER PARTS

Products

PositionProduct
4WB01K10037 GE Oven Economic Nut
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200BURNER BOX GASKET
304WB28X29285 GE Gas Tube Assembly Left Main
305WB28X29284 GE Gas Tube Assembly Right Front Main
306WB28X29286 GE Main Gas Tube Assembly
307WB28X30163 GE Gas Tube Assembly – Main Center
308WB28X29287 GE Gas Main Tube Assembly
312WB19T10089 GE Oven Pressure Regulator
313WB21X29296 GE Gas Valve
314WB21X29291 GE Gas Valve
315WB21X29290 GE Gas Valve
316WB21X29292 GE Oven Gas Valve
317WB21X29289 GE Gas Valve
318SPARK MODULE KIT
323WB18X33168 GE Switch Harness Assembly
333WB34X29282 GE Mounting Bracket
334MOUNTING BRACKET
338WB02X24728 GE Range Small Injector
339WB02X24726 GE Range Injector Large
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24725 GE Oven Inlet XLV2
377GEN WB02K5275
399MANIFOLD SEAL
400WB28X29293 GE Pipe Manifold
401WB28X30708 GE Inlet Tube Assembly
554WB18X25912 GE Range Cord
600WB13X29295 GE Igniter and Harness Assembly
601WB13X29294 GE Oven Igniter and Harness Assembly
699WB1M1 GE Oven Screw
801WB1X536 GE Oven Screw
802WB01K10067 GE Oven Screw 1/4" HD 20
803WS02X10087 GE Screws 10-32 GX HXW 7/16 S
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
998WB28X29964 GE Oven LP Conversion Kit
