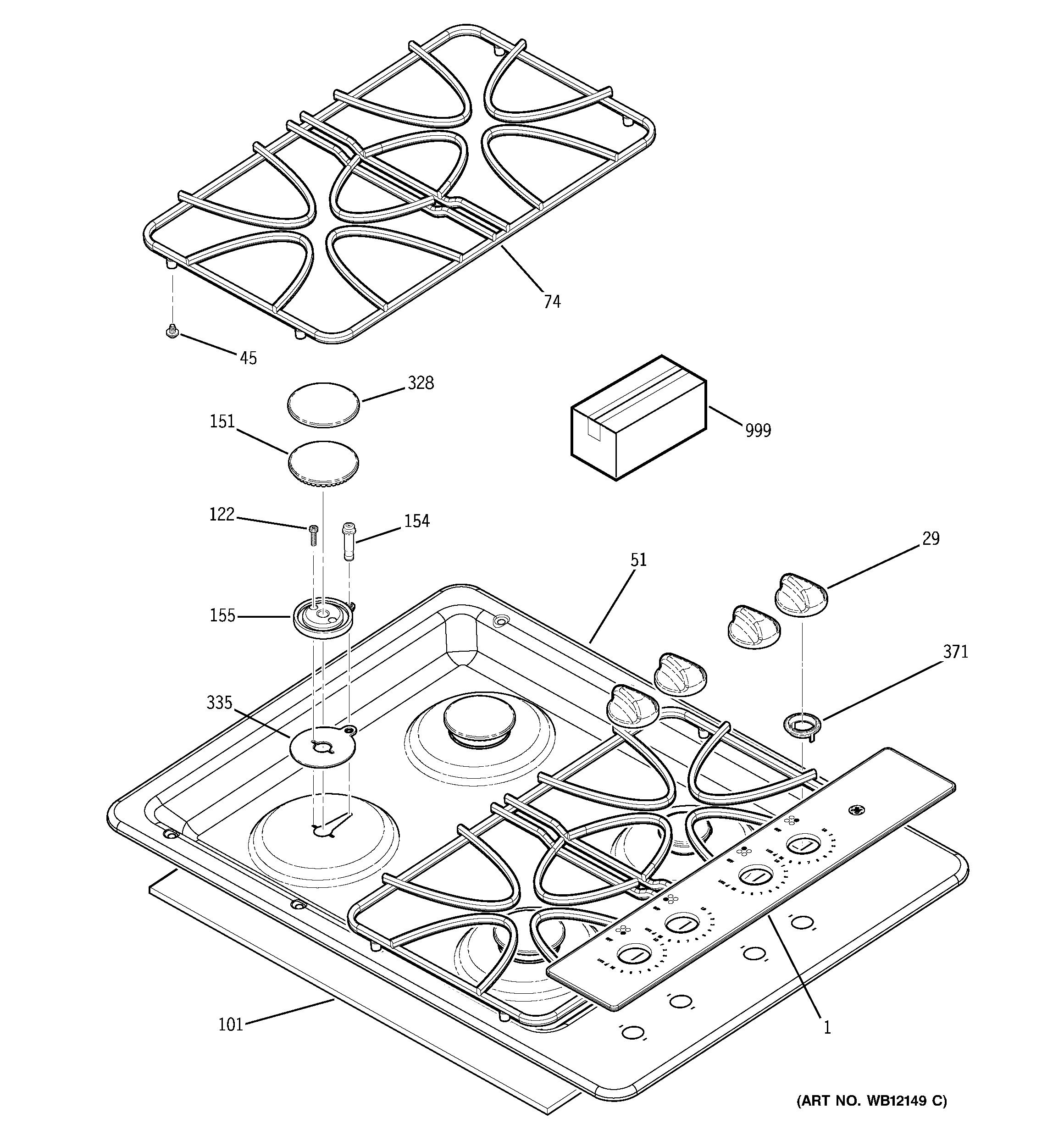

JGP328BEC1BB CONTROL PANEL & COOKTOP

JGP328BEC1BB CONTROL PANEL & COOKTOP

Written by

in

JGP328BEC1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57T10120
29GEN WB03T10139
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10112
74WB31X28386 GE Oven Grate Assembly
101WB35T10051 GE Side Insulation
101GEN WB35T10049
101GLASS TOP INSULATION
101INSULATION SIDE
122WB01T10049 GE Oven Screw
151WB16K10036 GE Oven Small Burner Head
151WB16T10029 GE Burner Head
154WB13X27058 GE Igniter
155WB16T10031 GE Oven Small Burner Base
155WB16T10030 GE Oven Medium Base Burner
328GEN WB13T10023
328GEN WB13T10024
335GEN WB16T10011
335GEN WB04T10011
371WB32K5024
999GEN 31-10443
999INSTALLATION INSTRUCTION
999USE & CARE MANUAL
999MINI MANUAL W/ WIRE DIAG
