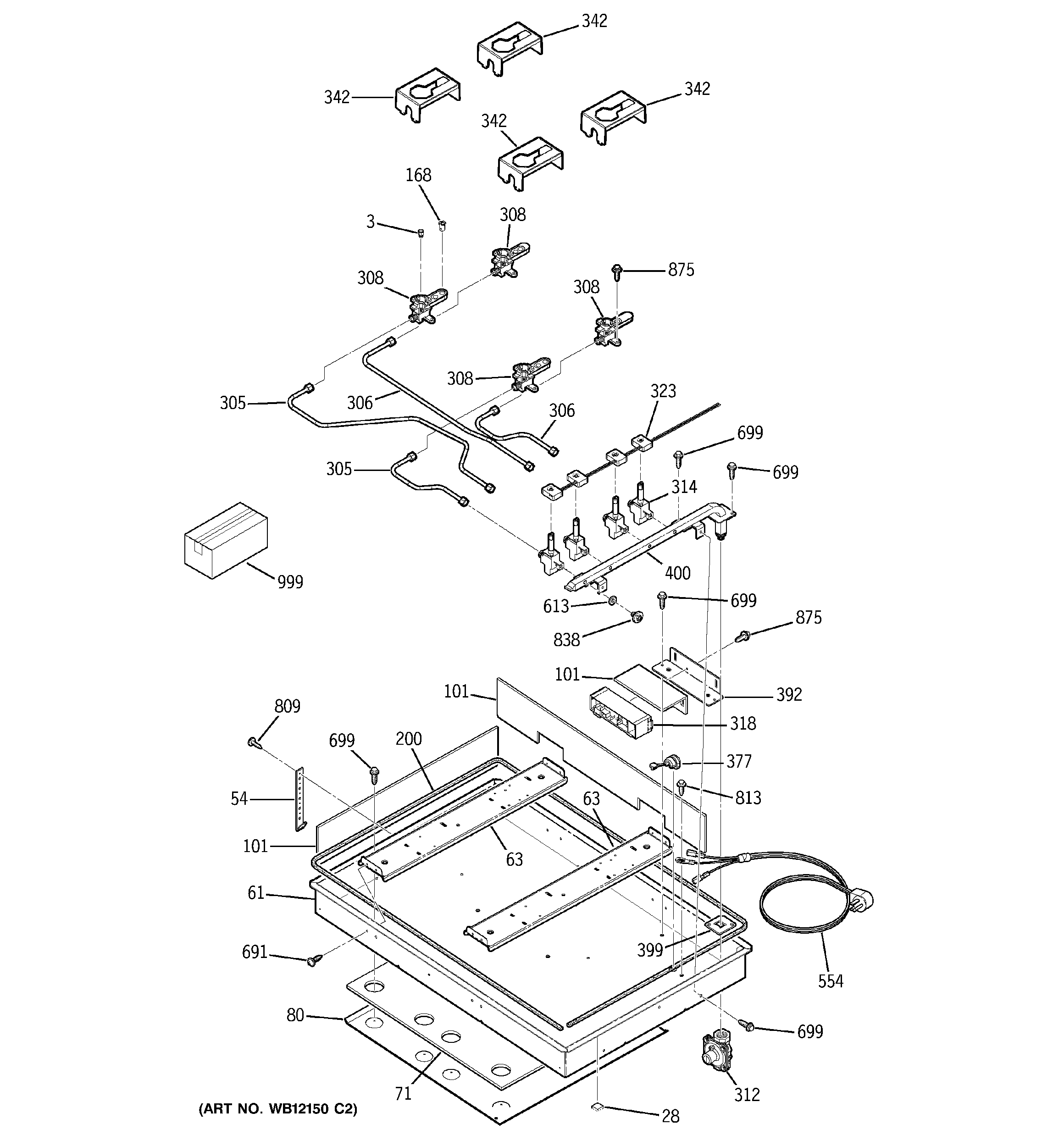

JGP328BEC1BB GAS & BURNER PARTS

Products

Position	Product
3	WB28T10014 GE Oven LT Front Orifice Spud
3	WB28K10288 GE Oven Orifice Spud
3	WB28T10028 GE Oven Orifice Spud Assembly
3	WB28T10017 GE Oven Orifice Spud
28	WB02T10244 GE Oven Felt Pad
54	WB2K5328 GE Oven Hold Down Bracket
61	GEN WB64T10023
63	BURNER BRACKET SUPPORT
71	BURNER BOX INSULATION
80	SHIELD BURN BOX BTTM
101	INSULATION SIDE
101	GLASS TOP INSULATION
101	GEN WB35T10049
101	WB35T10051 GE Side Insulation
168	WB01K10112 GE Range Oven Electrode Clip
200	GEN WB06T10009
305	GEN WB28T10035
305	GEN WB28T10037
306	BURNER TUBE RT. RR.
306	BURNER TUBE LT. RR.
308	BURNER INJET LT FRT
308	BURNER INJET RT FT/LTRR
312	REGULATOR CONVERT PRESS
314	GAS VALVE 270 RT. RR
314	GAS VALVE 270 LT. FRT.
318	GEN WB13K0025
323	GEN WB18T10176
342	WB02T10104 GE Oven Maintop Support
377	GEN WB02K5275
392	GEN WB02T10097
399	GEN WB04T10018
400	GEN WB28T10034
554	GEN WB08K5040
613	VALVE SCREW GASKET
691	GEN WB01K5192
699	WB1M1 GE Oven Screw
809	WB1X1137 GE Oven Screw
813	WB1X1261 GE Oven Screw
838	GEN WB01X1121
875	WH2X930 GE Screw
999	MINI MANUAL W/ WIRE DIAG
999	USE & CARE MANUAL
999	INSTALLATION INSTRUCTION
999	GEN 31-10443
