JGP328CEK2CC CONTROL PANEL & COOKTOP

JGP328CEK2CC CONTROL PANEL & COOKTOP

Written by

in

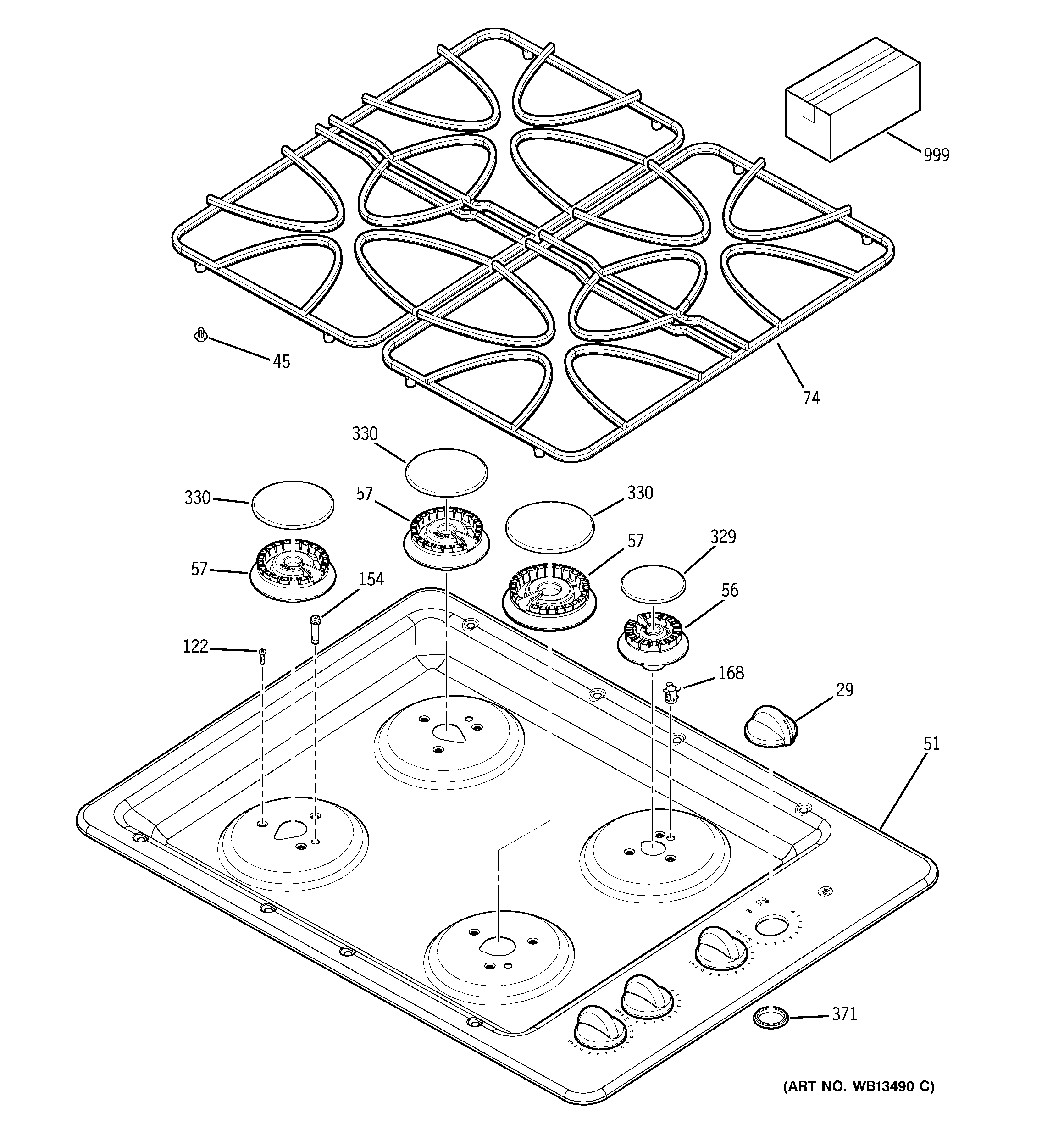

JGP328CEK2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
29GEN WB03T10218
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10381
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
74WB31X28386 GE Oven Grate Assembly
122SCREW 6-32 5/8 OVAL PHILLIPS
154GEN WB13K10014
168WB01K10112 GE Range Oven Electrode Clip
329CAP-BURNER SMALL TAUPE
330CAP-BURNER MED TAUPE
371GEN WB04T10041
999GEN 31-14253
999GEN 49-80358
999WB18T10407 GE Oven Burner Wire Harness
999GEN 31-10600
999GEN 31-10613
