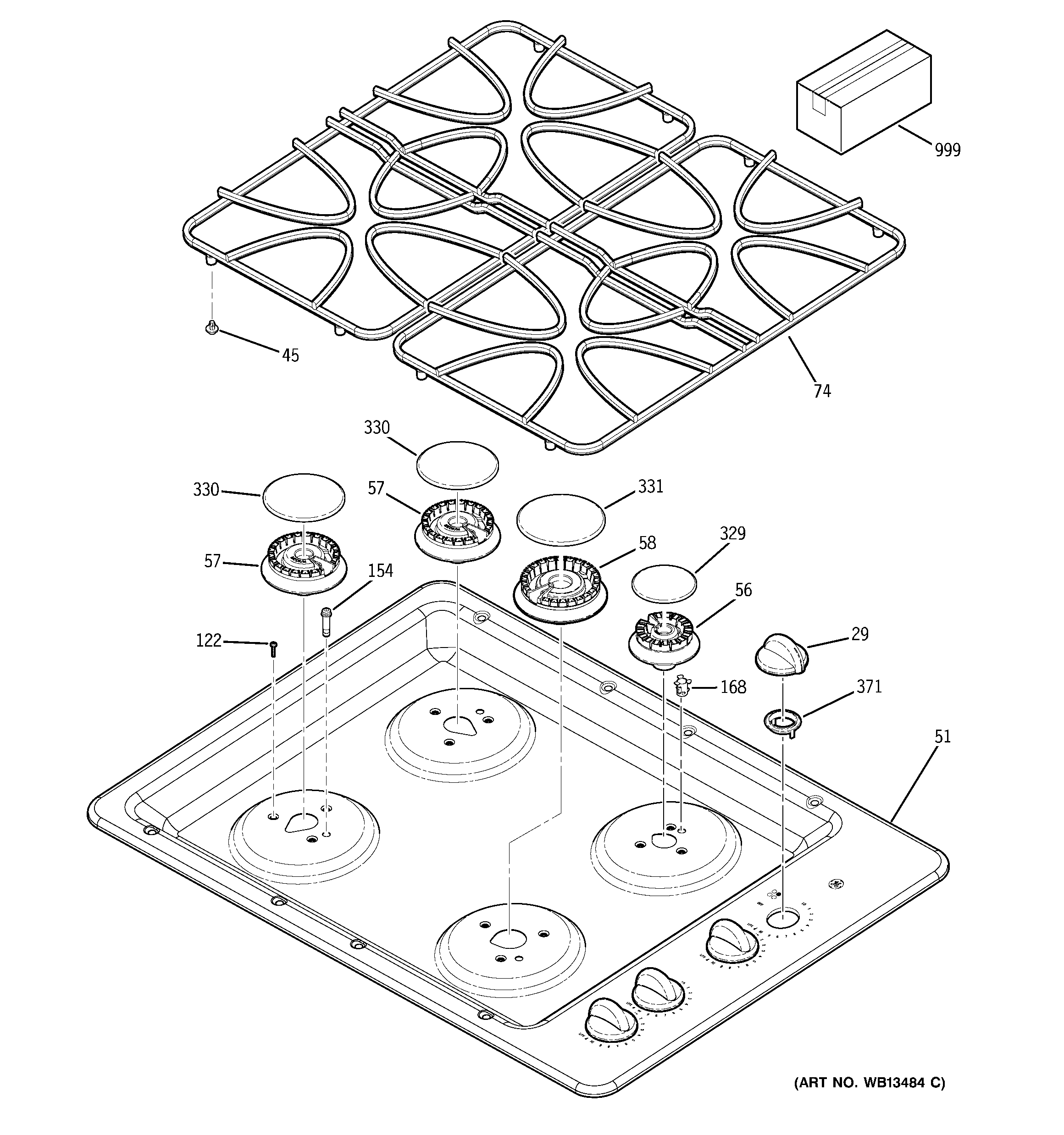

JGP329SET2SS CONTROL PANEL & COOKTOP

JGP329SET2SS CONTROL PANEL & COOKTOP

Written by

in

JGP329SET2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10325 GE Oven Burner Knob Chrome
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10366
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
58BURNER 12K
74WB31T10105 GE Oven Grate Assembly
122SCREW 6-32 5/8 OVAL PHILLIPS
154GEN WB13K10014
168WB01K10114 GE Oven Electrode Clip
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10023 GE Oven Burner Cap Assembly
331WB29K10024 GE Burner Cap Oven
371WB04T10042 GE Oven Black Control Seal
999WB18T10407 GE Oven Burner Wire Harness
999GEN 49-80660
999GEN 31-10860
999GEN 31-10833
999GEN 31-10714
999WB28T10234 GE Oven Conversion Kit Butane
