JGP329SET2SS GAS & BURNER PARTS

JGP329SET2SS GAS & BURNER PARTS

Written by

in

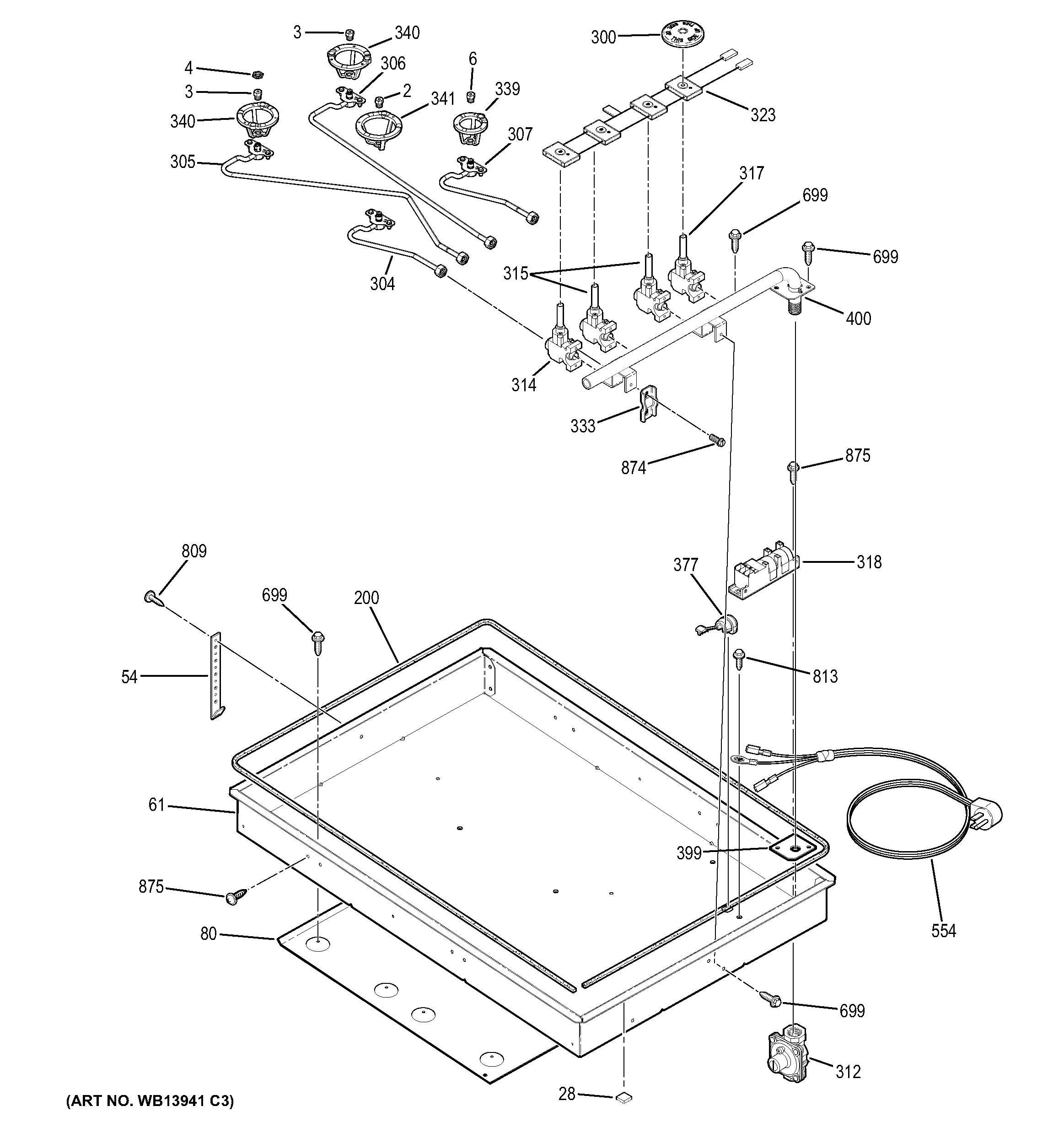

JGP329SET2SS GAS & BURNER PARTS

Products

PositionProduct
2WB28K10214 GE Oven Orifice
3WB28K10215 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
6WB28K10031 GE Oven Orifice
28WB02T10244 GE Oven Felt Pad
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10059
80SHIELD BURN BOX BTM
200GEN WB06T10009
300WB02X21824 GE Cooktop Splash Guard Switch
304WB28X22722 GE Oven Right Tube Burner Assembly
305WB28T10227 GE Range Surface Burner Valve
306WB28T10132 GE Oven Tube Assembly Left Rear
307GEN WB28T10220
312REGULATOR CONVERT PRESS
314GEN WB19T10054
315WB21X22078 GE Oven Valve Kit
317VALVE GAS LR
318SPARK MODULE
323WB18X22721 GE Oven Switch Harness Assembly
333VALVE CLAMP
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400WB28T10099 GE 30 Manifold Pipe
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
874WZ4X44D GE Screw Package
875WH2X930 GE Screw
