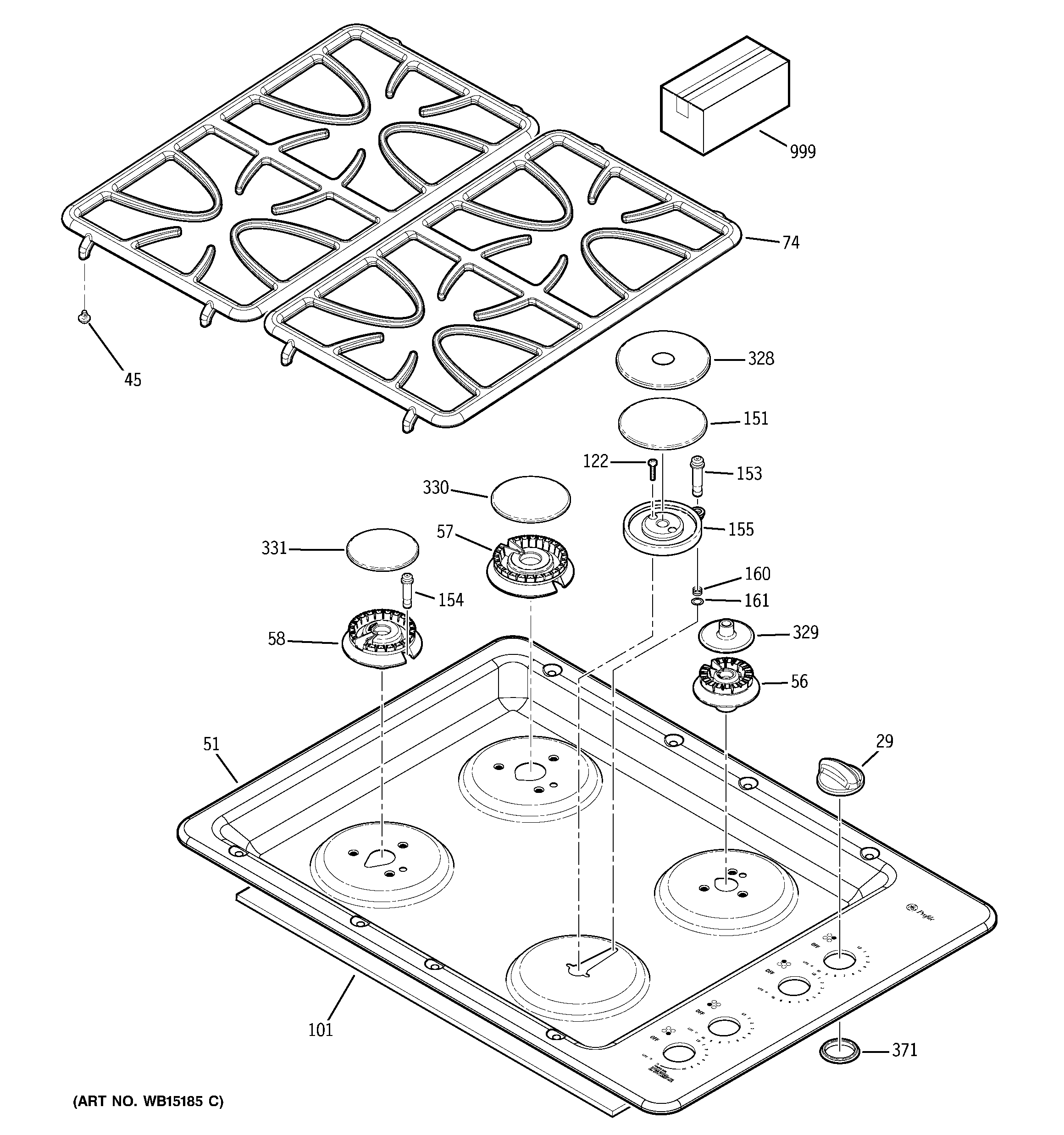

JGP333DET1BB CONTROL PANEL & COOKTOP

Products

Position	Product
29	WB03T10322 GE Oven Black Knob
29	WB03T10324 GE Oven Knob
45	WB02T10461 GE Oven Range Grate Foot
51	GEN WB62T10847
51	MAINTOP ASM (GE-WH)
56	WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57	BURNER 12K
58	WB16K10055 GE Oven Burner Base
74	WB31T10154 GE Oven Grate Assembly
101	WB35T10051 GE Side Insulation
101	WB35T10159 GE Insulation Side
122	SCREW 6-32 5/8 OVAL PHILLIPS
151	WB16T10038 GE Oven Main Head Burner
153	ELECTRODE TOP
154	GEN WB13K10014
154	WB13X27058 GE Igniter
155	WB16T10047 GE Range Burner 18K-Simmer Base
160	WB09T10011 GE Oven Spring Igniter
161	WB02T10323 GE Oven Igniter Washer
328	WB29X43469 GE Burner Cap 18K
329	WB29K10022 GE Oven Burner Cap Assembly
329	WB29K10002 GE Range Oven Cooktop Small Burner Cap
330	WB29K10004 GE Oven Gray Burner Cap
330	WB29K10024 GE Burner Cap Oven
331	WB29K10023 GE Oven Burner Cap Assembly
331	WB29K10007 GE Oven Burner Cap, Left
371	WB04T10042 GE Oven Black Control Seal
371	WB04T10040 GE Oven Control Seal White
999	GEN 31-10613
999	GEN 31-14253
999	GEN 31-10714
999	GEN 49-80587
999	WB28T10283 GE Oven High Altitude & Butane Kit
999	WB18T10407 GE Oven Burner Wire Harness
999	GEN 31-10600
