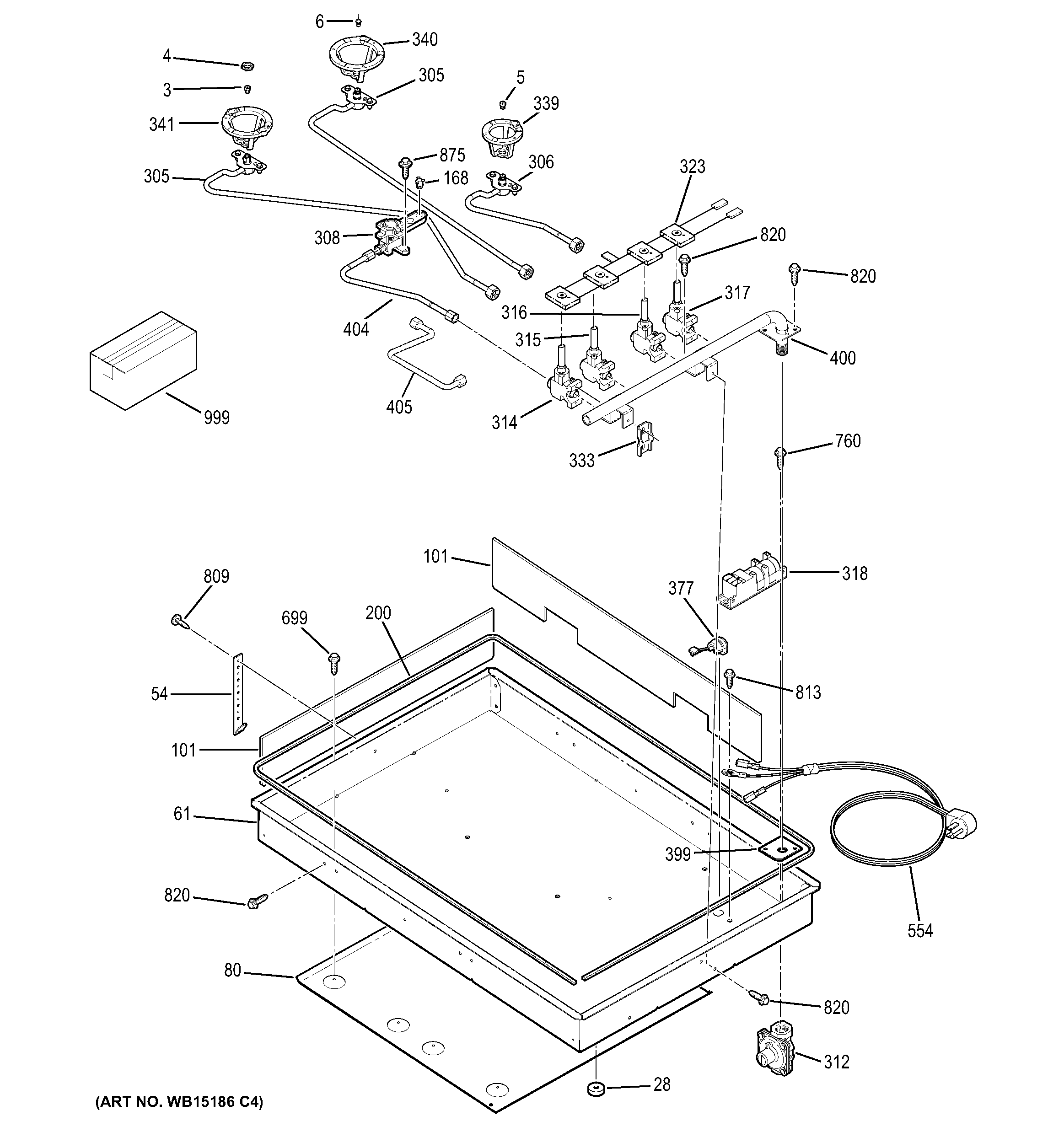

JGP333SET1SS GAS & BURNER PARTS

JGP333SET1SS GAS & BURNER PARTS

Written by

in

JGP333SET1SS GAS & BURNER PARTS

Products

PositionProduct
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28K10107 GE Oven Orifice Spud
3WB28K10215 GE Oven Orifice
3WB28T10147 GE Oven LP Main High Alt Orifice
4WB01K10037 GE Oven Economic Nut
5WB28K10214 GE Oven Orifice
5WB28T10116 GE Oven Orifice Spud Natural Gas Simmer
5WB28K10433 GE Oven Main Orifice Spud (NG)
6WB28K10031 GE Oven Orifice
28BUMPER
54WB2K5328 GE Oven Hold Down Bracket
61BOTTOM BURN BOX
80SHIELD BURN BOX BTM
101WB35T10051 GE Side Insulation
101WB35T10159 GE Insulation Side
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305WB28T10227 GE Range Surface Burner Valve
305GEN WB28T10220
306GEN WB28T10224
308WB28T10114 GE Oven Injector Burner 18K
312REGULATOR CONVERT PRESS
314VALVE GAS RF
315WB21X22078 GE Oven Valve Kit
316VALVE GAS LR
317GEN WB19T10054
318SPARK MODULE
323WB18T10533 GE Oven Switch Harness Assembly
333WB02T10261 GE Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400WB28T10280 GE 30 Pipe Manifold
404WB28T10112 GE Oven Main Tube Burner
405WB28T10113 GE Oven Burner Tube (Simmer)
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB01T10091 GE Screw
875WH2X930 GE Screw
999GEN 31-10832
999GEN 31-15012
999WB02T10111 GE Cleaner Stainless Steel
999WB28T10283 GE Oven High Altitude & Butane Kit
999GEN 31-10833
999GEN 31-10860
999GEN 49-80660
999WB18T10407 GE Oven Burner Wire Harness
