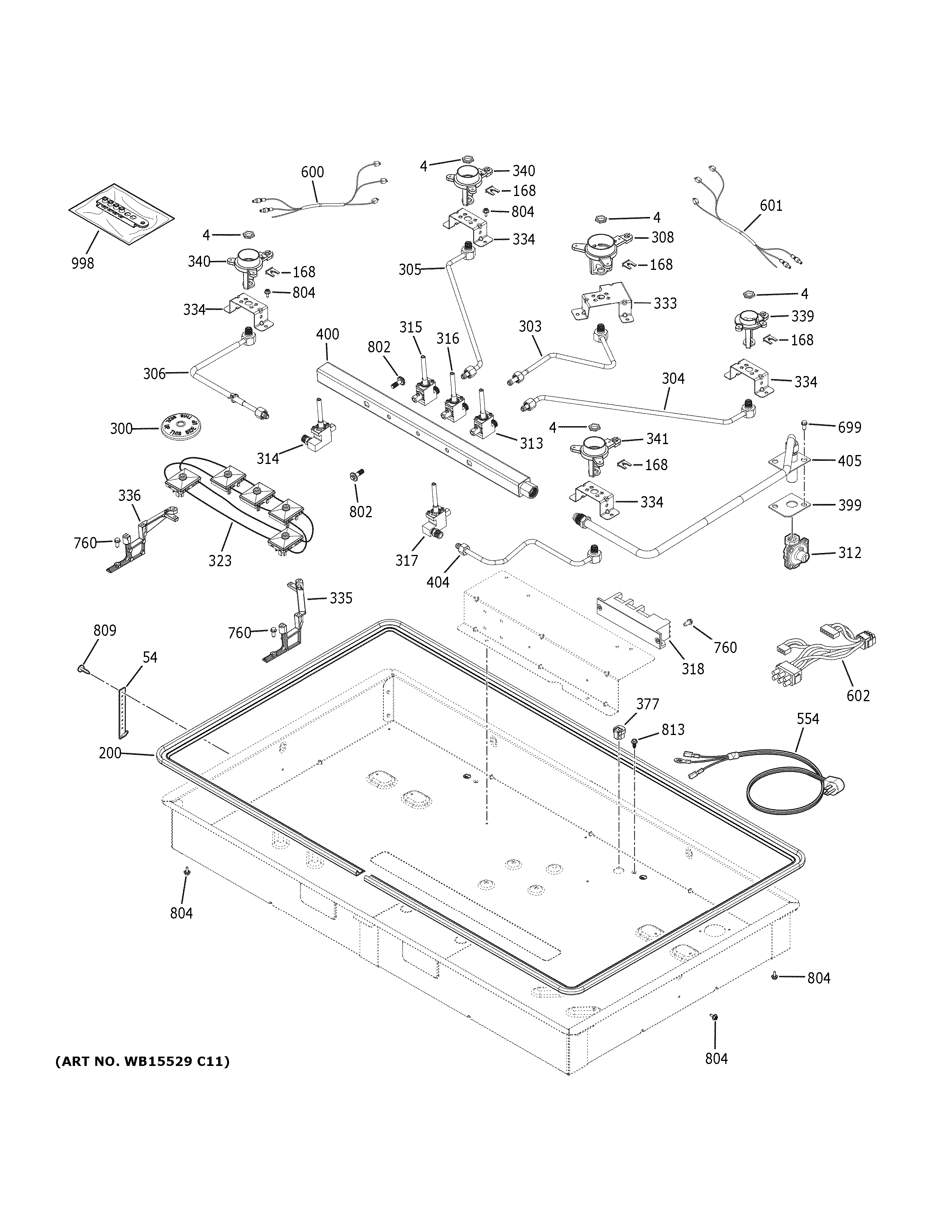

JGP5030SL1SS GAS & BURNER PARTS

JGP5030SL1SS GAS & BURNER PARTS

Written by

in

JGP5030SL1SS GAS & BURNER PARTS

Products

PositionProduct
4WB01K10037 GE Oven Economic Nut
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200WB35X29398 GE Oven Burner Box Gasket
300WB02X21824 GE Cooktop Splash Guard Switch
303GAS TUBE ASM MAIN CTR
304WB28X29423 GE Oven Gas Tube Assembly Right Rear
305WB28X29421 GE Oven Gas Tube Assembly Left Rear
306WB28X29420 GE Oven Left Gas Tube Assembly
308WB02X24725 GE Oven Inlet XLV2
312WB19T10089 GE Oven Pressure Regulator
313WB21X29318 GE Oven Gas Valve Right Rear
314WB21X29321 GE Oven Left Gas Valve
315WB21X29319 GE Oven Left Rear Gas Valve
316WB21X29320 GE Oven Center Gas Valve
317WB21X29425 GE Oven Right Front Gas Valve
318SPARK MODULE KIT
323WB18X33170 GE Switch Harness Assembly
333WB34X29323 GE Bracket Mounting
334WB34X29316 GE Oven Mounting Bracket
335WB34X29311 GE Right Hand Manifold Bracket
336WB34X29312 GE Manifold Bracket, Left Hand
339WB02X24728 GE Range Small Injector
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24726 GE Range Injector Large
377GEN WB02K5275
399WB04T10084 GE Oven Manifold Seal Cooktop
400WB28X29324 GE Manifold Tube and Clamp Assembly
404WB28X29422 GE Oven Gas Tube Assembly Right Front
405WB28X29424 GE Oven Gas Inlet Tube Assembly
554WB18X25912 GE Range Cord
600WB13X29295 GE Igniter and Harness Assembly
601WB13X29294 GE Oven Igniter and Harness Assembly
602HARNESS WIRE POWER
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
802WB01X30011 GE Gasket Screw 1/4-20 HXW 3/4
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
998WB28X29971 GE Oven LP Conversion Kit
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
