JGP5030SL3SS CONTROL PANEL & COOKTOP

JGP5030SL3SS CONTROL PANEL & COOKTOP

Written by

in

JGP5030SL3SS CONTROL PANEL & COOKTOP

Products

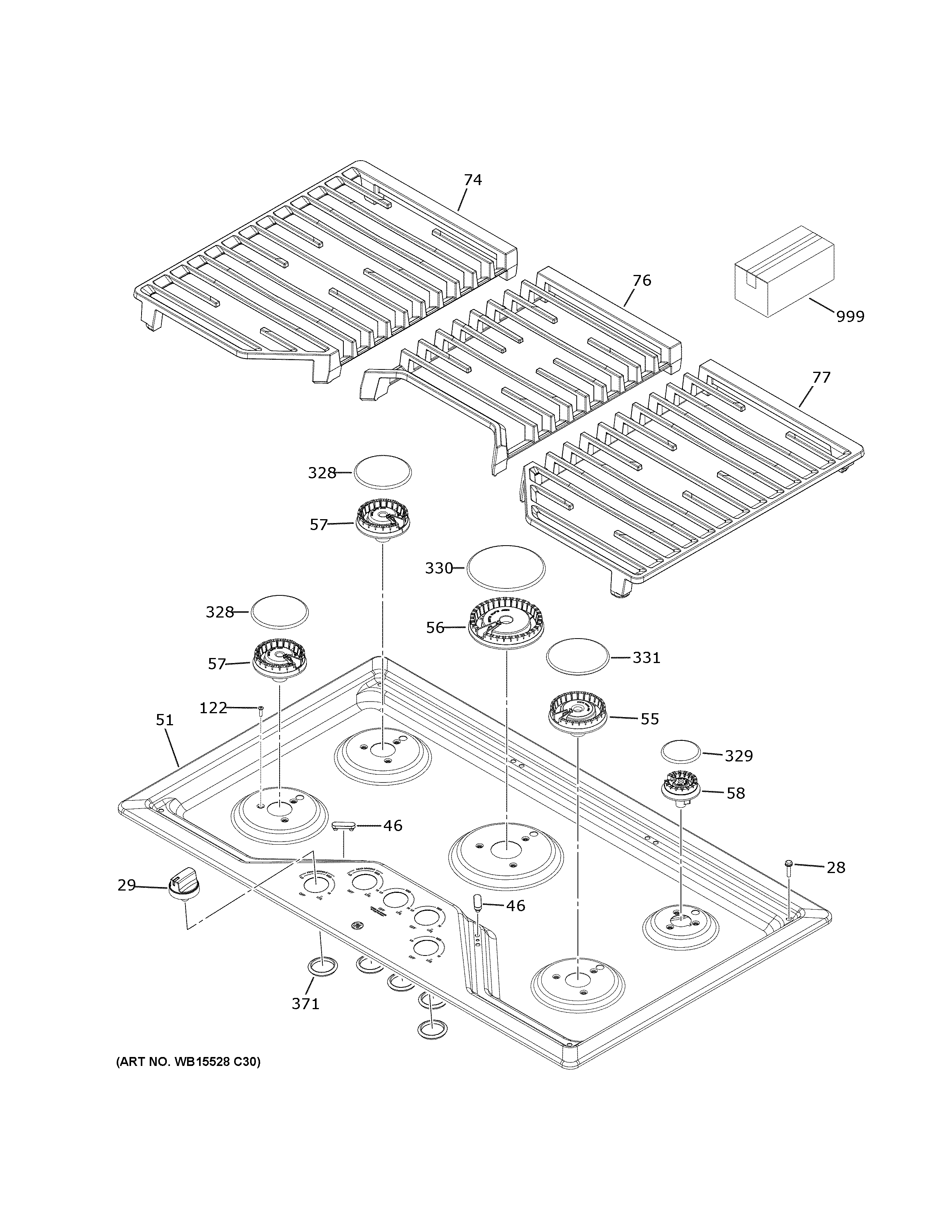

PositionProduct
28BUMPER
29WB03X29315 GE Oven Range Control Knob Stainless Steel
46WB02X30761 GE Oven Bridge Bumper
51WB62X29418 GE Maintop Assembly 30" Stainless Steel
55BURNER LARGE V2
56WB16X24722 GE Oven Gas Range XL Surface Burner
57WB16X24724 GE Oven Medium Burner
58WB16X24721 GE Oven Range Small Cooktop Burner V2
74WB31X29416 GE Left Hand Oven Grate
76WB31X29415 GE Oven Grate Center
77WB31X29417 GE Oven Right Hand Grate
122WB01X30054 GE Screw 6-32 OVT15 1/2"
328WB29K10023 GE Oven Burner Cap Assembly
329WB16X28654 GE Oven Burner Cap Cover
330CAP BURNER ASM (15K)
331WB29K10024 GE Burner Cap Oven
371WB04T10042 GE Oven Black Control Seal
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PRINTED AND ONLINEMINI MANUAL AND WIRING
