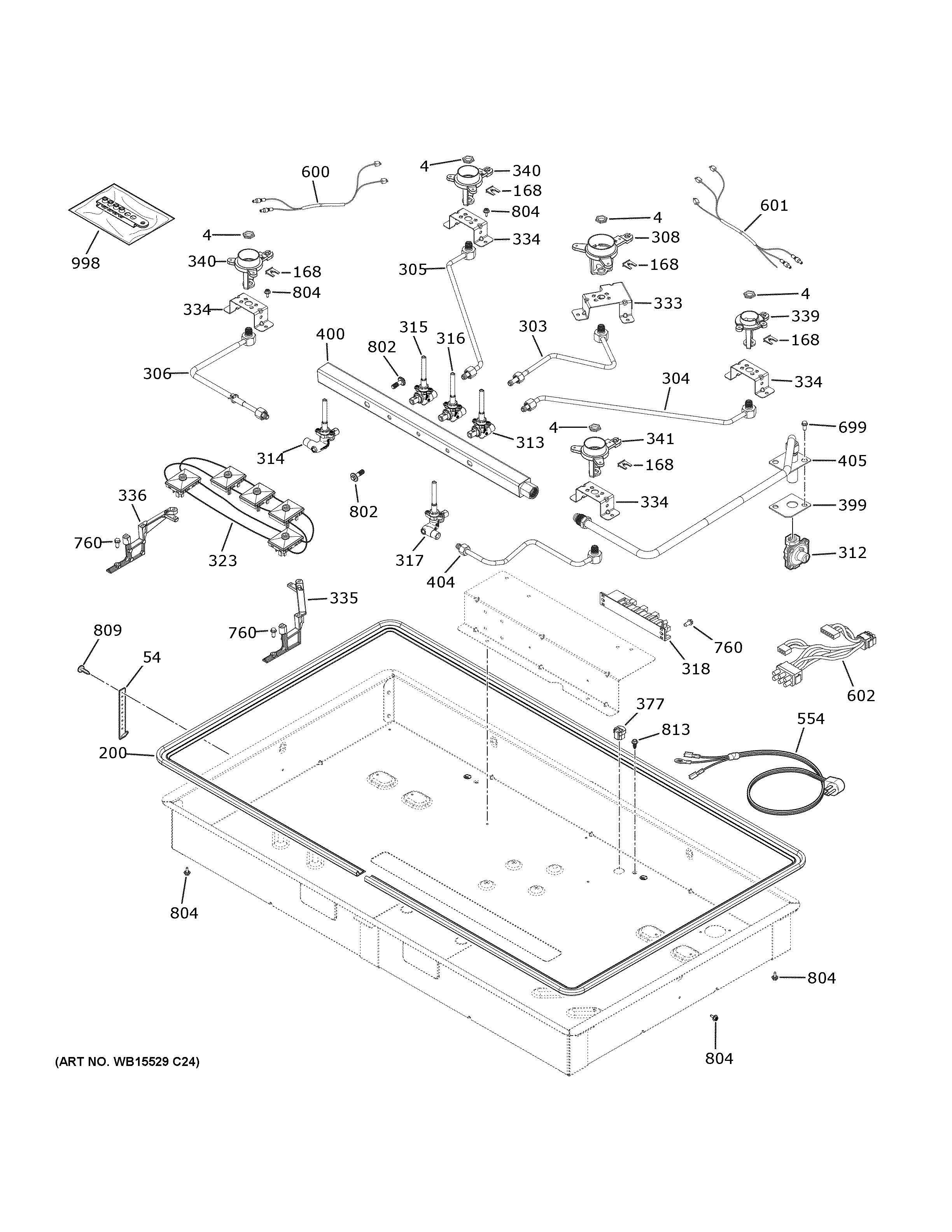

JGP5030SL3SS GAS & BURNER PARTS

JGP5030SL3SS GAS & BURNER PARTS

Written by

in

JGP5030SL3SS GAS & BURNER PARTS

Products

PositionProduct
4WB01K10037 GE Oven Economic Nut
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200WB35X31306 GE Oven Gasket Burner Box
303GAS TUBE ASM MAIN CTR
304WB28X29423 GE Oven Gas Tube Assembly Right Rear
305WB28X29421 GE Oven Gas Tube Assembly Left Rear
306WB28X29420 GE Oven Left Gas Tube Assembly
308WB02X24725 GE Oven Inlet XLV2
312WB19T10089 GE Oven Pressure Regulator
313WB21X46237 GE Gas Valve Rear
314GAS VALVE LF
315GAS VALVE LR
316GAS VALVE CTR
317GAS VALVE RF
318SPARK MODULE
323SWITCH HARNESS ASM
333WB34X29323 GE Bracket Mounting
334WB34X29316 GE Oven Mounting Bracket
335WB34X29311 GE Right Hand Manifold Bracket
336WB34X29312 GE Manifold Bracket, Left Hand
339WB02X24728 GE Range Small Injector
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24726 GE Range Injector Large
377GEN WB02K5275
399SEAL MANIFOLD
400MANIFOLD AND CLAMP ASM
404WB28X29422 GE Oven Gas Tube Assembly Right Front
405INLET GAS TUBE
554WB18X25912 GE Range Cord
600IGNITERS AND HARNESS
601WB13X29294 GE Oven Igniter and Harness Assembly
602HARNESS WIRE POWER
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
802WB01X30011 GE Gasket Screw 1/4-20 HXW 3/4
804WZ4X44D GE Screw Package
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
998WB28X29971 GE Oven LP Conversion Kit
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
