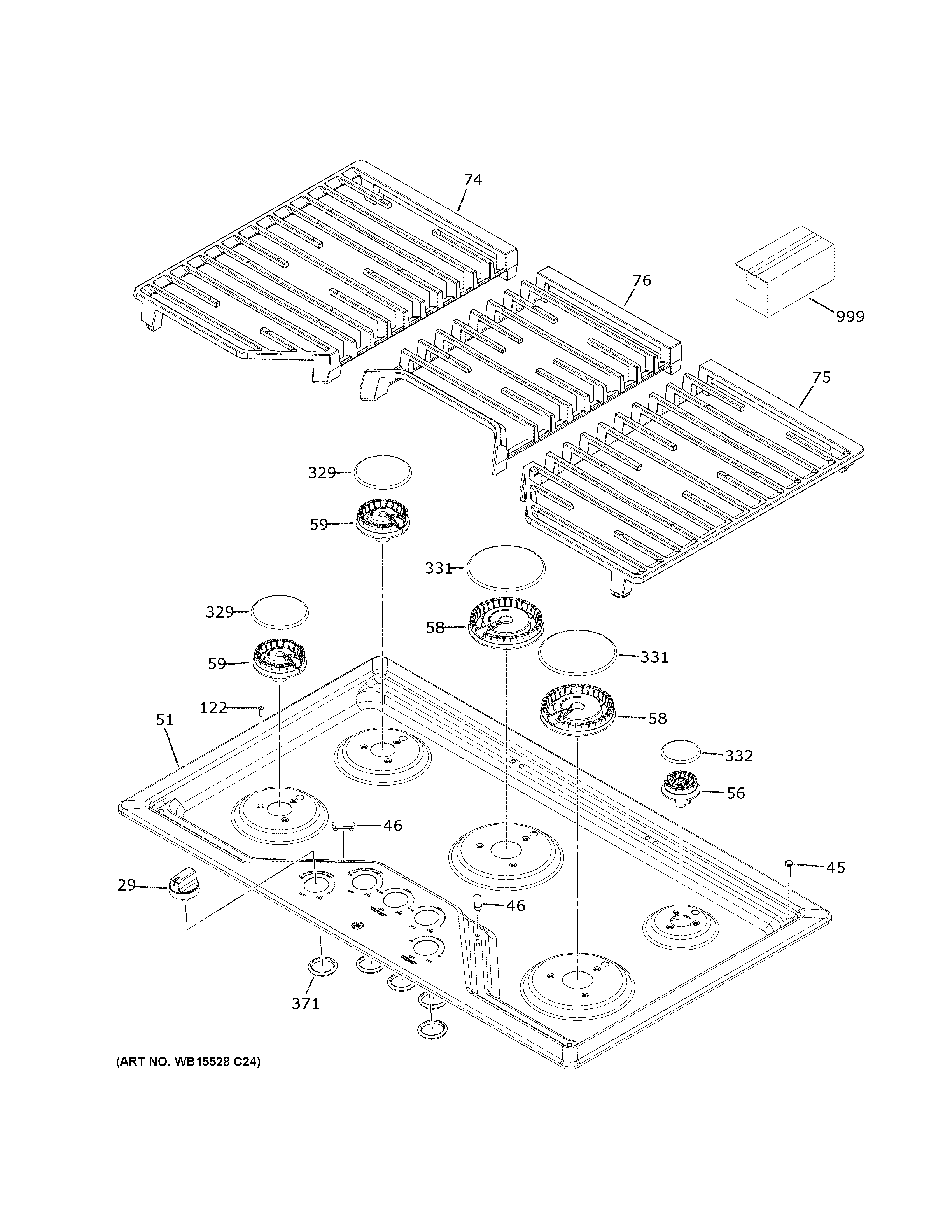

JGP5036SL3SS CONTROL PANEL & COOKTOP

JGP5036SL3SS CONTROL PANEL & COOKTOP

Written by

in

JGP5036SL3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03X29315 GE Oven Range Control Knob Stainless Steel
45BUMPER
46WB02X30761 GE Oven Bridge Bumper
51WB62X29313 GE Oven 36" Stainless Steel Maintop Assembly
56WB16X24721 GE Oven Range Small Cooktop Burner V2
58WB16X24722 GE Oven Gas Range XL Surface Burner
59WB16X24724 GE Oven Medium Burner
74WB31X29309 GE Oven Left Hand Grate
75WB31X29308 GE Oven Right Hand Grate
76WB31X29310 GE Oven Center Grate
122WB01X30054 GE Screw 6-32 OVT15 1/2"
329WB29K10023 GE Oven Burner Cap Assembly
331CAP BURNER ASM (15K)
332WB16X28654 GE Oven Burner Cap Cover
371WB04T10042 GE Oven Black Control Seal
999PM INSTALL INSTRUCTIONS
999PRINTED AND ONLINEMINI MANUAL AND WIRING
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
