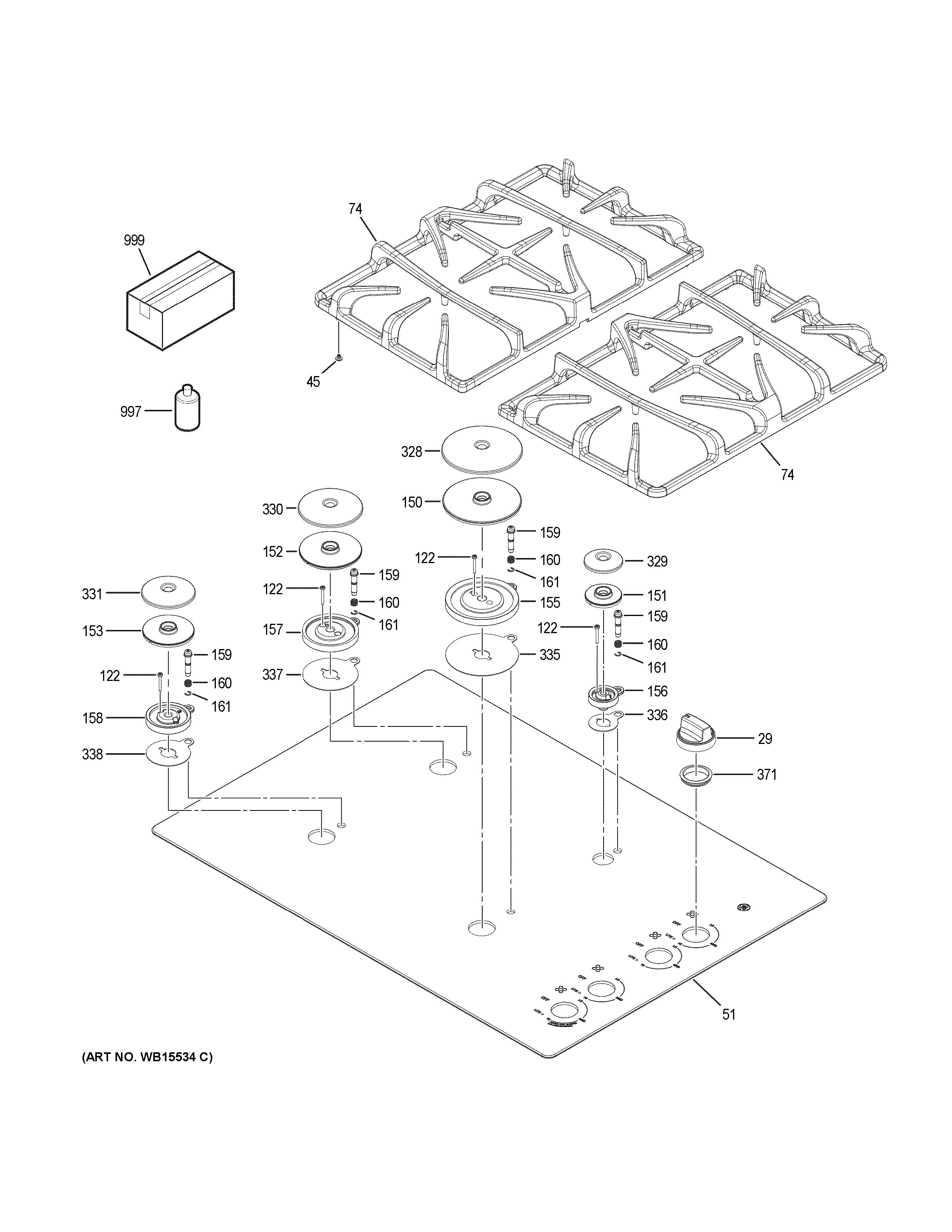

JGP5530DL1BB CONTROL PANEL & COOKTOP

JGP5530DL1BB CONTROL PANEL & COOKTOP

Written by

in

JGP5530DL1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03X29304 GE Oven Knob Assembly
45WB02T10461 GE Oven Range Grate Foot
51WB62X29435 GE 30" Black Glass Maintop Assembly
74WB31T10084 GE Oven Grate Assembly
122WB01T10049 GE Oven Screw
150WB16T10037 GE Oven Head Burner
151WB16T10034 GE Oven Range Surface Burner Cap
152GEN WB16T10036
153GEN WB16T10035
155WB16T10032 GE Oven Front Base Burner
156WB16T10031 GE Oven Small Burner Base
157WB16T10033 GE Oven Large Base Burner
158WB16T10030 GE Oven Medium Base Burner
159WB13X27058 GE Igniter
160WB09T10010 GE Spring
161GEN WB02T10304
328WB13T10063 GE Oven Burner Cap D (BK)
329WB13T10060 GE Oven Burner Cap H (BK)
330WB13T10062 GE Oven Burner Cap C (BK)
331WB13T10061 GE Oven Burner Cap B (BK)
335BURNER GASKET D
336GEN WB16T10011
337WB04T10012 GE Oven Burner Gasket
338GEN WB04T10011
371WB04T10015 GE Oven Control Knob Seal
997PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTALL INSTRUCTIONS
