JGP5530SL1SS GAS & BURNER PARTS

JGP5530SL1SS GAS & BURNER PARTS

Written by

in

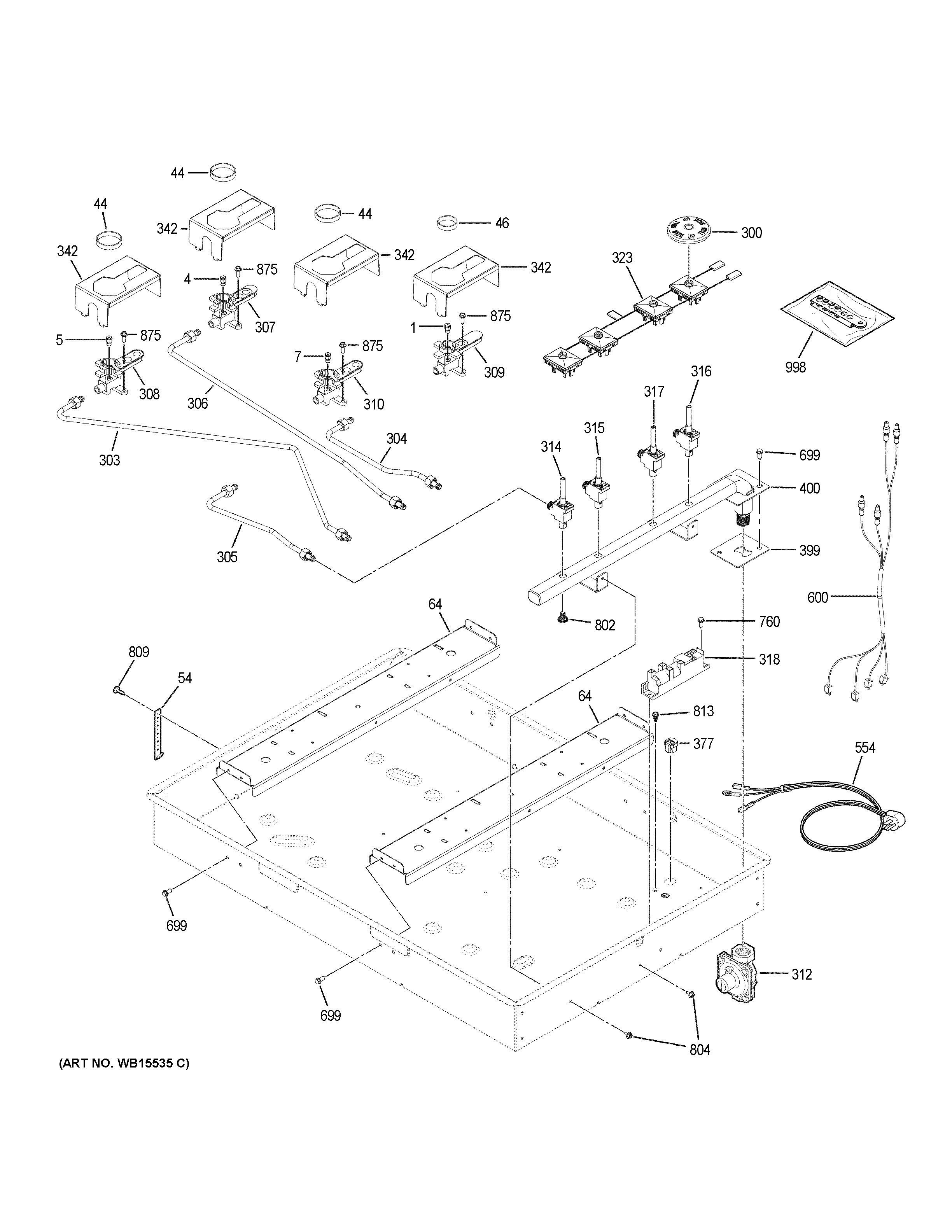

JGP5530SL1SS GAS & BURNER PARTS

Products

PositionProduct
1WB28T10028 GE Oven Orifice Spud Assembly
4WB28T10015 GE Oven Natural Orifice Spud Assembly
5WB28T10014 GE Oven LT Front Orifice Spud
7WB28T10027 GE Oven Orifice Spud Right FR-NG
44WB02T10095 GE Oven Burner Grommet
46GEN WB02T10096
54WB2K5328 GE Oven Hold Down Bracket
64BURNER SUPPORT BRACKET
300WB02X21824 GE Cooktop Splash Guard Switch
303GAS TUBE ASM RF
304GAS TUBE ASM RR
305GAS TUBE ASM LF
306GAS TUBE ASM LR
307WB28X32486 GE Burner Injector Assembly
308WB28X32488 GE Burner Injector Assembly
309BURNER INJET ASM
310WB28X32485 GE Burner Injector Assembly
312REGULATOR CONVERT PRESS
314WB21X29431 GE Gas Valve
315GAS VALVE
316WB21X29433 GE Gas Valve
317GAS VALVE
318SPARK MODULE
323WB18X33167 GE Switch Harness Assembly
342WB02T10102 GE Oven Support Maintop
377GEN WB02K5275
399MANIFOLD SEAL
400WB28X29402 GE Manifold Tube Assembly
554WB18X25912 GE Range Cord
600WB18X25695 GE Oven HV Harness
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
802WB01K10067 GE Oven Screw 1/4" HD 20
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WZ4X245D GE Screw Package
998NG HIGH ALTITUDE CONVERSION KIT
998LP HIGH ALTITUDE CONVERSION KIT
998WB28X29967 GE LP Conversion Kit
