JGP5536DL1BB GAS & BURNER PARTS

JGP5536DL1BB GAS & BURNER PARTS

Written by

in

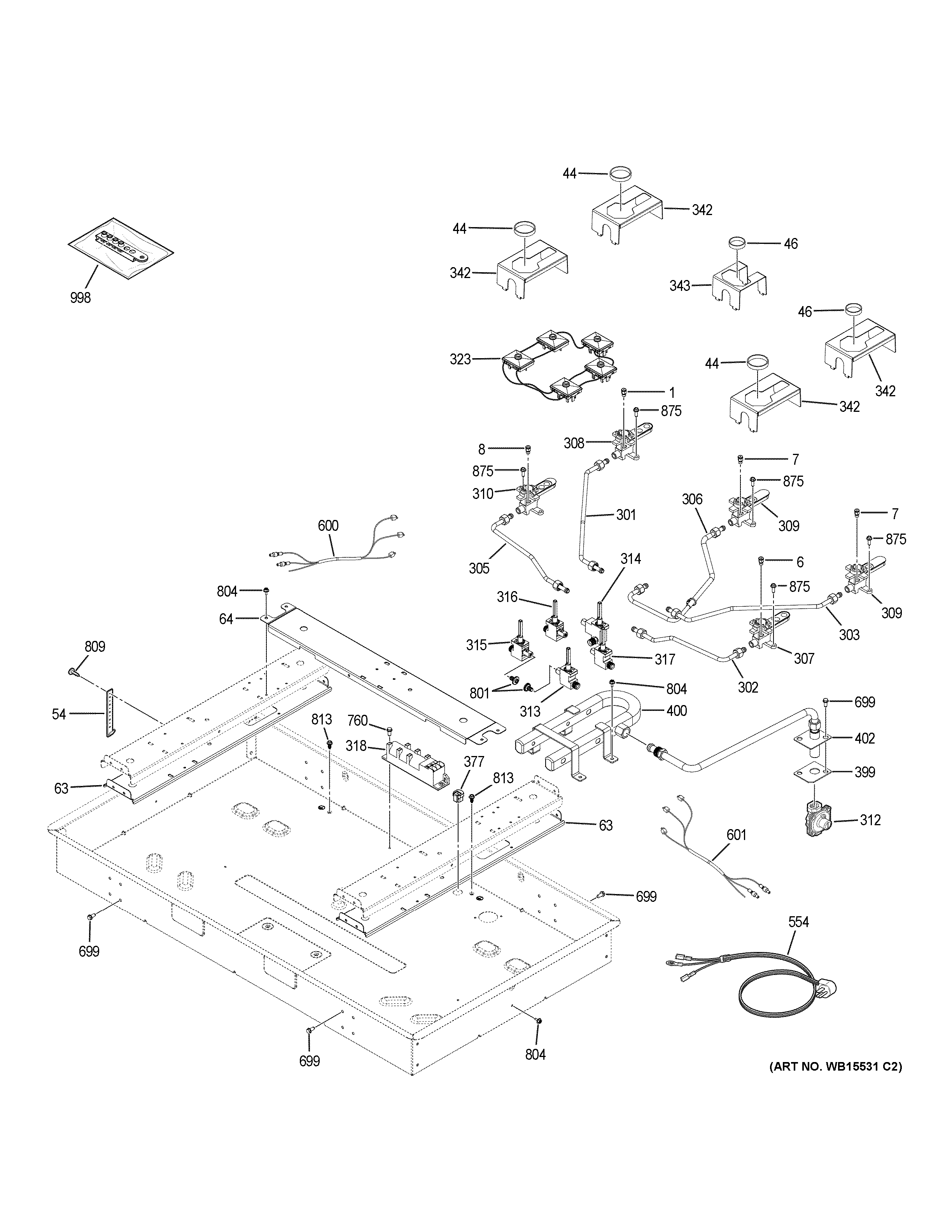

JGP5536DL1BB GAS & BURNER PARTS

Products

PositionProduct
1WB28T10014 GE Oven LT Front Orifice Spud
6WB28T10027 GE Oven Orifice Spud Right FR-NG
7WB28T10028 GE Oven Orifice Spud Assembly
8GEN WB28T10030
44WB02T10095 GE Oven Burner Grommet
46GEN WB02T10096
54WB2K5328 GE Oven Hold Down Bracket
63BRACKET BURN SUPT
64BURNER SUPPORT BRACKET
301WB28X29338 GE Gas Tube Assembly Left Rear
302GAS TUBE ASM RF
303GAS TUBE ASM RR
305GAS TUBE ASM LF
306GAS TUBE ASM MAIN CTR
307WB28X32486 GE Burner Injector Assembly
308WB28X32488 GE Burner Injector Assembly
309BURNER INJET ASM
310WB28X32485 GE Burner Injector Assembly
312REGULATOR CONVERT PRESS
313WB21X29344 GE Gas Valve
314GAS VALVE CTR
315WB21X29341 GE Gas Valve Left
316WB21X29342 GE Left Rear Gas Valve
317WB21X29343 GE Gas Valve Rear
318SPARK MODULE KIT
323WB18X33168 GE Switch Harness Assembly
342WB02T10102 GE Oven Support Maintop
343WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399MANIFOLD SEAL
400WB28X29293 GE Pipe Manifold
402INLET GAS TUBE ASM
554WB18X25912 GE Range Cord
600WB18X29348 GE Igniter and Harness Assembly
601WB18X29347 GE Igniter and Harness Assembly
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
801WB01K10067 GE Oven Screw 1/4" HD 20
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
875WZ4X245D GE Screw Package
998NG HIGH ALTITUDE CONVERSION KIT
998LP HIGH ALTITUDE CONVERSION KIT
998WB28X29961 GE LP Conversion Kit
