JGP626BEV3BB COOKTOP

JGP626BEV3BB COOKTOP

Written by

in

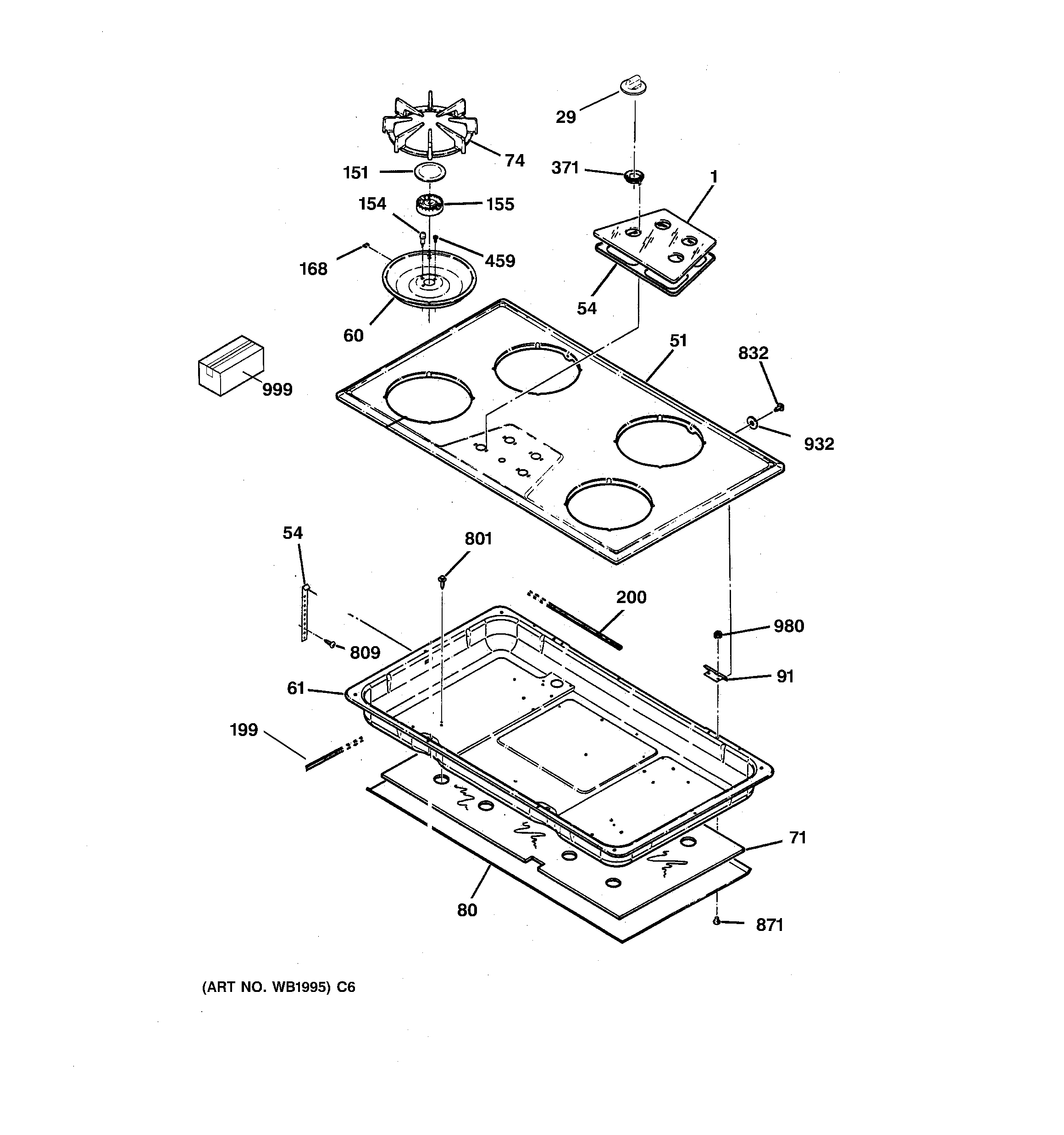

JGP626BEV3BB COOKTOP

Products

Position	Product
1	GEN WB57T10039
29	GEN WB03K5314
51	GEN WB62K5106
54	WB2K5328 GE Oven Hold Down Bracket
60	GEN WB31K5090
60	GEN WB31K5088
61	GEN WB64K5090
71	GEN WB02X9529
74	GEN WB31T10020
80	GEN WB34K5188
91	GEN WB10K5010
151	CAP BURNER MED (BK)
151	CAP BURNER SMALL (BK)
154	WB13K18 GE Oven Electrode
155	BURNER HEAD-MED
155	BURNER HEAD-SM
168	ELECTRODE CLIP
199	GEN WB06T10003
371	WB32K5024
392	BRACKET MODULE (6*0)
459	WB1X537 GE Oven Screw
755	WZ4X44D GE Screw Package
801	WB1M1 GE Oven Screw
809	WB1X1137 GE Oven Screw
832	WB1X1118 GE Oven Screw 6-32T
871	GEN WB01K5122
923	GEN WB14K5022
932	WB1X1421D GE Washer 12 Pack
956	GEN WB02K5326
980	GEN WB01X1129
987	GEN WB01X1311
999	BURNER WIRE HARNESS
999	VALVE SWITCH WIRE HARN.
999	LABEL WIRE DIAG
999	GEN 31-13233
999	GEN 31-10251
999	GEN 49-8878
999	GEN 31-10245
