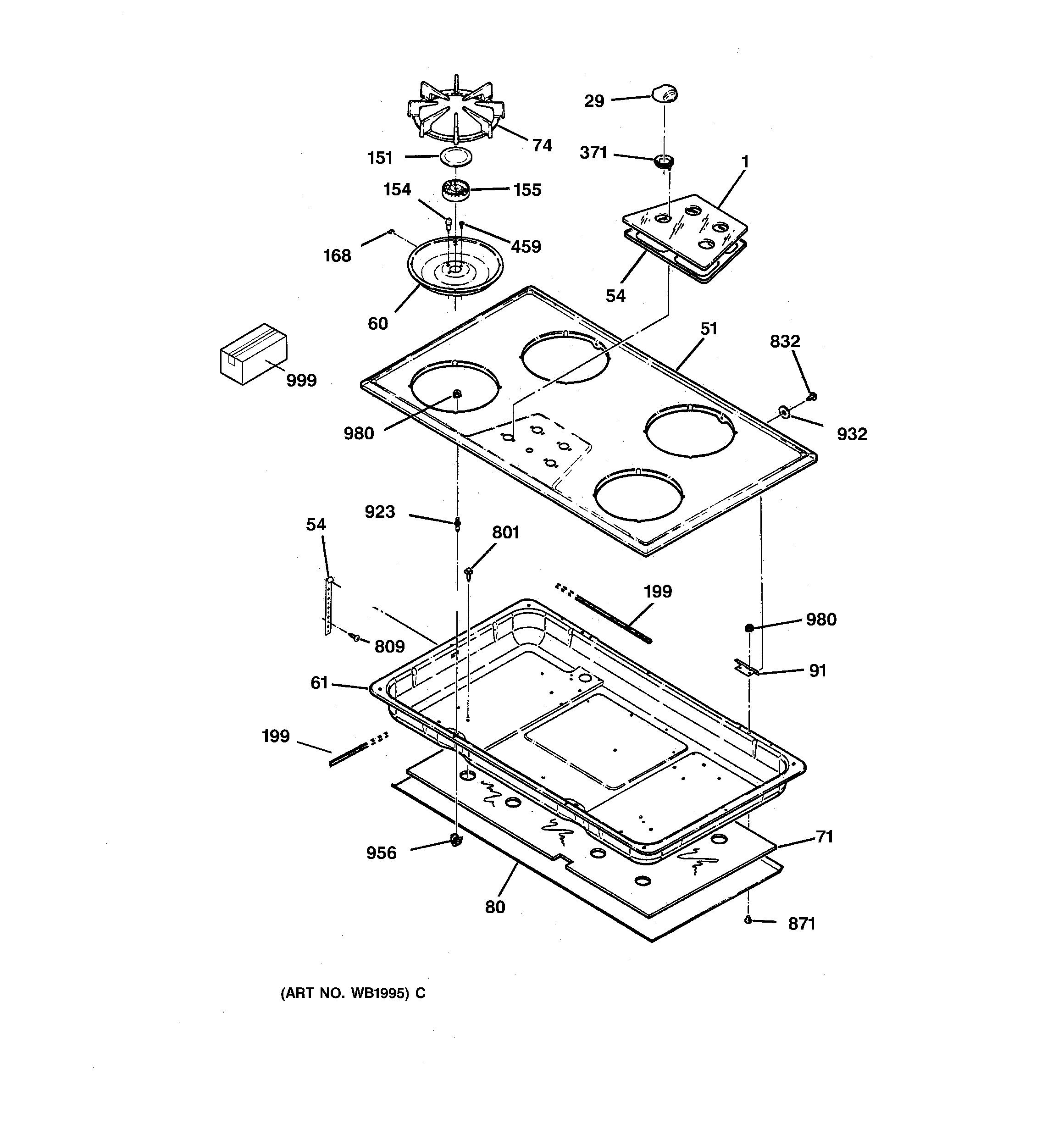

JGP626WEV7WW CONTROLS & COOKTOP

JGP626WEV7WW CONTROLS & COOKTOP

Written by

in

JGP626WEV7WW CONTROLS & COOKTOP

Products

PositionProduct
1GEN WB57T10040
29GEN WB03K5315
51GEN WB62K5104
54WB2K5328 GE Oven Hold Down Bracket
60WB31K5092 GE Oven Burner Bowl
60GEN WB31K5091
61GEN WB64K5090
71GEN WB02X9529
74WB31T10004 GE Oven Burner Grate
80GEN WB34K5188
91GEN WB10K5010
151GEN WB29K0045
151GEN WB29K0042
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
155BURNER HEAD-MED
168ELECTRODE CLIP
199GEN WB06T10003
371GEN WB32K5027
459WB1X537 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
832WB1X1118 GE Oven Screw 6-32T
871GEN WB01K5122
923GEN WB14K5022
932WB1X1421D GE Washer 12 Pack
956GEN WB02K5326
980GEN WB01X1129
999BURNER WIRE HARNESS
999VALVE SWITCH WIRE HARN.
999LABEL WIRE DIAG
999GEN 49-8878
999GEN 31-13233
999GEN 31-10251
999GEN 31-10245
