JGP628SEJ1SS GAS & BURNER PARTS

JGP628SEJ1SS GAS & BURNER PARTS

Written by

in

JGP628SEJ1SS GAS & BURNER PARTS

Products

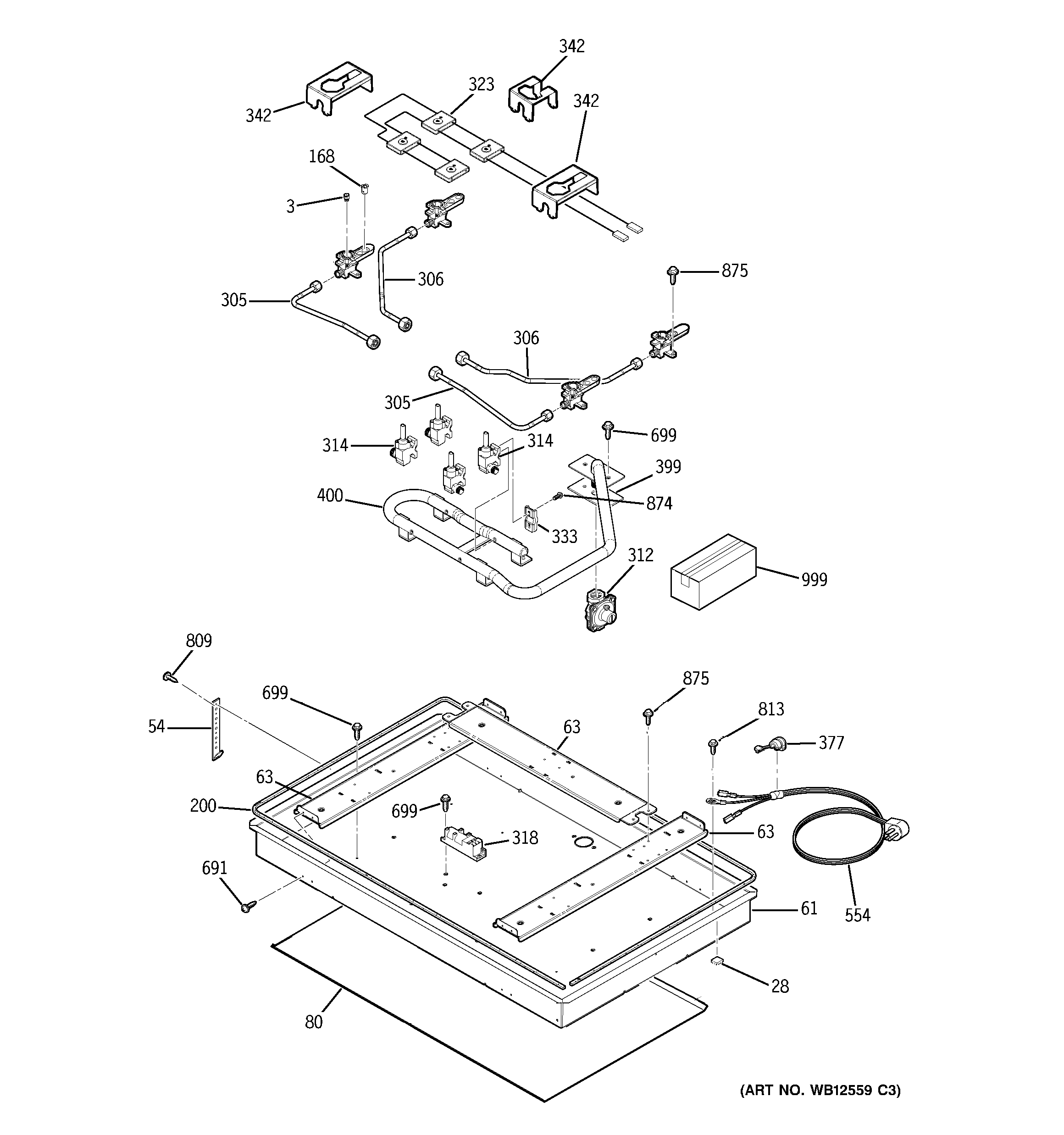

PositionProduct
3WB28T10017 GE Oven Orifice Spud
3WB28K10288 GE Oven Orifice Spud
3WB28T10014 GE Oven LT Front Orifice Spud
3WB28T10028 GE Oven Orifice Spud Assembly
28WB02T10244 GE Oven Felt Pad
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10029
63GEN WB02T10107
63GEN WB02T10106
80GEN WB34T10095
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305WB28T10060 GE Oven Front Left Tube Burner
305WB28T10058 GE Oven Right Front Burner Tube
306WB28T10061 GE Oven Right Rear Tube Burner
306WB28T10059 GE Oven Right Rear Burner Tube
312REGULATOR CONVERT PRESS
314VALVE GAS RT FT
314GEN WB19T10026
314GEN WB19T10025
318SPARK MODULE
323GEN WB18T10340
333WB6X93 GE Oven Clamp
342WB02T10104 GE Oven Maintop Support
342GEN WB02T10131
377GEN WB02K5275
399WB04T10023 GE Manifold Seal
400GEN WB28T10100
554WB08T10015 GE Range Cord
691GEN WB01K5192
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874UNKNOWN
875WH2X930 GE Screw
999GEN 31-13974
999GEN 31-10502
