JGP628WEK1WW BURNER PARTS

JGP628WEK1WW BURNER PARTS

Written by

in

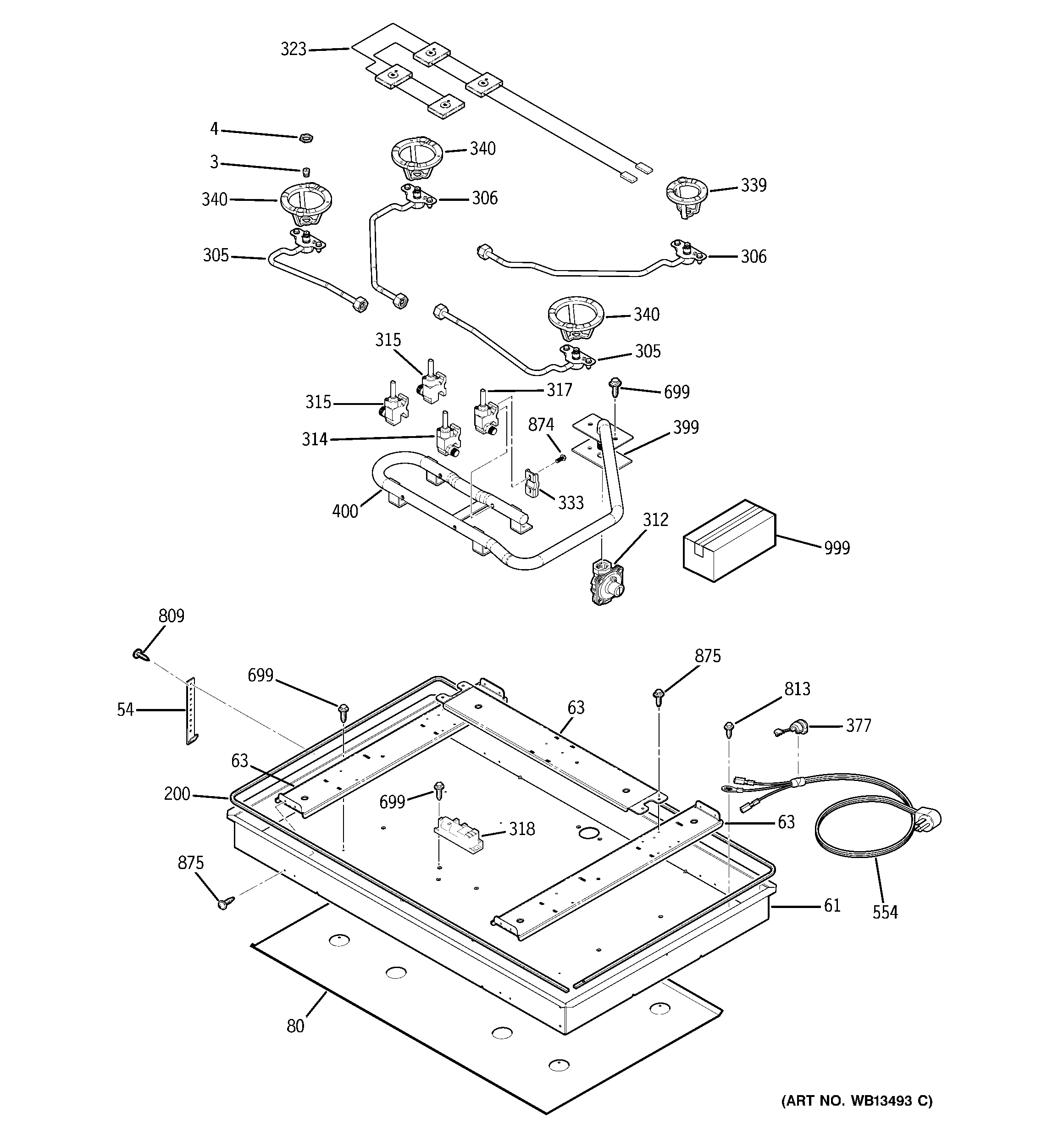

JGP628WEK1WW BURNER PARTS

Products

PositionProduct
3WB28K10031 GE Oven Orifice
3WB28K10215 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10051
63GEN WB02T10259
63GEN WB02T10258
80WB34T10103 GE Oven Burner Box Bottom Shield
200GEN WB06T10009
305GEN WB28T10137
305WB28T10134 GE Oven Front Left Tube Assembly
306WB28T10127 GE Oven Rear Left Tube Assembly
306WB28T10125 GE Oven Rear Right Tube Assembly
312REGULATOR CONVERT PRESS
314GEN WB19T10058
315WB21X22040 GE Oven Valve Kit
317WB21X22051 GE Valve Kit
318SPARK MODULE
323GEN WB18T10340
333WB6X93 GE Oven Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
377GEN WB02K5275
399WB04T10023 GE Manifold Seal
400GEN WB28T10100
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874GEN WB01X1428
875WH2X930 GE Screw
999GEN WB18T10362
999GEN 31-14252
999GEN 31-10612
999GEN 49-80280
999GEN 31-10600
