JGP633DET1CC CONTROL PANEL & COOKTOP

JGP633DET1CC CONTROL PANEL & COOKTOP

Written by

in

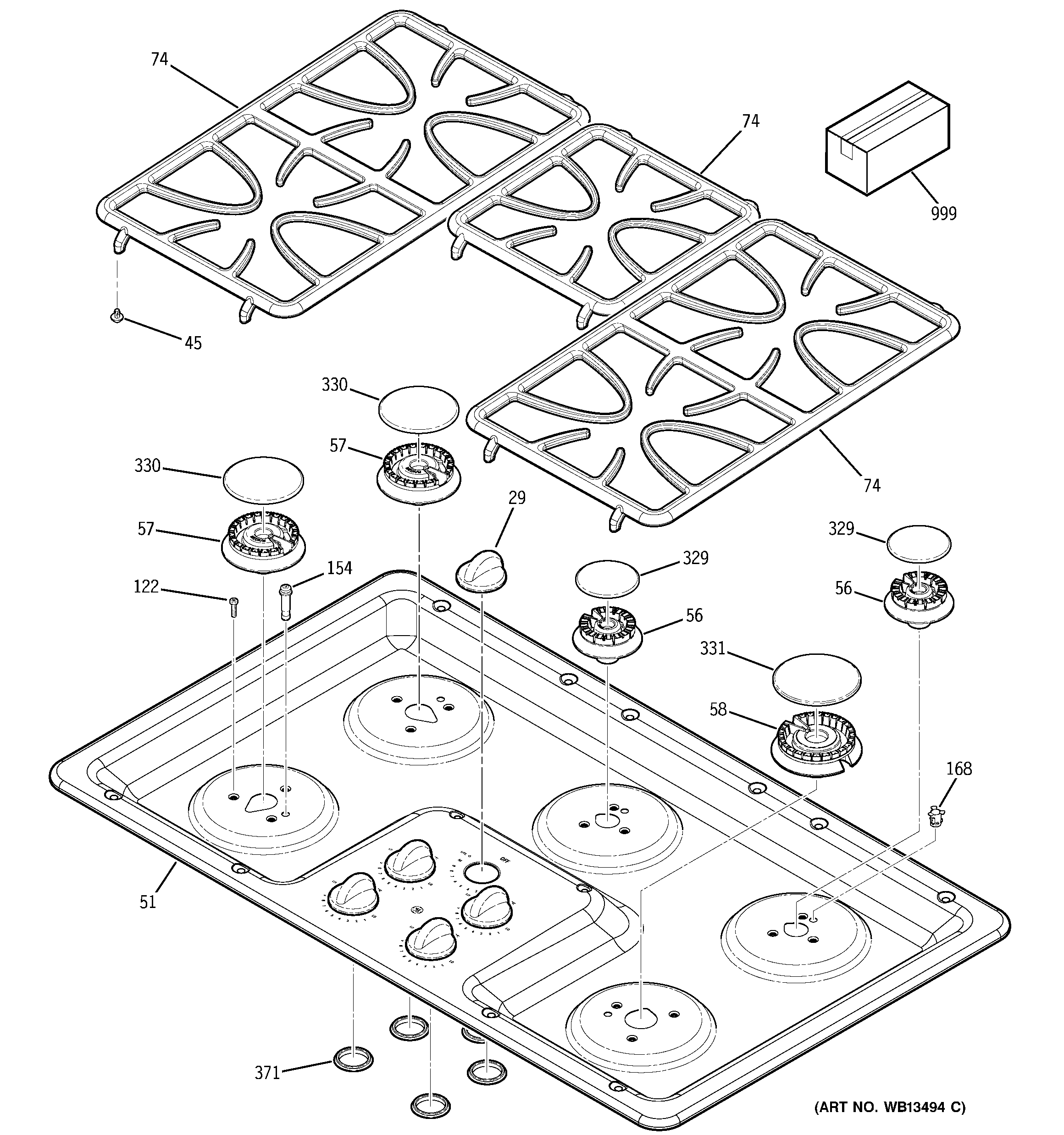

JGP633DET1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10324 GE Oven Knob
29WB03T10322 GE Oven Black Knob
29WB03T10325 GE Oven Burner Knob Chrome
29GEN WB03T10323
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10369
51WB62X25895 GE Cooktop Graphics Assembly
51MAINTOP ASM (GE-SS)
51GEN WB62T10371
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
58BURNER 12K
74WB31T10105 GE Oven Grate Assembly
74WB31T10109 GE Oven Grate Assembly
122SCREW 6-32 5/8 OVAL PHILLIPS
154GEN WB13K10014
168WB01K10112 GE Range Oven Electrode Clip
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10023 GE Oven Burner Cap Assembly
331WB29K10024 GE Burner Cap Oven
371GEN WB04T10041
371WB04T10042 GE Oven Black Control Seal
371WB04T10040 GE Oven Control Seal White
999GEN 31-10600
999WB02T10111 GE Cleaner Stainless Steel
999WB18X25698 GE Oven Burner Wire Harness
999GEN 31-10612
999GEN 31-14248
999GEN 49-80587
999WB28T10235 GE Oven Butane Conversion Kit
