JGP932BEC2BB GAS BURNER

JGP932BEC2BB GAS BURNER

Written by

in

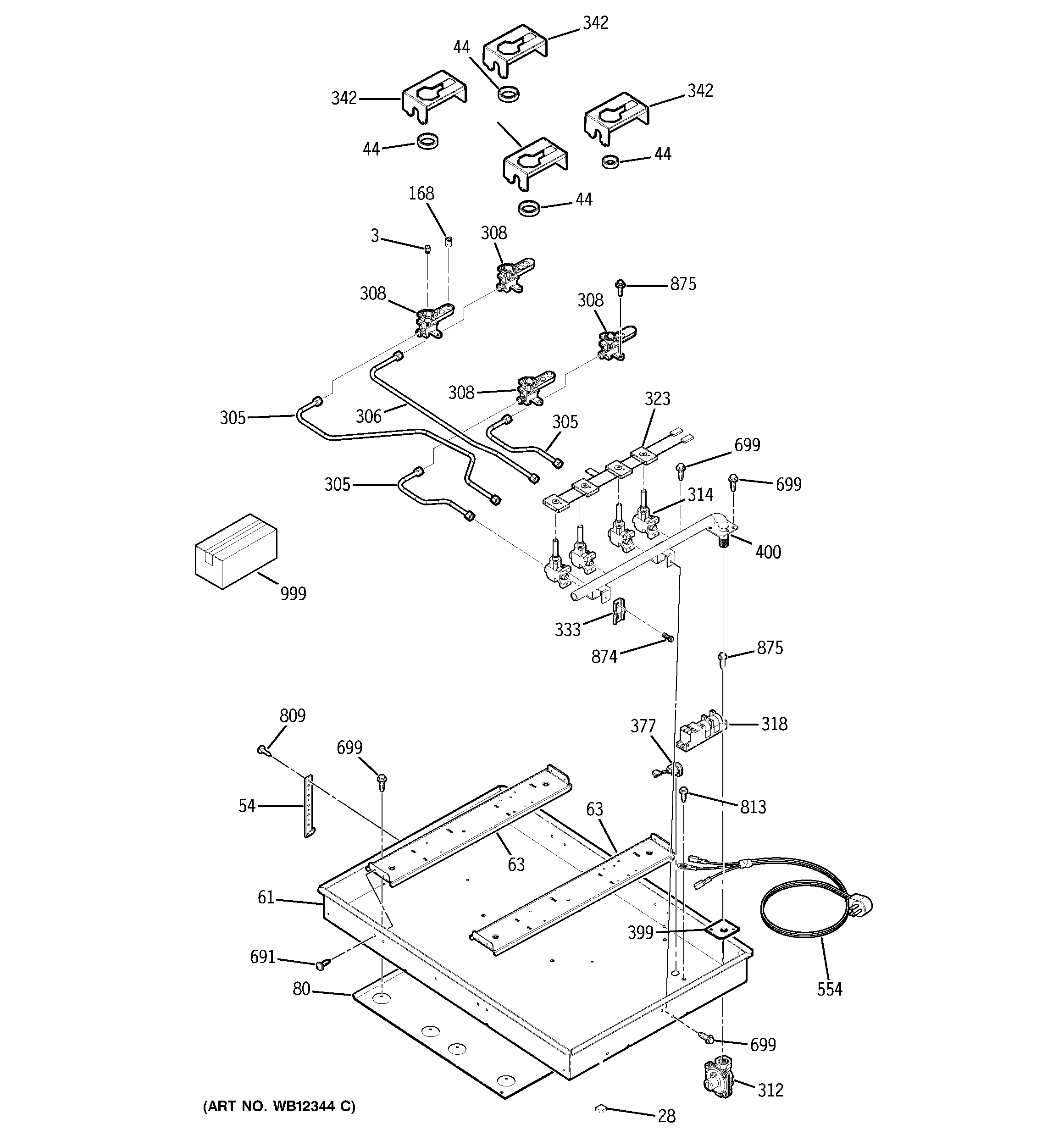

JGP932BEC2BB GAS BURNER

Products

PositionProduct
3WB28T10014 GE Oven LT Front Orifice Spud
3ORIFICE SPUD RT FRT -LP
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10017 GE Oven Orifice Spud
3WB28T10015 GE Oven Natural Orifice Spud Assembly
3WB28T10011 GE Oven Spud Orifice
3WB28K10288 GE Oven Orifice Spud
3WB28T10027 GE Oven Orifice Spud Right FR-NG
28WB02T10244 GE Oven Felt Pad
44GEN WB02T10096
44WB02T10095 GE Oven Burner Grommet
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10033
63WB02T10099 GE Oven Support Bracket
80SHIELD BURN BOX BTTM
168WB01K10112 GE Range Oven Electrode Clip
305WB28T10226 GE Oven Burner Tube Assembly
305BURNER TUBE-LT FT
306BURNER TUBE LT RR
308BURNER INJET LT FRT
308BURNER INJET LT. RR.
308GEN WB28T10029
308BURNER INJET RT FT/LTRR
312REGULATOR CONVERT PRESS
314WB21X31343 GE Oven Gas Valve Kit
314VALVE GAS RT FRT
314VALVE GAS LT FRT
314GEN WB19T10022
318SPARK MODULE
323SWITCH HARNESS
333WB6X93 GE Oven Clamp
342WB02T10102 GE Oven Support Maintop
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400GEN WB28T10071
554GEN WB08K5040
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999USE & CARE MANUAL
999GEN 31-13936
999GEN 31-10491
999GEN 31-10489
999PM10X310 GE Cerama Bryte Cooktop Cleaner
