JGP932TEC1WW BURNER PARTS

JGP932TEC1WW BURNER PARTS

Written by

in

JGP932TEC1WW BURNER PARTS

Products

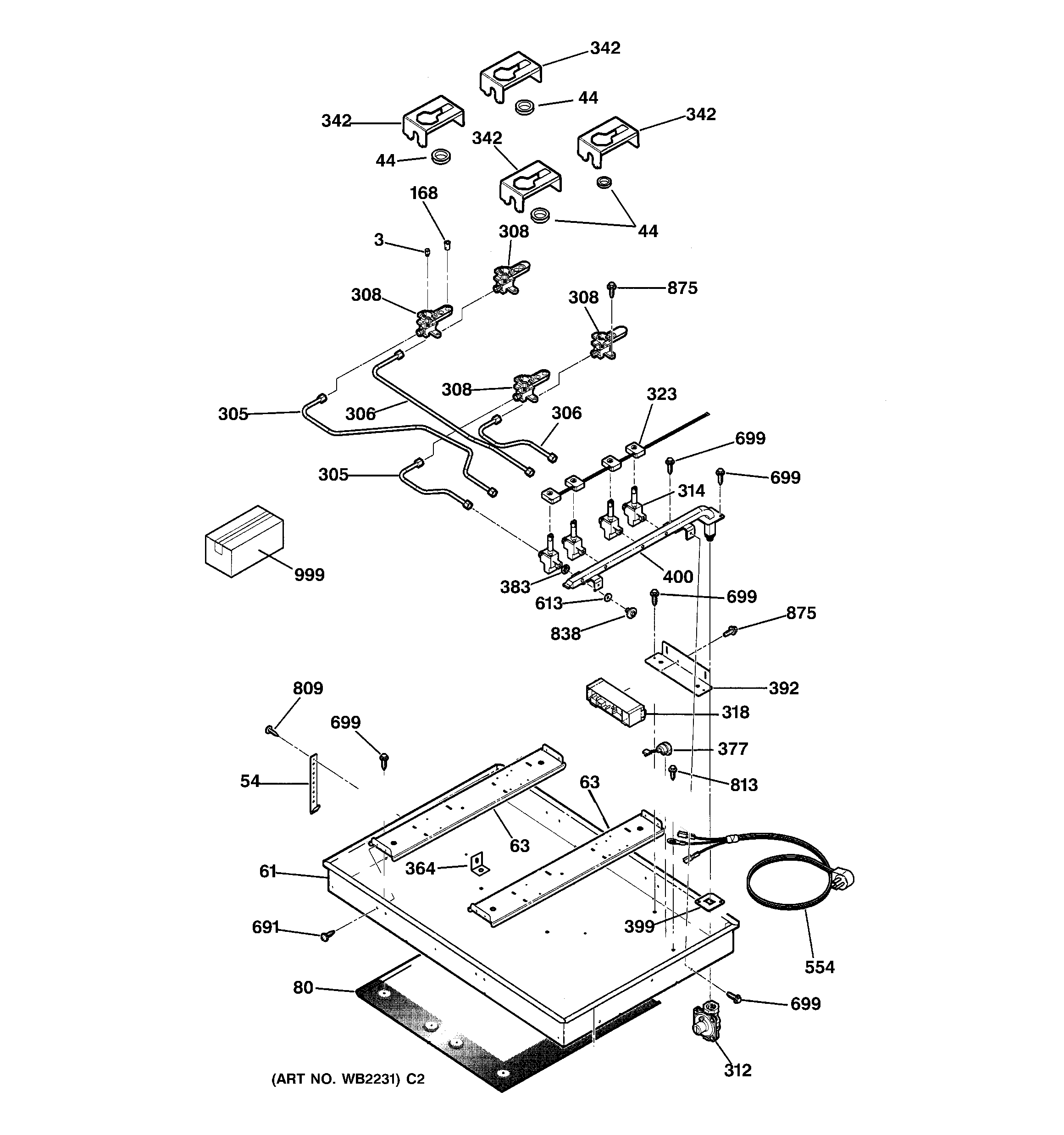

PositionProduct
3ORIFICE SPUD RT FRT -LP
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10017 GE Oven Orifice Spud
3WB28T10015 GE Oven Natural Orifice Spud Assembly
3WB28T10014 GE Oven LT Front Orifice Spud
3WB28T10011 GE Oven Spud Orifice
3WB28K10288 GE Oven Orifice Spud
44WB02T10095 GE Oven Burner Grommet
44GEN WB02T10096
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10026
63GEN WB02T10108
80SHIELD BURN BOX BTTM
168WB01K10112 GE Range Oven Electrode Clip
305GEN WB28T10035
305GEN WB28T10039
306GEN WB28T10040
306BURNER TUBE LT. RR.
308BURNER INJET LT FRT
308GEN WB28T10029
308BURNER INJET LT. RR.
308BURNER INJET RT FT/LTRR
312REGULATOR CONVERT PRESS
314GEN WB19T10014
314GEN WB19T10015
314GEN WB19T10017
314GEN WB19T10016
318GEN WB13K0025
323GEN WB18T10176
342WB02T10102 GE Oven Support Maintop
364WB02T10099 GE Oven Support Bracket
377GEN WB02K5275
383GEN WB04K5003
392GEN WB02T10097
399GEN WB04T10018
400GEN WB28T10034
554GEN WB08K5040
613VALVE SCREW GASKET
691GEN WB01K5192
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
838GEN WB01X1121
875WH2X930 GE Screw
999GEN 31-10443
999INSTALLATION INSTRUCTION
999GEN WB18T10177
999WX10X302 GE Scraper
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999USE & CARE MANUAL
999MINI MANUAL W/ WIRE DIAG
