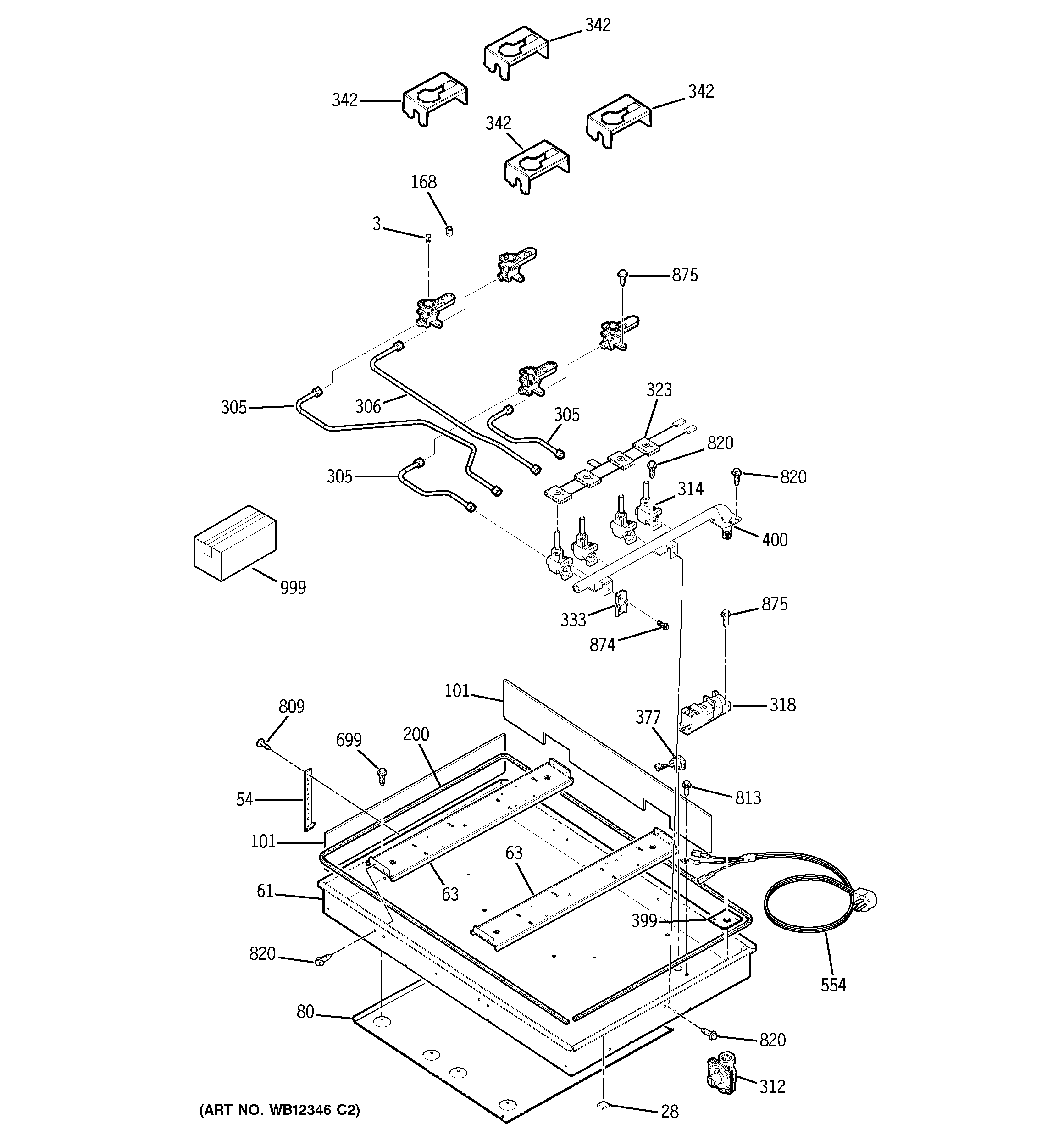

JGP933BEJ1BB GAS & BURNER PARTS

JGP933BEJ1BB GAS & BURNER PARTS

Written by

in

JGP933BEJ1BB GAS & BURNER PARTS

Products

PositionProduct
3WB28T10015 GE Oven Natural Orifice Spud Assembly
3WB28T10014 GE Oven LT Front Orifice Spud
3WB28T10011 GE Oven Spud Orifice
3WB28K10288 GE Oven Orifice Spud
3WB28T10017 GE Oven Orifice Spud
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3ORIFICE SPUD RT FRT -LP
28WB02T10244 GE Oven Felt Pad
54WB2K5328 GE Oven Hold Down Bracket
61BOTTOM BURN BOX
63BURNER BRACKET SUPPORT
80SHIELD BURN BOX BTTM
80GEN WB24T10108
101INSULATION SIDE
101WB35T10051 GE Side Insulation
101GLASS TOP INSULATION
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305WB28T10226 GE Oven Burner Tube Assembly
305BURNER TUBE-LT FT
306BURNER TUBE LT RR
312REGULATOR CONVERT PRESS
314GEN WB19T10022
314VALVE GAS RT FRT
314WB21X31343 GE Oven Gas Valve Kit
314VALVE GAS LT FRT
318SPARK MODULE
323GEN WB18T10339
333WB6X93 GE Oven Clamp
342WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400WB28T10099 GE 30 Manifold Pipe
554GEN WB08K5040
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999GEN 31-10537
999GEN 31-13936
999GEN 31-10491
