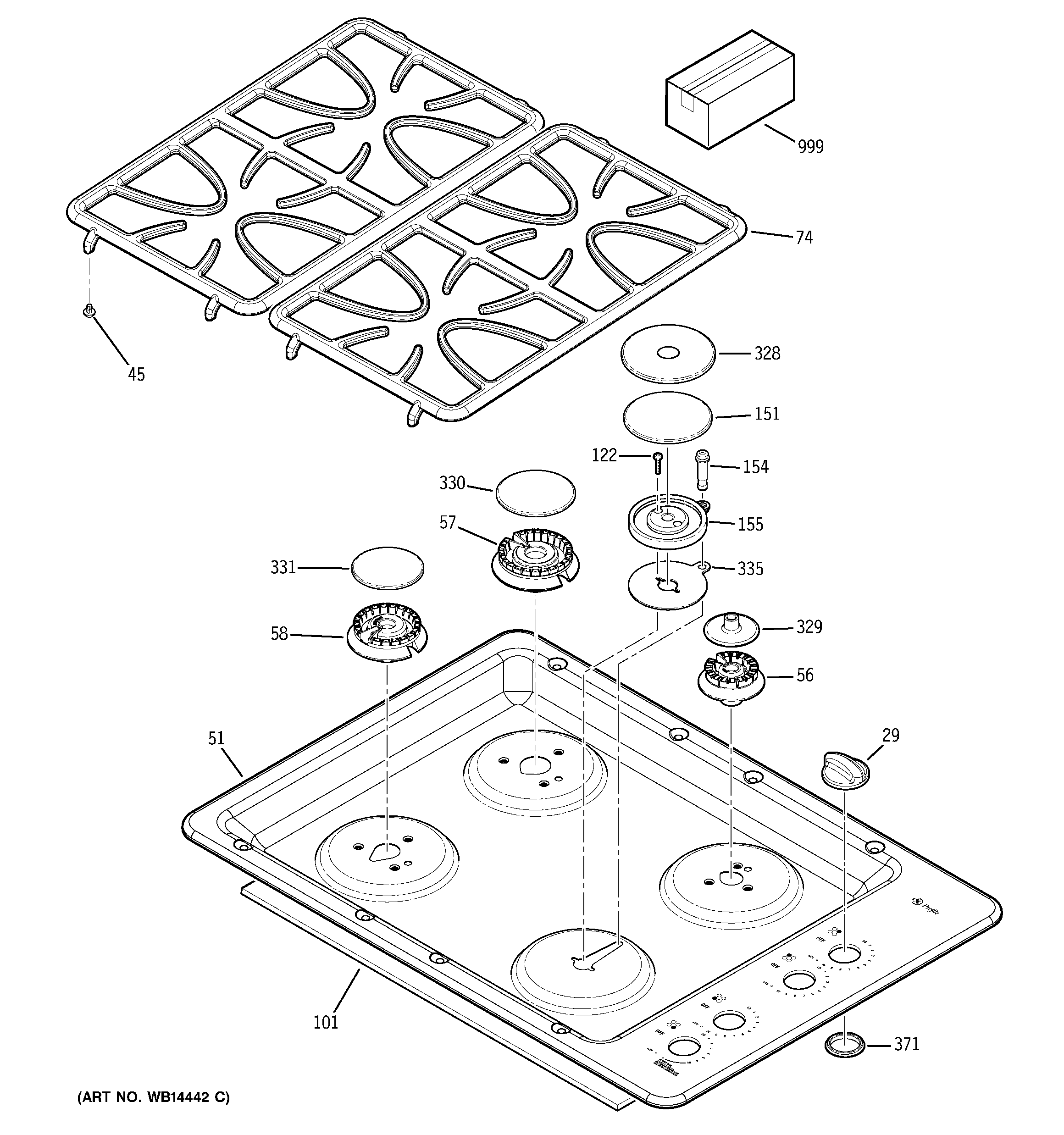

JGP933BEK2BB CONTROL PANEL & COOKTOP

JGP933BEK2BB CONTROL PANEL & COOKTOP

Written by

in

JGP933BEK2BB CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10236 GE Oven Gas Valve Knob (PRF-BK)
29WB03T10242 GE Oven Gas Valve Black Knob
29GEN WB03T10237
29KNOB INFINITE
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10376
51GEN WB62T10377
51GEN WB62T10378
51GEN WB62T10379
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
58BURNER 12K
74GEN WB31T10086
74WB31T10088 GE Oven Grate Assembly
74WB31T10085 GE Oven Grate Assembly
74WB31T10087 GE Oven Grate Assembly
101WB35T10159 GE Insulation Side
101WB35T10051 GE Side Insulation
122WB01T10049 GE Oven Screw
122SCREW 6-32 5/8 OVAL PHILLIPS
151GEN WB16T10041
154WB13X27058 GE Igniter
154GEN WB13K10014
155WB16T10032 GE Oven Front Base Burner
328GEN WB13T10028
328GEN WB13T10031
328GEN WB13T10033
328GEN WB13T10030
329WB29K10002 GE Range Oven Cooktop Small Burner Cap
329WB29K10009 GE Oven Burner Cap
329CAP-BURNER SMALL TAUPE
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10007 GE Oven Burner Cap, Left
330WB29K10006 GE Oven Burner Cap
330WB29K10024 GE Burner Cap Oven
330WB29X36765 GE Large Cap Burner Taupe Rep
331WB29K10004 GE Oven Gray Burner Cap
331WB29K10023 GE Oven Burner Cap Assembly
331WB29K10001 GE Oven Burner Cap
331CAP-BURNER MED TAUPE
335BURNER GASKET D
371GEN WB04T10041
371WB04T10042 GE Oven Black Control Seal
371WB04T10040 GE Oven Control Seal White
999GEN 49-80358
999GEN 31-14253
999GEN 31-10613
999GEN 31-10600
999WB02T10111 GE Cleaner Stainless Steel
999WB18T10407 GE Oven Burner Wire Harness
