JGP933BEK2BB GAS & BURNER PARTS

JGP933BEK2BB GAS & BURNER PARTS

Written by

in

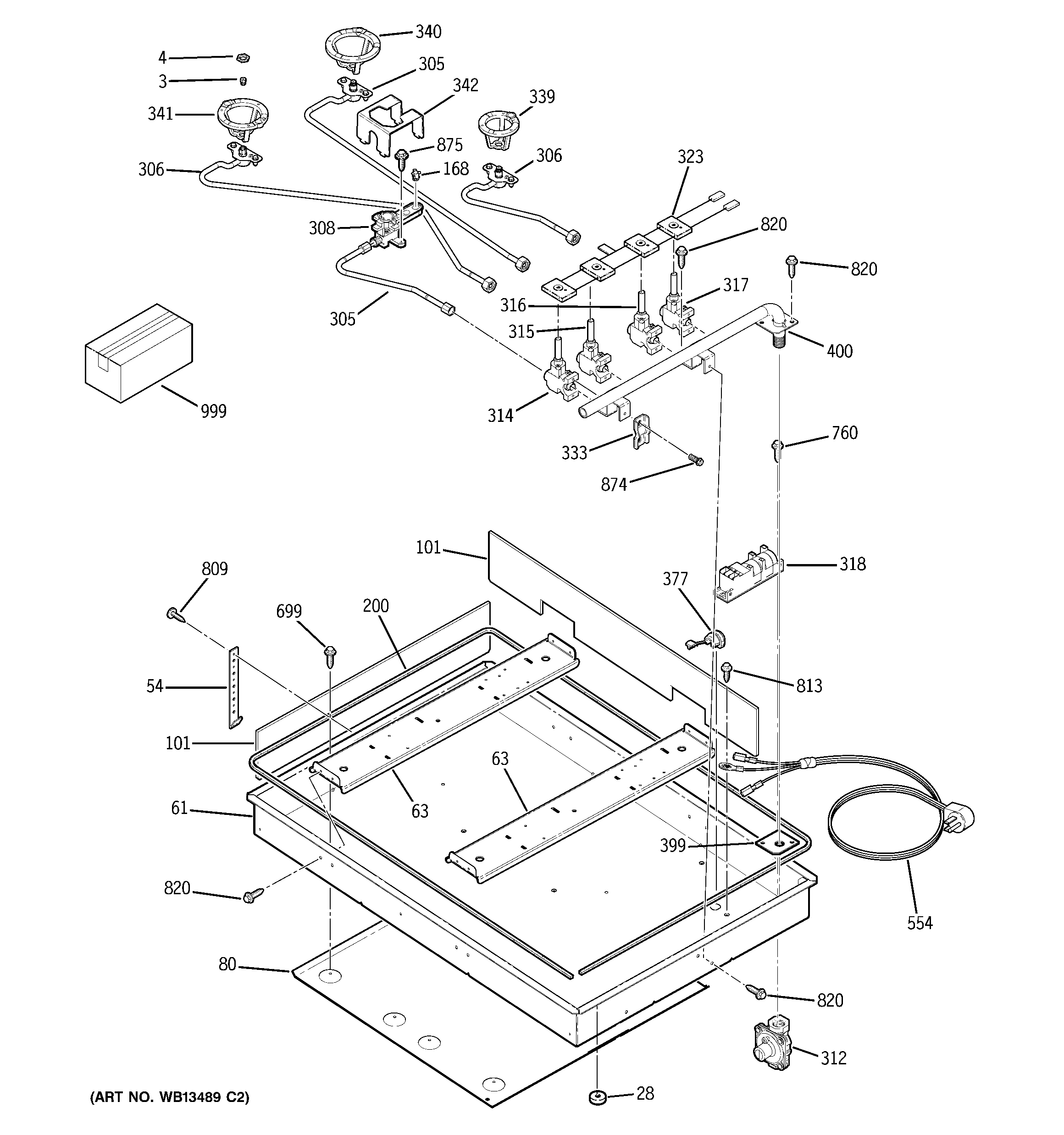

JGP933BEK2BB GAS & BURNER PARTS

Products

PositionProduct
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3GEN WB28K10086
3ORIFICE SPUD RT FRT -LP
3WB28K10214 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10215 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
28WB02X29562 GE Range Top Bumper
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10059
63GEN WB02T10255
63GEN WB02T10263
80SHIELD BURN BOX BTM
101WB35T10159 GE Insulation Side
101WB35T10051 GE Side Insulation
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305WB28T10227 GE Range Surface Burner Valve
305WB28T10226 GE Oven Burner Tube Assembly
306GEN WB28T10108
306GEN WB28T10110
308ORIFICE HOLDER BKT LARGE
312REGULATOR CONVERT PRESS
314VALVE GAS RT FRT
315WB21X22078 GE Oven Valve Kit
316VALVE GAS LR
317GEN WB19T10054
318SPARK MODULE
323GEN WB18T10339
333WB6X93 GE Oven Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
342WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400WB28T10099 GE 30 Manifold Pipe
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999WB18T10407 GE Oven Burner Wire Harness
999WB02T10111 GE Cleaner Stainless Steel
999GEN 49-80358
999GEN 31-14253
999GEN 31-10613
999GEN 31-10600
