JGP933SEF1SS CONTROL PANEL & COOKTOP

JGP933SEF1SS CONTROL PANEL & COOKTOP

Written by

in

JGP933SEF1SS CONTROL PANEL & COOKTOP

Products

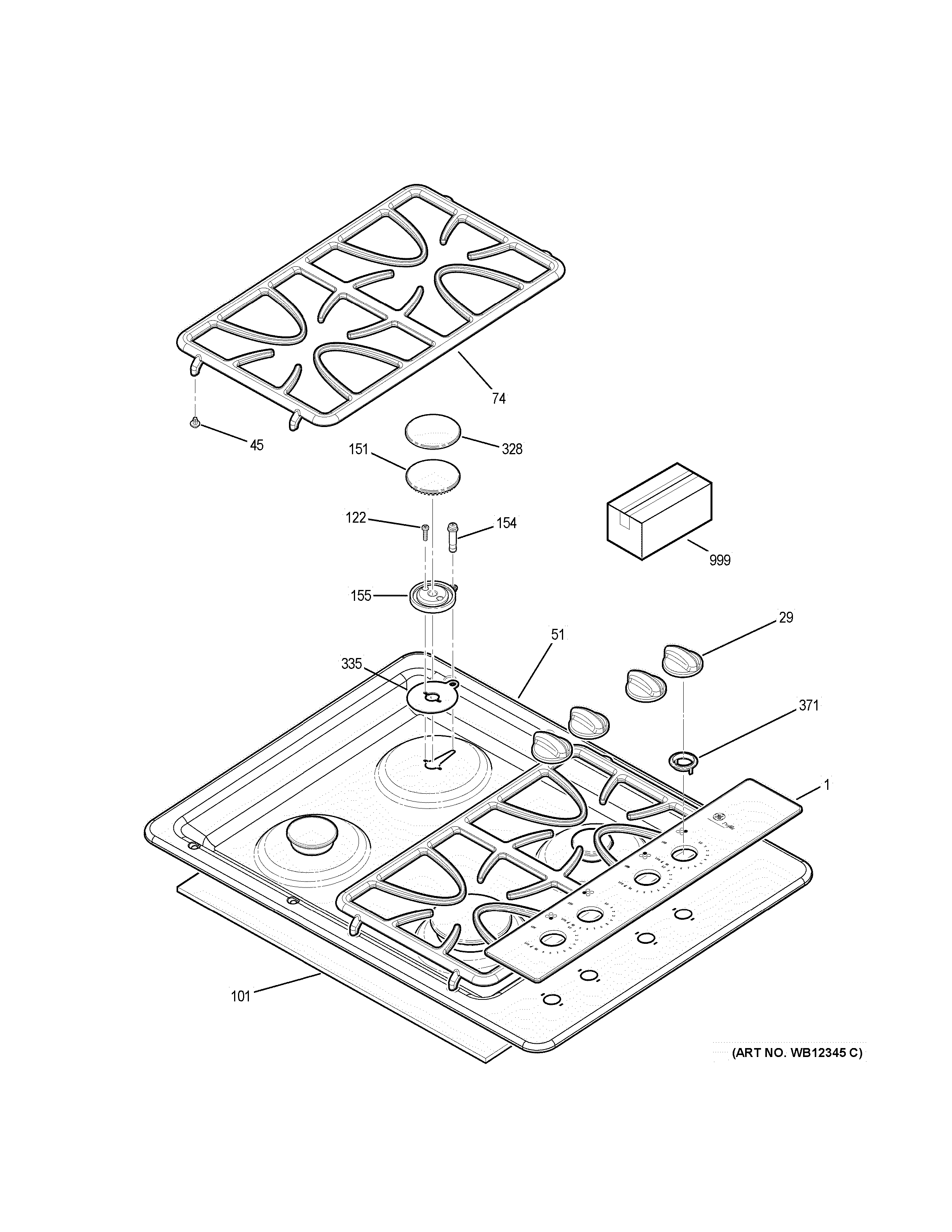

PositionProduct
1CNTL PNL ASM SS
29WB03T10171 GE Oven Gas Valve Knob
45WB02T10461 GE Oven Range Grate Foot
51MAINTOP
74BURNER GRATE DBL-MBLK
101WB35T10051 GE Side Insulation
101INSULATION SIDE
101GLASS TOP INSULATION
122WB01T10049 GE Oven Screw
151BURNER HEAD RT FRT
151WB16T10029 GE Burner Head
151BURNER HEAD LT FRT
151WB16K10036 GE Oven Small Burner Head
154WB13X27058 GE Igniter
155WB16T10032 GE Oven Front Base Burner
155WB16T10031 GE Oven Small Burner Base
155WB16T10030 GE Oven Medium Base Burner
155WB16T10033 GE Oven Large Base Burner
328GEN WB13T10033
328GEN WB13T10036
328BURNER CAP BK MED
328GEN WB13T10034
335WB04T10012 GE Oven Burner Gasket
335GEN WB04T10011
335GEN WB16T10011
335BURNER GASKET D
371WB32K5024
999WB02T10111 GE Cleaner Stainless Steel
999WB18T10218 GE Oven Wire Harness for Burner
999INSTRUCTIONS INSTALL
999INSTRUCTION LP
999MINI MANUAL & WD ASM
999MANUAL-USE & CARE
