JGP933SEF1SS GAS & BURNER PARTS

JGP933SEF1SS GAS & BURNER PARTS

Written by

in

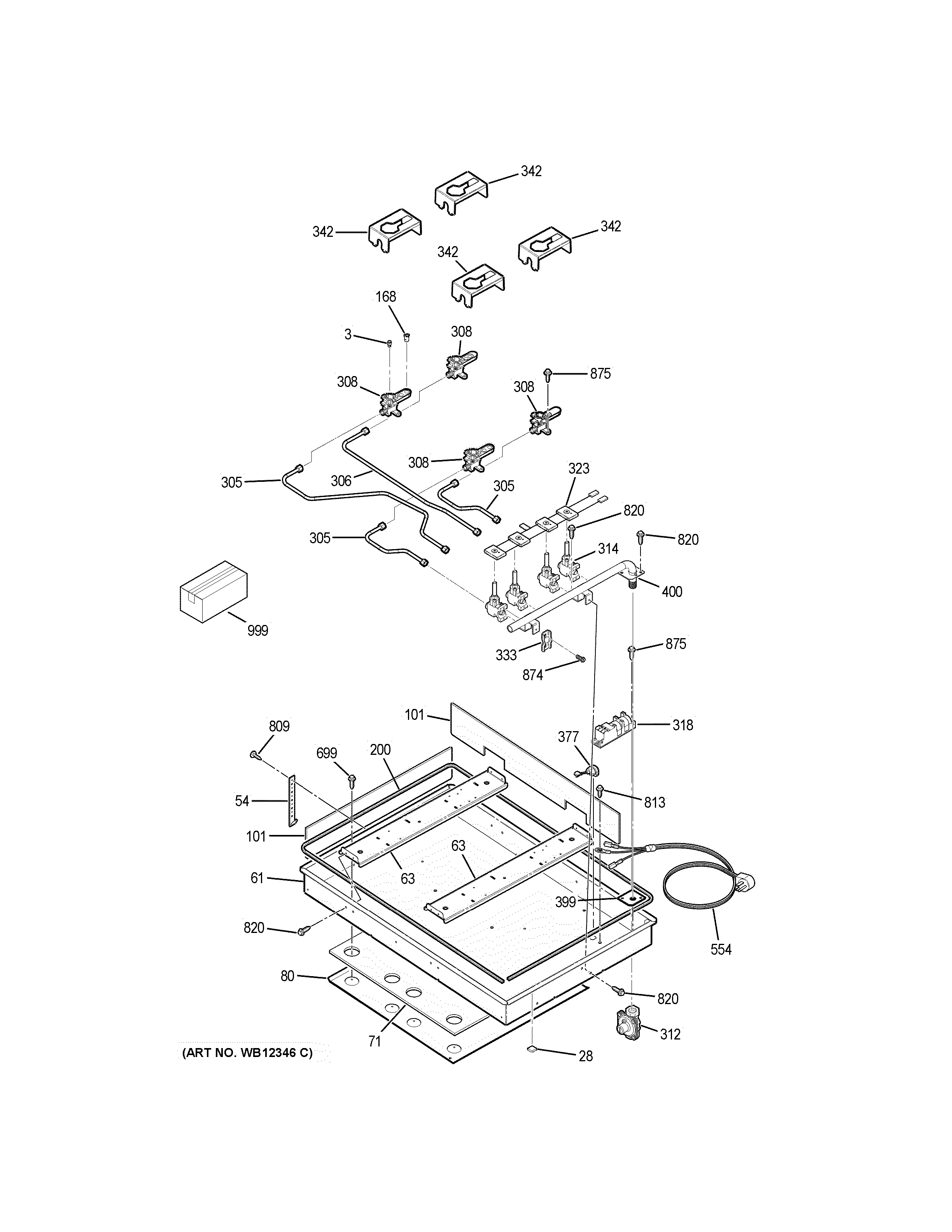

JGP933SEF1SS GAS & BURNER PARTS

Products

PositionProduct
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10014 GE Oven LT Front Orifice Spud
3WB28T10011 GE Oven Spud Orifice
3WB28K10288 GE Oven Orifice Spud
3WB28T10015 GE Oven Natural Orifice Spud Assembly
3WB28T10017 GE Oven Orifice Spud
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3ORIFICE SPUD RT FRT -LP
28WB02T10244 GE Oven Felt Pad
54WB2K5328 GE Oven Hold Down Bracket
61BOTTOM BURN BOX
63BURNER BRACKET SUPPORT
71BURNER BOX INSULATION
80SHIELD BURN BOX BTTM
101WB35T10051 GE Side Insulation
101INSULATION SIDE
101GLASS TOP INSULATION
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305BURNER TUBE-LT FT
305WB28T10226 GE Oven Burner Tube Assembly
306BURNER TUBE LT RR
308BURNER INJET LT. RR.
308BURNER INJET RT FT/LTRR
308BURNER INJET LT FRT
308GEN WB28T10029
312REGULATOR CONVERT PRESS
314GEN WB19T10022
314VALVE GAS RT FRT
314VALVE GAS LT FRT
314WB21X31343 GE Oven Gas Valve Kit
318SPARK MODULE
323SWITCH HARNESS
333WB6X93 GE Oven Clamp
342WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399WB04T10019 GE Oven Manifold Seal
400MANIFOLD PIPE 30
554GEN WB08K5040
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820WB1X1424D GE Oven Screw Package
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999WB02T10111 GE Cleaner Stainless Steel
999WB18T10218 GE Oven Wire Harness for Burner
999MINI MANUAL & WD ASM
999INSTRUCTION LP
999INSTRUCTIONS INSTALL
999MANUAL-USE & CARE
