JGP933WEJ1WW CONTROL PANEL & COOKTOP

JGP933WEJ1WW CONTROL PANEL & COOKTOP

Written by

in

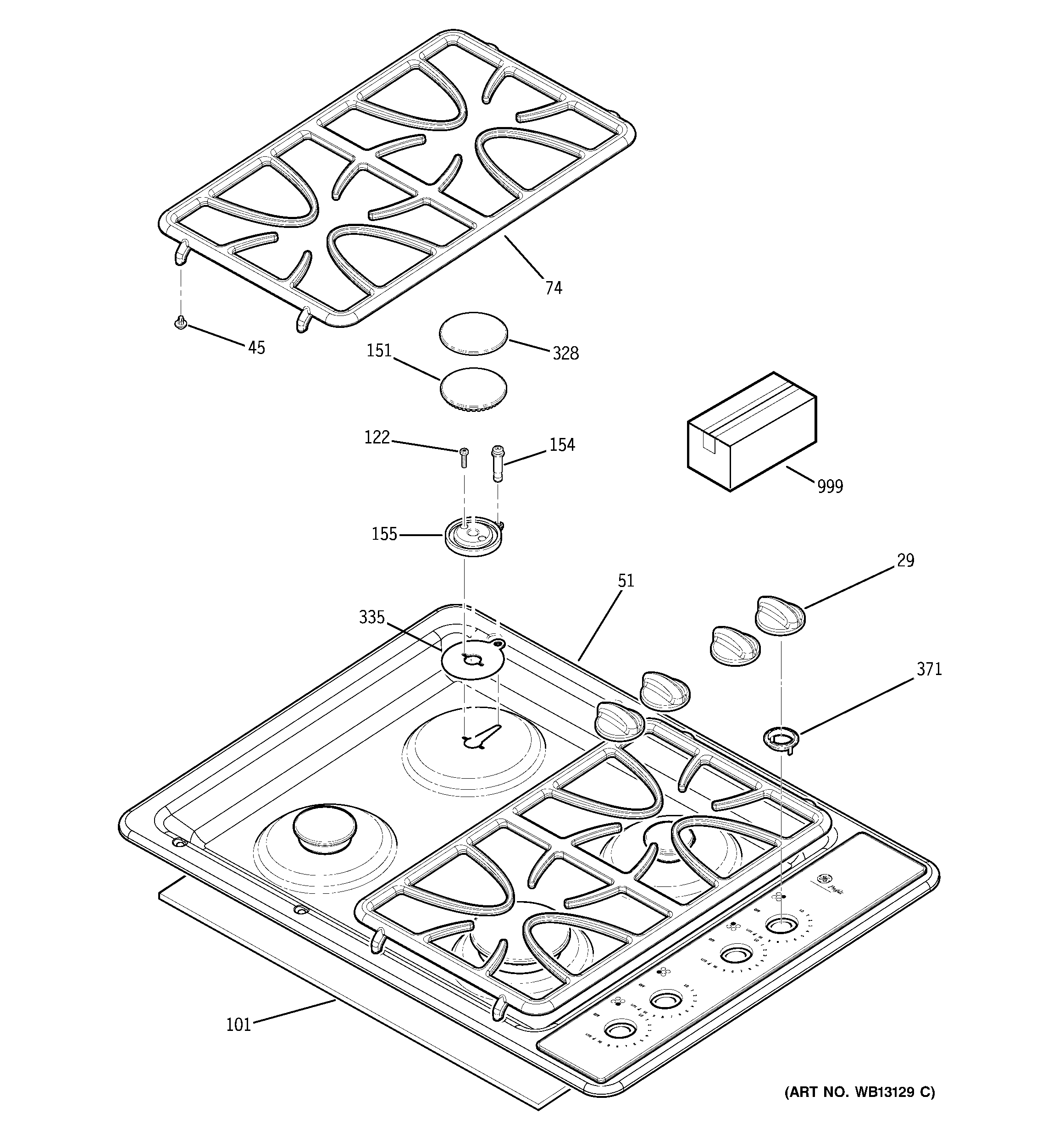

JGP933WEJ1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
29GEN WB03T10176
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10326
74GEN WB31T10045
101INSULATION SIDE
101GLASS TOP INSULATION
101WB35T10051 GE Side Insulation
122WB01T10049 GE Oven Screw
151BURNER HEAD LT FRT
151BURNER HEAD RT FRT
151WB16T10029 GE Burner Head
151WB16K10036 GE Oven Small Burner Head
154WB13X27058 GE Igniter
155WB16T10032 GE Oven Front Base Burner
155WB16T10030 GE Oven Medium Base Burner
155WB16T10031 GE Oven Small Burner Base
155WB16T10033 GE Oven Large Base Burner
328GEN WB13T10032
328GEN WB13T10031
328GEN WB13T10026
328GEN WB13T10027
335GEN WB04T10011
335BURNER GASKET D
335GEN WB16T10011
335WB04T10012 GE Oven Burner Gasket
371WB04T10040 GE Oven Control Seal White
999GEN 31-10537
999GEN 31-13936
999GEN 31-10491
