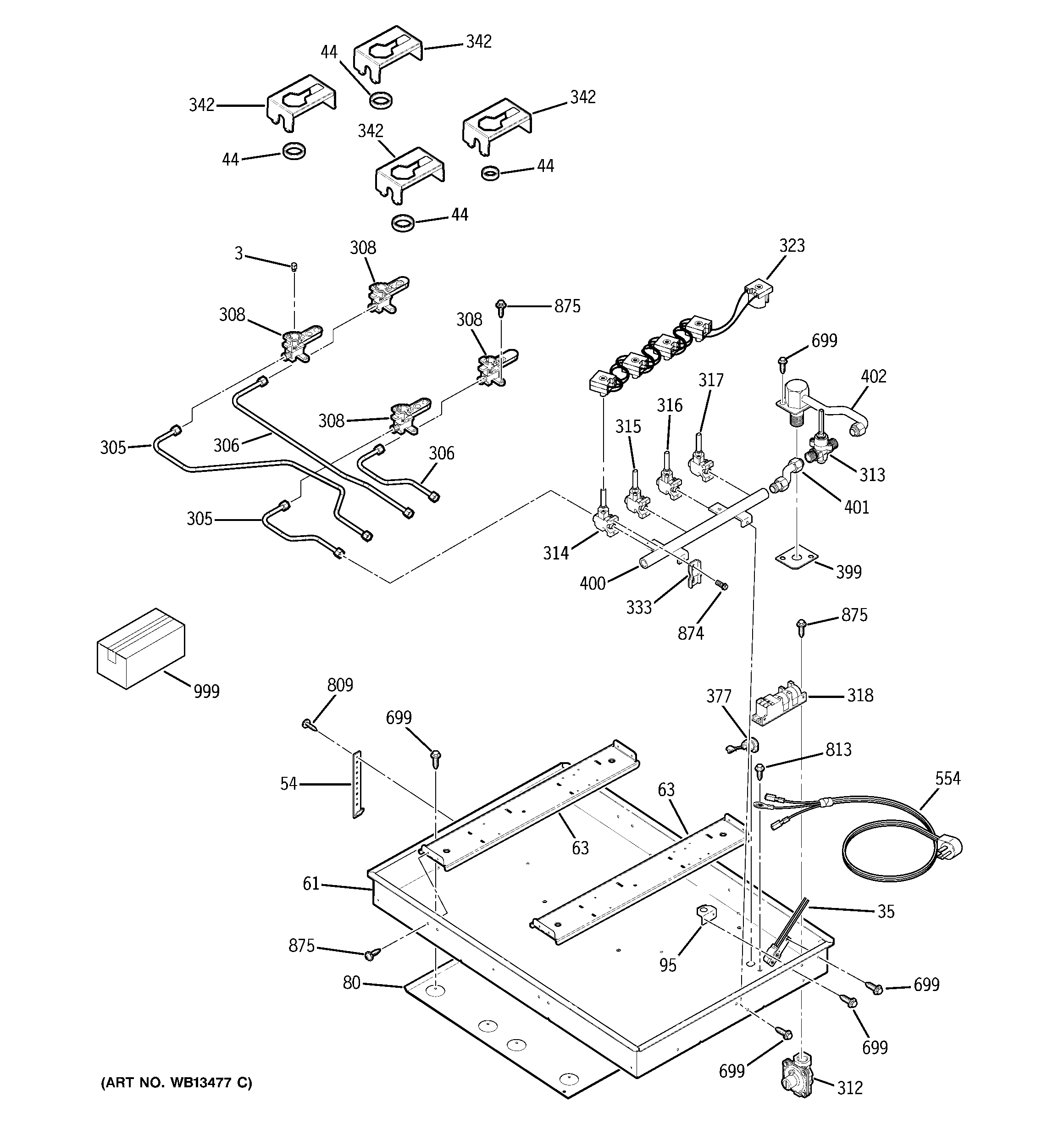

JGP940TEK1WW GAS & BURNER PARTS

Products

PositionProduct
3WB28T10017 GE Oven Orifice Spud
3ORIFICE SPUD RT FRT -LP
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10015 GE Oven Natural Orifice Spud Assembly
3WB28T10151 GE Oven Left Rear LP Orifice Spud
3WB28K10288 GE Oven Orifice Spud
3WB28T10014 GE Oven LT Front Orifice Spud
35WB08T10039 GE Oven Buzzer (120V)
44GEN WB02T10096
44WB02T10095 GE Oven Burner Grommet
54WB2K5328 GE Oven Hold Down Bracket
61WB64T10045 GE Bottom Burn Box
63GEN WB02T10108
63WB02T10099 GE Oven Support Bracket
80SHIELD BURN BOX BTM
95BRACKET
305WB28T10103 GE Oven Burner Tube
305WB28T10226 GE Oven Burner Tube Assembly
306WB28T10102 GE Burner Tube
306WB28T10150 GE Burner Tube Rear
308BURNER INJET ASM
308GEN WB28T10029
308ORIFICE HOLDER BKT LARGE
308BURNER HOLDER BKT SMALL
312REGULATOR CONVERT PRESS
313WB19T10039 GE Oven Valve Lockout
314VALVE GAS RF
315WB21X22075 GE Oven Valve Kit
316WB21X22076 GE Valve Kit
317VALVE GAS RR
318SPARK MODULE
323WB18T10452 GE Igniter Switch and Harness
333WB6X93 GE Oven Clamp
342WB02T10102 GE Oven Support Maintop
377GEN WB02K5275
399WB04T10043 GE Oven Seal Manifold
400PIPE MANIFOLD
401WB28T10104 GE Tube 7/16
402WB28T10105 GE Oven Tube 7/16
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999WB18T10218 GE Oven Wire Harness for Burner
999GEN 31-14249
999GEN 31-10613
999GEN 31-10600
999GEN 49-80358
