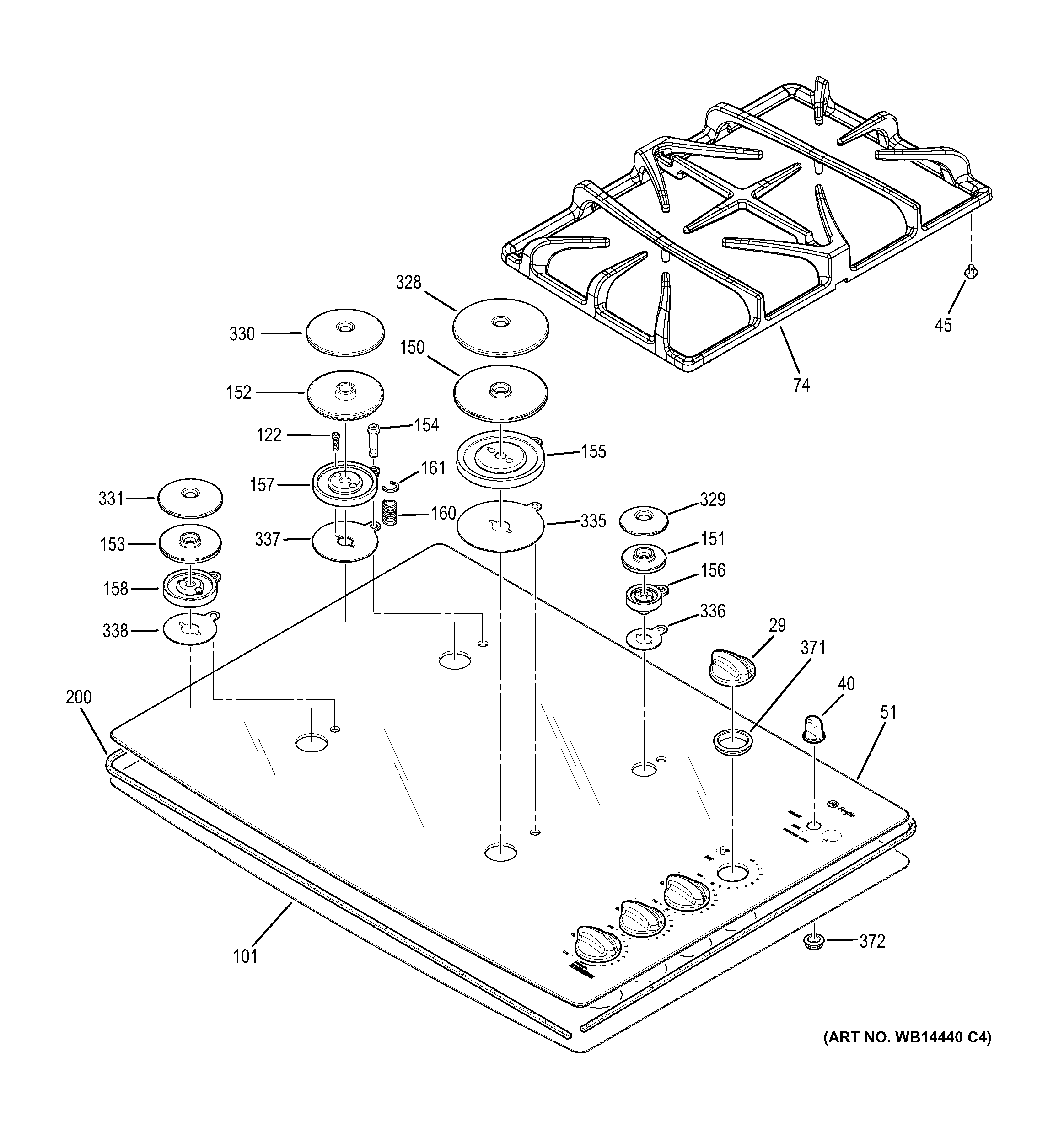

JGP940TEK3WW CONTROL PANEL & COOKTOP

JGP940TEK3WW CONTROL PANEL & COOKTOP

Written by

in

JGP940TEK3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
29KNOB INFINITE
40SEL KNOB (WHT)
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10832
74WB31T10084 GE Oven Grate Assembly
101WB35T10189 GE Insulation
122WB01T10049 GE Oven Screw
150WB16T10037 GE Oven Head Burner
151WB16T10034 GE Oven Range Surface Burner Cap
152GEN WB16T10035
153GEN WB16T10036
154WB13T10073 GE Oven Igniter
155WB16T10032 GE Oven Front Base Burner
155WB16T10025 GE Oven Large Base Burner
156WB16T10031 GE Oven Small Burner Base
157WB16T10030 GE Oven Medium Base Burner
158WB16T10033 GE Oven Large Base Burner
160WB09T10010 GE Spring
161GEN WB02T10304
200WB02X26088 GE Oven Foam Tape
328WB13T10063 GE Oven Burner Cap D (BK)
329WB13T10060 GE Oven Burner Cap H (BK)
330WB13T10061 GE Oven Burner Cap B (BK)
331WB13T10062 GE Oven Burner Cap C (BK)
335BURNER GASKET D
336GEN WB16T10011
337GEN WB04T10011
338WB04T10012 GE Oven Burner Gasket
371WB04T10017 GE Control Seal – White
372WB04T10046 GE White Control Seal
