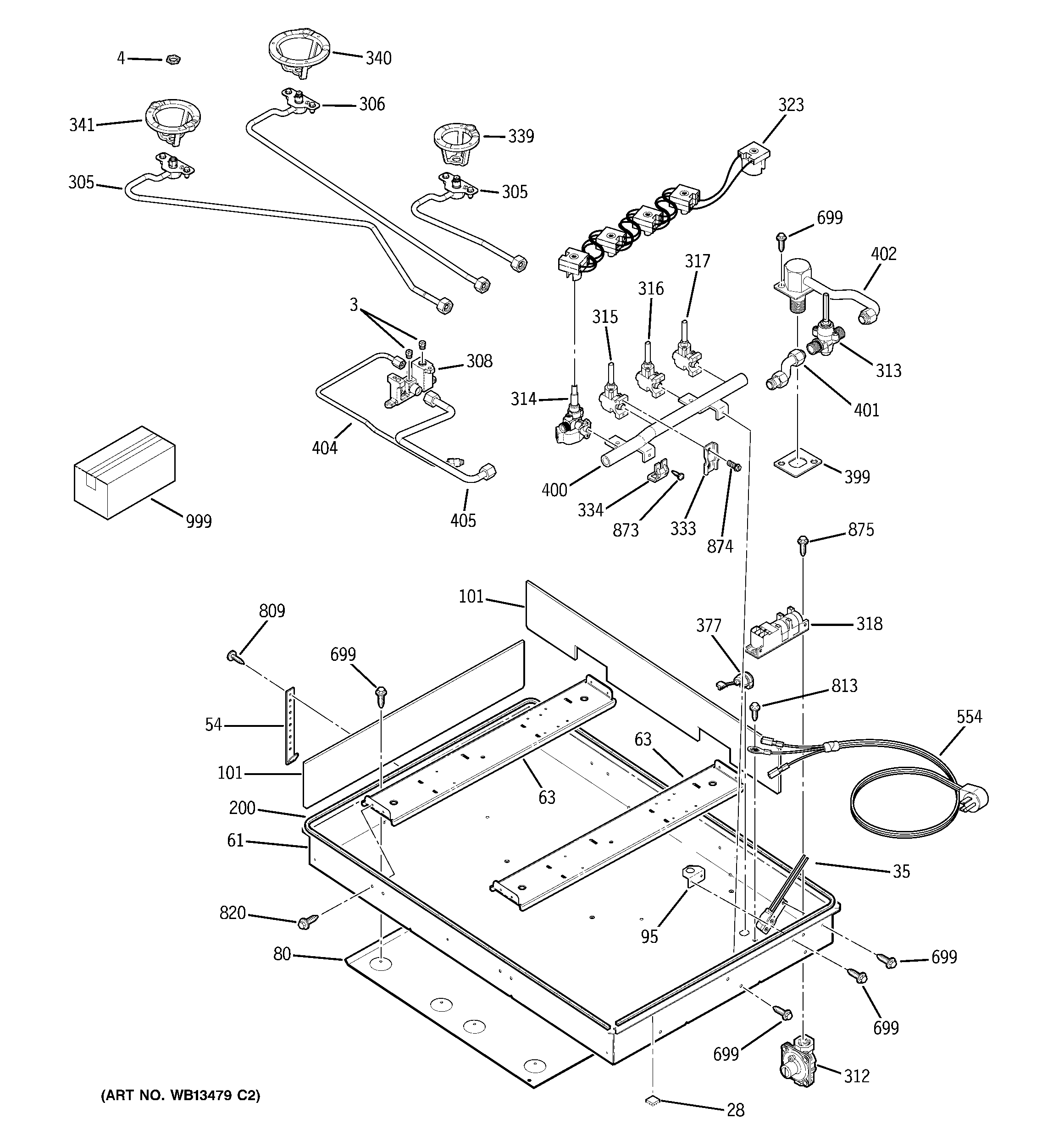

JGP945WEK1WW GAS & BURNER PARTS

JGP945WEK1WW GAS & BURNER PARTS

Written by

in

JGP945WEK1WW GAS & BURNER PARTS

Products

PositionProduct
3WB28K10215 GE Oven Orifice
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28K10214 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3GEN WB28T10115
3WB28T10116 GE Oven Orifice Spud Natural Gas Simmer
3WB28T10117 GE Oven LP Main Orifice Spud
4WB01K10037 GE Oven Economic Nut
28WB02X29562 GE Range Top Bumper
35WB08T10039 GE Oven Buzzer (120V)
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10046
63GEN WB02T10255
63GEN WB02T10256
80GEN WB34T10116
95BRACKET
101GEN WB35T10108
101INSULATION SIDE
101WB35T10051 GE Side Insulation
200GEN WB06T10009
305GEN WB28T10149
305WB28T10227 GE Range Surface Burner Valve
306GEN WB28T10110
308WB28T10114 GE Oven Injector Burner 18K
312REGULATOR CONVERT PRESS
313GEN WB19T10043
314GEN WB28T10186
315GEN WB19T10041
316GEN WB19T10042
317VALVE GAS CTR
318SPARK MODULE
323GEN WB18T10387
333WB6X93 GE Oven Clamp
334WB02T10261 GE Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
377GEN WB02K5275
399WB04T10043 GE Oven Seal Manifold
400GEN WB28T10107
401WB28T10104 GE Tube 7/16
402WB28T10105 GE Oven Tube 7/16
404WB28T10112 GE Oven Main Tube Burner
405WB28T10113 GE Oven Burner Tube (Simmer)
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
820GEN WZ04X0217
873WB01T10091 GE Screw
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999WB02T10111 GE Cleaner Stainless Steel
999GEN 49-80358
999GEN 31-10600
999WB18T10407 GE Oven Burner Wire Harness
999GEN 31-14249
999GEN 31-10613
