JGP945WEK2WW CONTROL PANEL & COOKTOP

JGP945WEK2WW CONTROL PANEL & COOKTOP

Written by

in

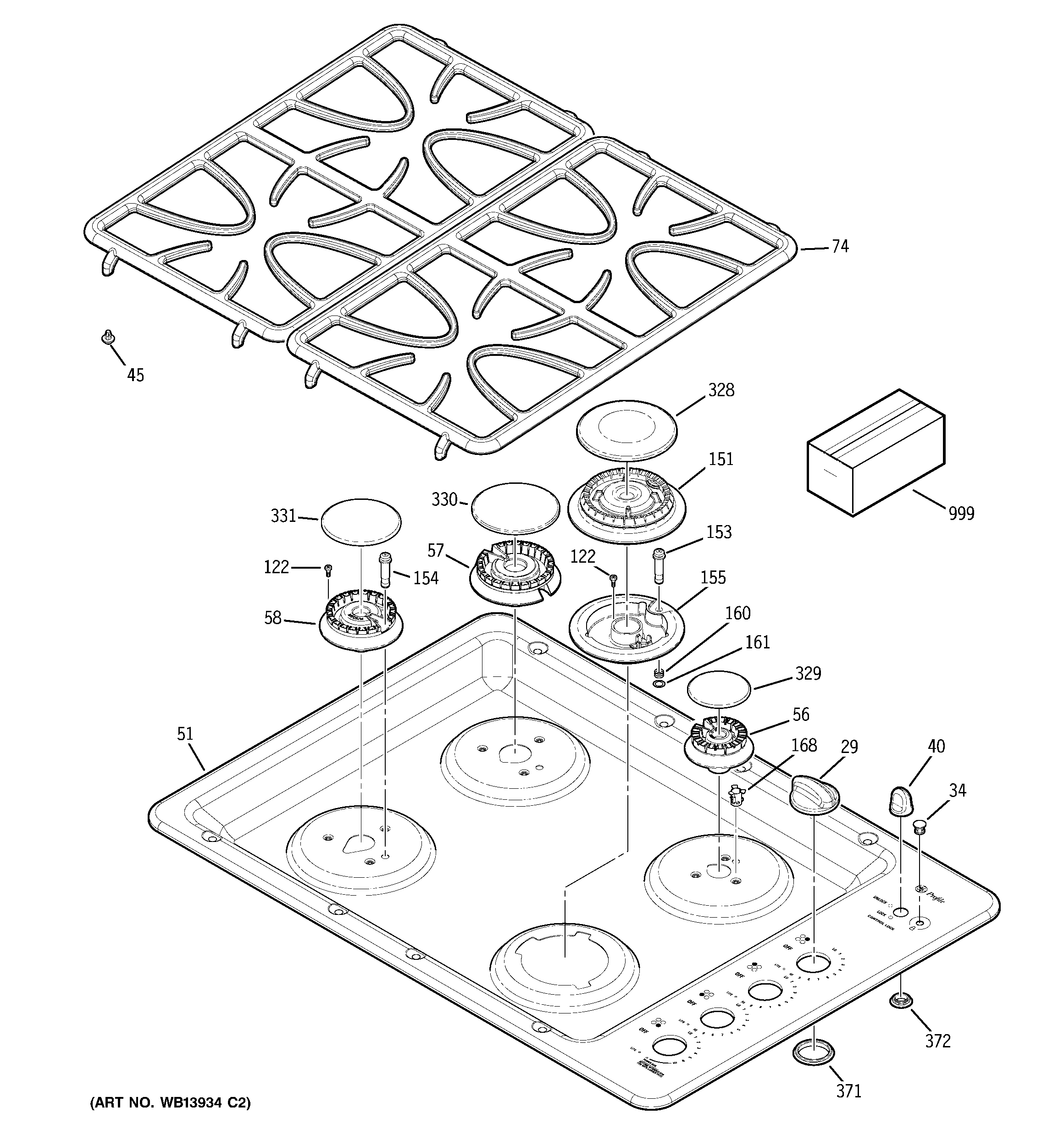

JGP945WEK2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10236 GE Oven Gas Valve Knob (PRF-BK)
29GEN WB03T10237
29KNOB INFINITE
29KNOB ASM
34GEN WB25T10060
34WB25T10041 GE Oven Lens
40GEN WB03T10093
40WB03T10035 GE Oven Black Selector Knob
40SEL KNOB (WHT)
40WB03T10272 GE Oven Knob
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10350
51GEN WB62T10351
51GEN WB62T10352
51GEN WB62T10349
56WB29K10002 GE Range Oven Cooktop Small Burner Cap
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57BURNER 12K
58WB16K10055 GE Oven Burner Base
74WB31T10087 GE Oven Grate Assembly
74WB31T10085 GE Oven Grate Assembly
74GEN WB31T10086
74WB31T10088 GE Oven Grate Assembly
122SCREW 6-32 5/8 OVAL PHILLIPS
122WB01T10104 GE Oven Screw 8-32 MCH
151WB16T10038 GE Oven Main Head Burner
153ELECTRODE TOP
154GEN WB13K10014
155WB16T10047 GE Range Burner 18K-Simmer Base
160WB09T10011 GE Oven Spring Igniter
161WB02T10323 GE Oven Igniter Washer
168WB01K10112 GE Range Oven Electrode Clip
328GEN WB13T10064
328GEN WB13T10066
328GEN WB13T10068
328WB29X43469 GE Burner Cap 18K
329CAP-BURNER SMALL TAUPE
329WB29K10022 GE Oven Burner Cap Assembly
329WB29K10009 GE Oven Burner Cap
330WB29K10007 GE Oven Burner Cap, Left
330WB29K10006 GE Oven Burner Cap
330WB29K10024 GE Burner Cap Oven
330WB29X36765 GE Large Cap Burner Taupe Rep
331WB29K10001 GE Oven Burner Cap
331WB29K10023 GE Oven Burner Cap Assembly
331CAP-BURNER MED TAUPE
331WB29K10004 GE Oven Gray Burner Cap
371WB04T10040 GE Oven Control Seal White
371WB04T10042 GE Oven Black Control Seal
371GEN WB04T10041
372GEN WB04T10049
372GEN WB04T10047
372GEN WB04T10048
999GEN 31-10613
999GEN 49-80358
999GEN 31-14249
999WB18T10407 GE Oven Burner Wire Harness
999WB02T10111 GE Cleaner Stainless Steel
999GEN 31-10600
