JGP962SEC2SS GAS BURNER

JGP962SEC2SS GAS BURNER

Written by

in

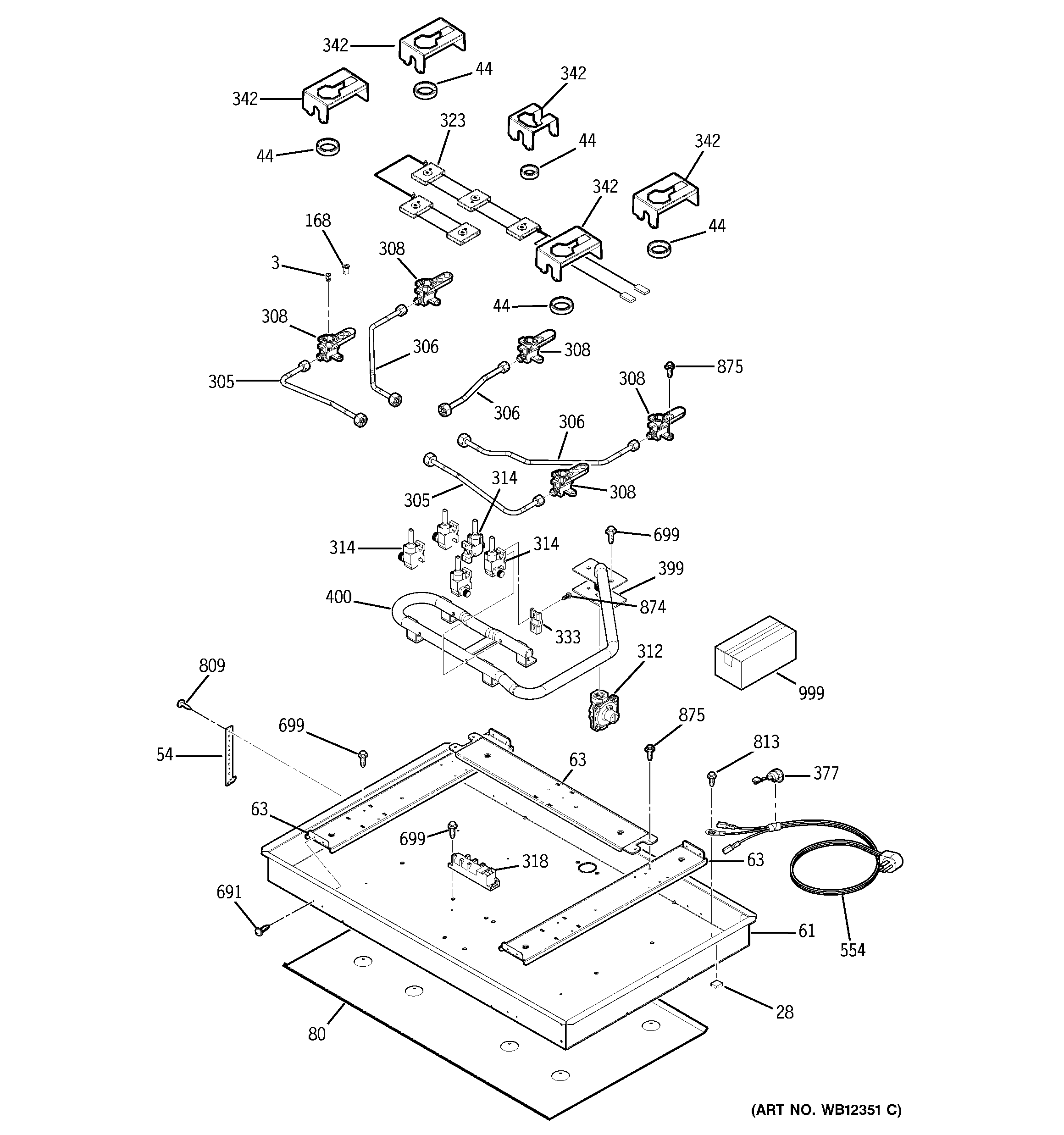

JGP962SEC2SS GAS BURNER

Products

PositionProduct
3WB28K10288 GE Oven Orifice Spud
3GEN WB28T10030
3ORIFICE SPUD RT FRT -LP
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3WB28T10028 GE Oven Orifice Spud Assembly
3WB28T10017 GE Oven Orifice Spud
3WB28T10014 GE Oven LT Front Orifice Spud
3WB28T10011 GE Oven Spud Orifice
28WB02T10244 GE Oven Felt Pad
44WB02T10095 GE Oven Burner Grommet
44GEN WB02T10096
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10034
63GEN WB02T10098
63WB02T10099 GE Oven Support Bracket
63GEN WB02T10100
80GEN WB34T10026
168WB01K10112 GE Range Oven Electrode Clip
305WB28T10058 GE Oven Right Front Burner Tube
305WB28T10060 GE Oven Front Left Tube Burner
306WB28T10059 GE Oven Right Rear Burner Tube
306WB28T10061 GE Oven Right Rear Tube Burner
306WB28T10068 GE Center Burner Tube
308BURNER INJET RT FT/LTRR
308BURNER INJET LT. RR.
308GEN WB28T10029
308BURNER INJET LT FRT
312REGULATOR CONVERT PRESS
314GEN WB19T10028
314GEN WB19T10026
314WB21X31343 GE Oven Gas Valve Kit
314VALVE GAS RF
314GEN WB19T10025
318SPARK MODULE KIT
323GEN WB18T10245
333WB6X93 GE Oven Clamp
342WB02T10102 GE Oven Support Maintop
342WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399WB04T10023 GE Manifold Seal
400GEN WB28T10072
554WB08T10015 GE Range Cord
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999USE & CARE MANUAL
999GEN 31-10502
999GEN 31-13968
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10494
