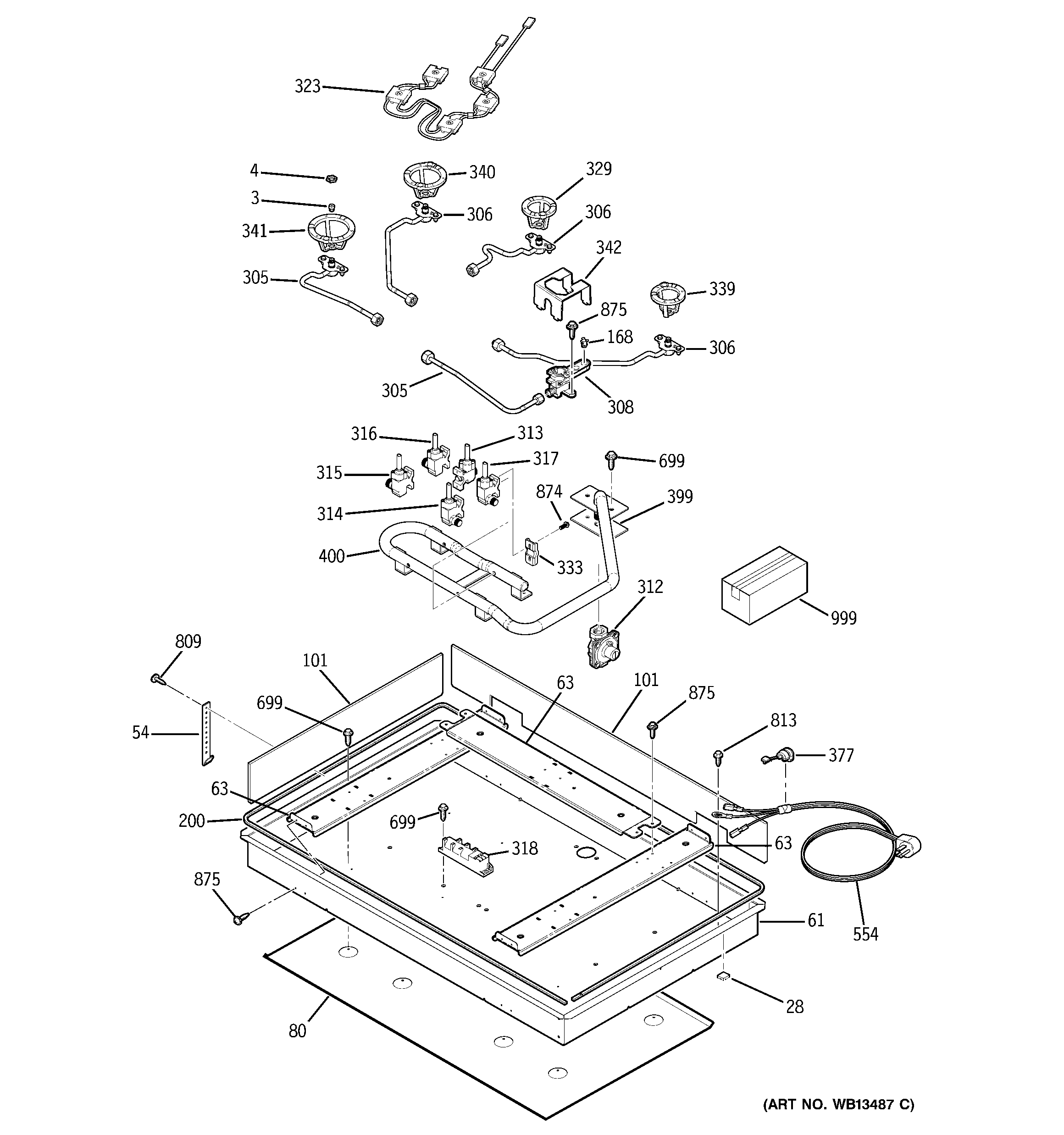

JGP963WEK1WW GAS & BURNER PARTS

JGP963WEK1WW GAS & BURNER PARTS

Written by

in

JGP963WEK1WW GAS & BURNER PARTS

Products

PositionProduct
3WB28K10214 GE Oven Orifice
3WB28K10215 GE Oven Orifice
3WB28T10027 GE Oven Orifice Spud Right FR-NG
3ORIFICE SPUD RT FRT -LP
3WB28K10031 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
28WB02X29562 GE Range Top Bumper
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10051
63GEN WB02T10258
63BRACKET BURN SUPT
63GEN WB02T10259
80WB34T10103 GE Oven Burner Box Bottom Shield
101GEN WB35T10106
101GEN WB35T10107
168WB01K10112 GE Range Oven Electrode Clip
200GEN WB06T10009
305WB28T10058 GE Oven Right Front Burner Tube
305WB28T10126 GE Oven Front Tube Assembly
306WB28T10127 GE Oven Rear Left Tube Assembly
306WB28T10135 GE Oven Center Tube Assembly
306WB28T10125 GE Oven Rear Right Tube Assembly
308ORIFICE HOLDER BKT LARGE
312REGULATOR CONVERT PRESS
313GEN WB19T10054
314VALVE GAS RF
315GEN WB19T10057
316WB21X22040 GE Oven Valve Kit
317WB21X22051 GE Valve Kit
318SPARK MODULE KIT
323GEN WB18T10338
329WB29K10002 GE Range Oven Cooktop Small Burner Cap
333WB6X93 GE Oven Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
342WB02T10104 GE Oven Maintop Support
377GEN WB02K5275
399WB04T10023 GE Manifold Seal
400WB28T10101 GE Oven Manifold Pipe
554WB08T10015 GE Range Cord
699WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
874WB1M14 GE Oven Screw
875WH2X930 GE Screw
999WB18X25698 GE Oven Burner Wire Harness
999GEN 31-10612
999GEN 31-10600
999GEN 49-80280
999GEN 31-14248
