JGP970KEK2CC CONTROL PANEL & COOKTOP

JGP970KEK2CC CONTROL PANEL & COOKTOP

Written by

in

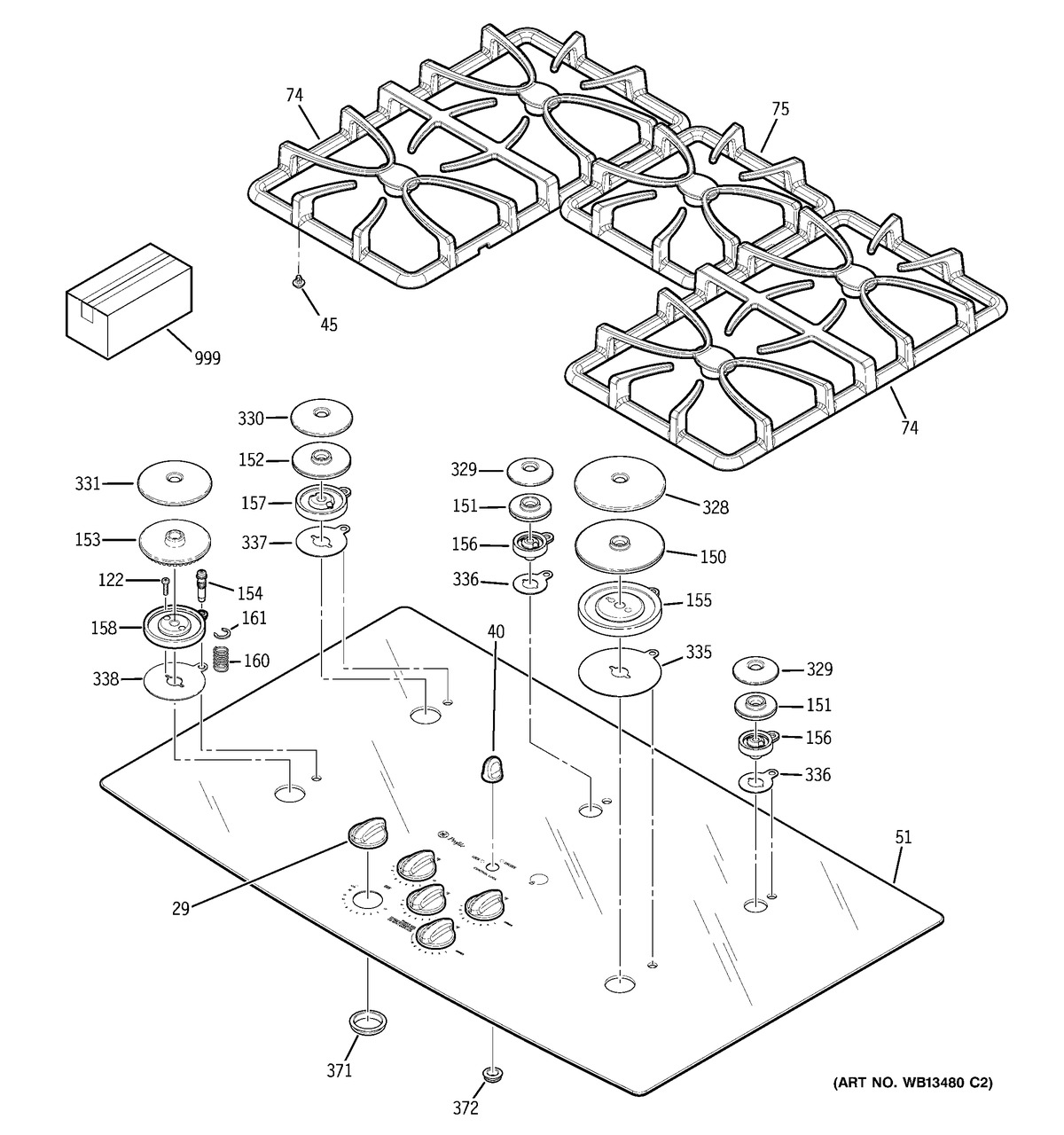

JGP970KEK2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10240 GE Oven Knob Black Profile Gas Valve
29GEN WB03T10239
29GEN WB03T10241
29WB03T10268 GE Oven Control Knob
40GEN WB03T10093
40WB03T10035 GE Oven Black Selector Knob
40WB03T10272 GE Oven Knob
40SEL KNOB (WHT)
45WB02T10461 GE Oven Range Grate Foot
51WB62X25709 GE Oven 36" Maintop Glass
51GEN WB62T10354
51GEN WB62T10356
51WB62X25711 GE Oven Glass Maintop with Trim Assembly
74GEN WB31T10082
74WB31T10084 GE Oven Grate Assembly
74WB31T10083 GE Oven Grate Assembly
74WB31T10081 GE Oven Grate Assembly
75GEN WB31T10092
75WB31T10091 GE Oven Grate Assembly
75WB31T10089 GE Grate Assembly
75GEN WB31T10090
122WB01T10049 GE Oven Screw
150WB16T10037 GE Oven Head Burner
151WB16T10034 GE Oven Range Surface Burner Cap
152GEN WB16T10035
153GEN WB16T10036
154WB13T10073 GE Oven Igniter
155WB16T10032 GE Oven Front Base Burner
156WB16T10031 GE Oven Small Burner Base
157WB16T10030 GE Oven Medium Base Burner
158WB16T10033 GE Oven Large Base Burner
160WB09T10010 GE Spring
161GEN WB02T10304
328WB13T10063 GE Oven Burner Cap D (BK)
328GEN WB13T10059
328GEN WB13T10055
328GEN WB13T10051
329WB13T10060 GE Oven Burner Cap H (BK)
329GEN WB13T10052
329WB13T10048 GE Oven Burner Cap H (BK)
329GEN WB13T10056
330WB13T10061 GE Oven Burner Cap B (BK)
330GEN WB13T10053
330GEN WB13T10049
330GEN WB13T10057
331GEN WB13T10054
331WB13T10050 GE Oven Burner Cap (Black)
331WB13T10062 GE Oven Burner Cap C (BK)
331GEN WB13T10058
335BURNER GASKET D
336GEN WB16T10011
337GEN WB04T10011
338WB04T10012 GE Oven Burner Gasket
371GEN WB04T10016
371WB04T10015 GE Oven Control Knob Seal
371WB04T10017 GE Control Seal – White
372GEN WB04T10045
372WB04T10044 GE Oven Control Seal (Black)
372WB04T10046 GE White Control Seal
999GEN 31-10713
999GEN 31-10624
999GEN 31-14352
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 49-80358
999WB18X25698 GE Oven Burner Wire Harness
