JGP975SEK2SS CONTROL PANEL & COOKTOP

JGP975SEK2SS CONTROL PANEL & COOKTOP

Written by

in

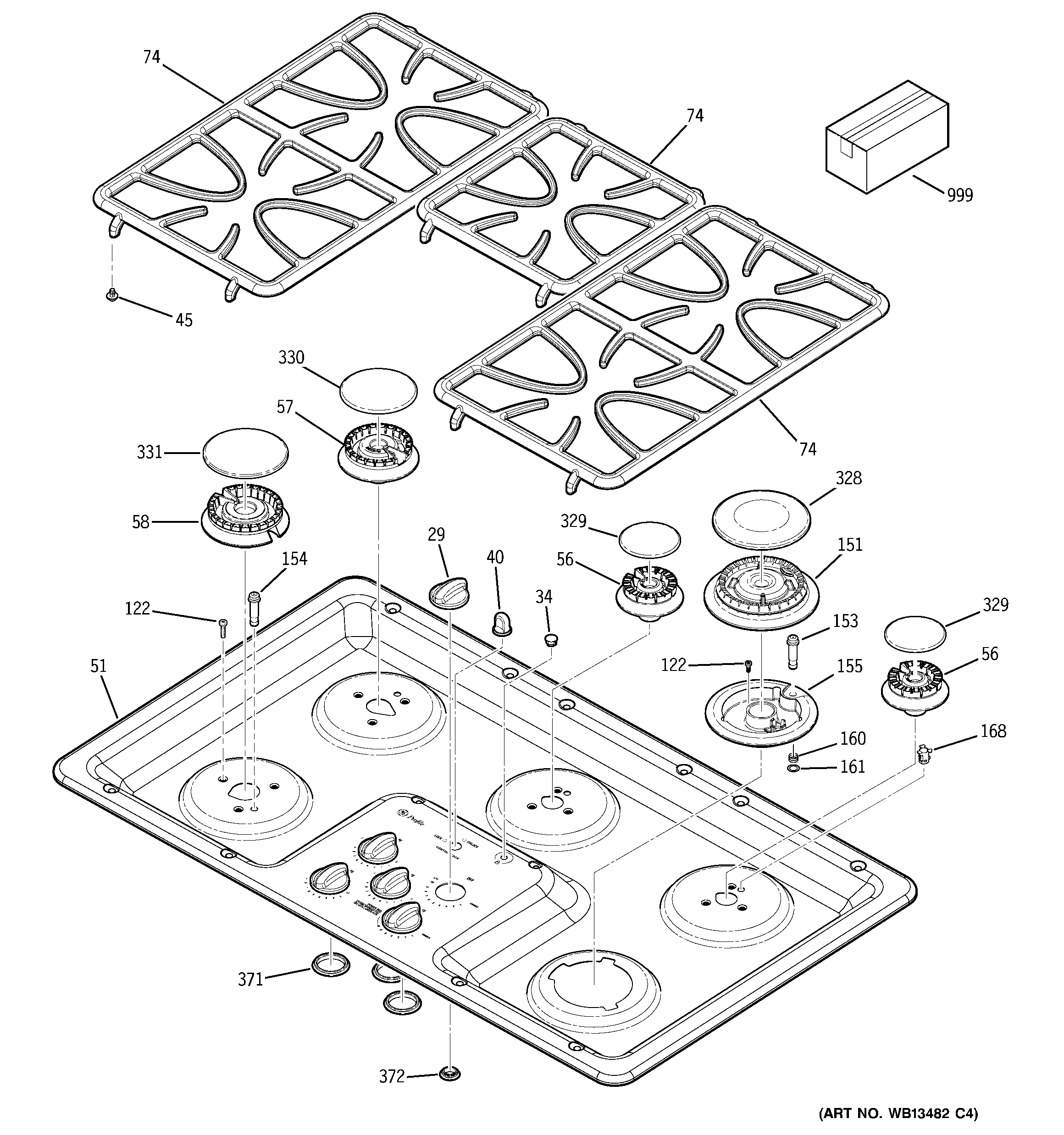

JGP975SEK2SS CONTROL PANEL & COOKTOP

Products

PositionProduct
29WB03T10268 GE Oven Control Knob
34GEN WB25T10060
40WB03T10272 GE Oven Knob
45WB02T10461 GE Oven Range Grate Foot
51GEN WB62T10359
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
58BURNER 12K
74WB31T10095 GE Oven Grate Assembly
74WB31T10087 GE Oven Grate Assembly
122WB01T10104 GE Oven Screw 8-32 MCH
122SCREW 6-32 5/8 OVAL PHILLIPS
151WB16T10038 GE Oven Main Head Burner
153ELECTRODE TOP
154GEN WB13K10014
155WB16T10047 GE Range Burner 18K-Simmer Base
160WB09T10011 GE Oven Spring Igniter
161WB02T10323 GE Oven Igniter Washer
168WB01K10112 GE Range Oven Electrode Clip
328WB29X43469 GE Burner Cap 18K
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10023 GE Oven Burner Cap Assembly
331WB29K10024 GE Burner Cap Oven
371WB04T10042 GE Oven Black Control Seal
372GEN WB04T10047
999GEN 49-80358
999GEN 31-10612
999WB18X25698 GE Oven Burner Wire Harness
999WB02T10111 GE Cleaner Stainless Steel
999GEN 31-10624
999GEN 31-14352
