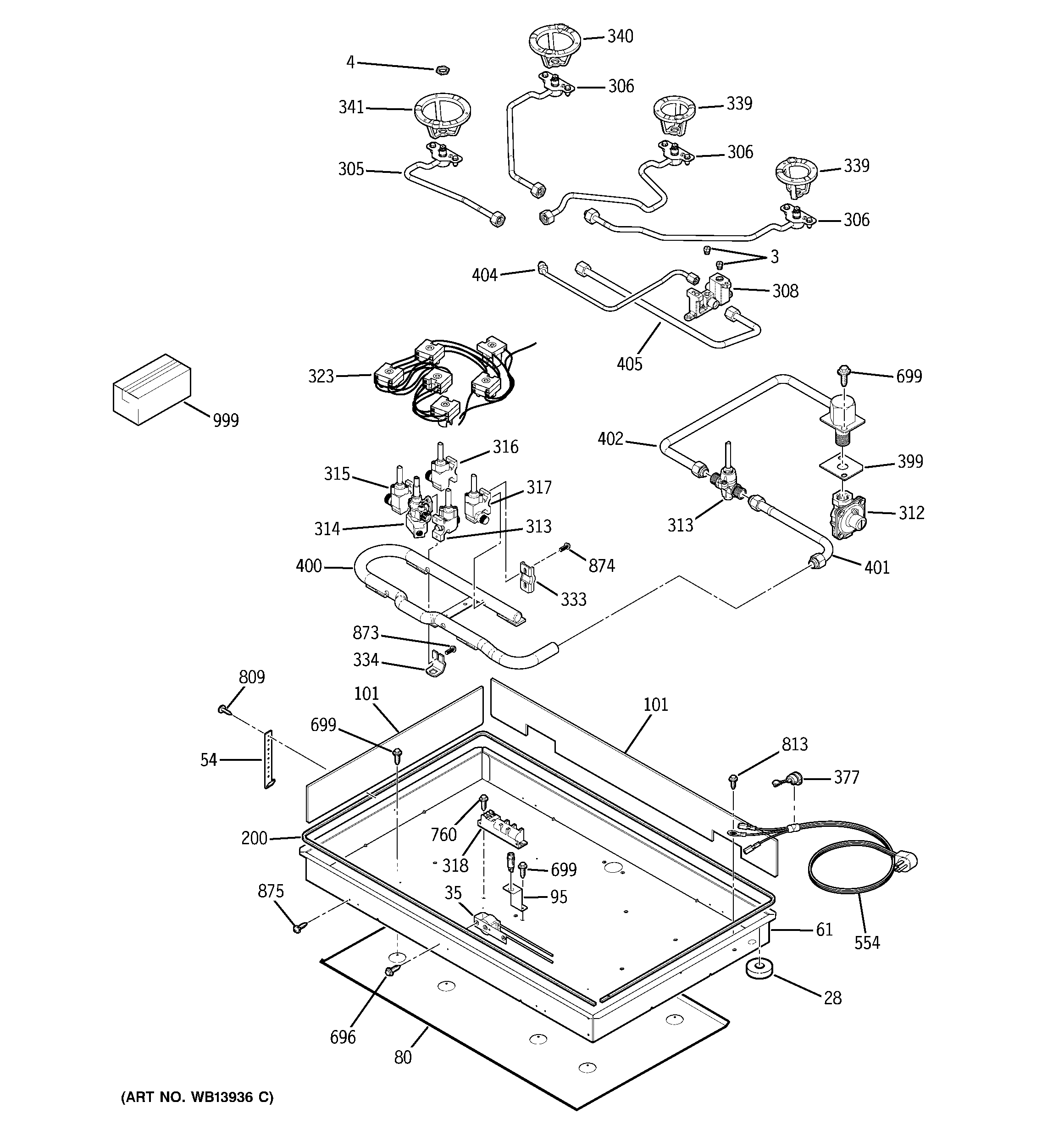

JGP975SEK2SS GAS & BURNER PARTS

JGP975SEK2SS GAS & BURNER PARTS

Written by

in

JGP975SEK2SS GAS & BURNER PARTS

Products

PositionProduct
3WB28T10117 GE Oven LP Main Orifice Spud
3WB28T10118 GE Oven LP Main Orifice Spud
3WB28K10214 GE Oven Orifice
3WB28T10116 GE Oven Orifice Spud Natural Gas Simmer
3WB28K10031 GE Oven Orifice
3WB28K10215 GE Oven Orifice
3GEN WB28T10115
4WB01K10037 GE Oven Economic Nut
28WB02X29562 GE Range Top Bumper
35WB08T10039 GE Oven Buzzer (120V)
54WB2K5328 GE Oven Hold Down Bracket
61GEN WB64T10062
80WB34T10103 GE Oven Burner Box Bottom Shield
95WB02T10257 GE Ran Bracket
101GEN WB35T10160
101WB35T10056 GE Side Insulation
200GEN WB06T10009
305WB28T10126 GE Oven Front Tube Assembly
306WB28T10127 GE Oven Rear Left Tube Assembly
306WB28T10125 GE Oven Rear Right Tube Assembly
306GEN WB28T10128
308WB28T10114 GE Oven Injector Burner 18K
312REGULATOR CONVERT PRESS
313WB19T10039 GE Oven Valve Lockout
313VALVE GAS CTR
314GEN WB28T10187
315GEN WB19T10059
316WB21X22042 GE Valve Kit
317WB21X22041 GE Valve Kit
318SPARK MODULE KIT
323GEN WB18T10388
333WB6X93 GE Oven Clamp
334WB02T10261 GE Clamp
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
377GEN WB02K5275
399WB04T10043 GE Oven Seal Manifold
400GEN WB28T10124
401WB28T10120 GE Oven Tube
402GEN WB28T10123
404WB28T10129 GE Oven Main Burner Tube
405WB28T10130 GE Oven Simmer Tube Burner
554WB08T10015 GE Range Cord
696GEN WZ04X0217
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
809WB1X1137 GE Oven Screw
813WB1X1261 GE Oven Screw
873WB01T10091 GE Screw
874GEN WB01X1428
875WH2X930 GE Screw
999GEN 49-80358
999GEN 31-14352
999GEN 31-10612
999GEN 31-10624
999WB02T10111 GE Cleaner Stainless Steel
999WB18X25698 GE Oven Burner Wire Harness
