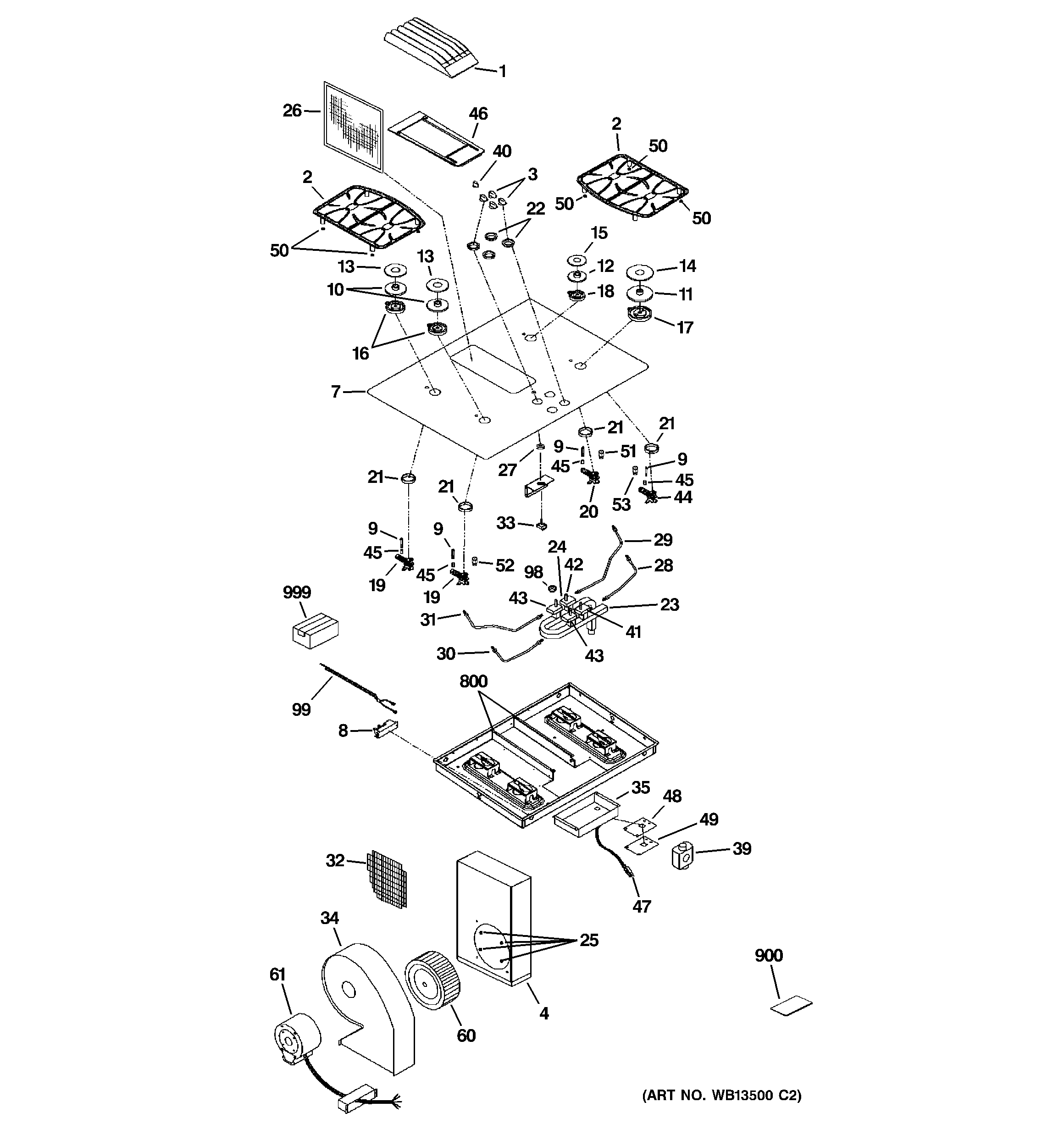

JGP989KK2CC CONTROL PANEL & COOKTOP

JGP989KK2CC CONTROL PANEL & COOKTOP

Written by

in

JGP989KK2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB07X10467
2WB30X43487 GE Universal Grate Assembly
3GEN WB03X10143
4GEN WB64X10019
7GEN WB61X10003
8SPARK MODULE
9WB13T10073 GE Oven Igniter
10GEN WB16T10028
11GEN WB16X10029
12GEN WB16X10001
13GEN WB13T10015
14BURNER CAP BQT-LARGE
15GEN WB13X10010
16WB16T10030 GE Oven Medium Base Burner
17WB16T10033 GE Oven Large Base Burner
18GEN WB16X10002
19GEN WB16X10003
20WB16X26293 GE Oven Burner Assembly Injection
21WB02T10095 GE Oven Burner Grommet
22WB32X10019 GE Oven Black Valve Hole Grommet
23GEN WB28X10031
24GEN WB24X10068
25GEN WB01X10297
26GEN WB02X10651
27INFINITE CONTROL SEAL
28WB28X10027 GE Oven Right Front Tubing
29WB28X10028 GE Oven Tubing Right Rear
30WB28X10029 GE Oven Left Tubing
31WB28X10030 GE Oven Left Rear Tubing
32WB02X10652 GE Oven Guard Wire
33WB24X10055 GE Oven Blower Switch 3 Speed
34GEN WB26X10129
35GEN WB02X11187
39REGULATOR CONVERT PRESS
40GEN WB03T10093
41WB21X10051 GE Oven Right Front Valve
42WB21X10052 GE Oven Right Rear Valve
43WB21X10053 GE Oven Left & Right Valve
44GEN WB16X10005
45WB01K10112 GE Range Oven Electrode Clip
47WB08X10018 GE Power Cord
48WB06X10276 GE Manifold Gasket
49GEN WB02X11188
50WB02T10461 GE Oven Range Grate Foot
51WB28X26296 GE Oven Orifice Spud Assembly
51WB28T10013 GE Oven Natural Gas Orifice Spud Assembly
52WB28T10117 GE Oven LP Main Orifice Spud
52WB28T10014 GE Oven LT Front Orifice Spud
53WB28T10015 GE Oven Natural Orifice Spud Assembly
53WB28X26295 GE Oven Spud Orifice Assembly
60GEN WB26X10130
61GEN WB26X10131
98GEN WB02X9488
99GEN WB18X10292
800GEN WB02X11189
900GEN 31-14305
900GEN 49-80284
999WX10X302 GE Scraper
999WB06X10694 GE Reflective Tape Roll 150'
999PM10X310 GE Cerama Bryte Cooktop Cleaner
