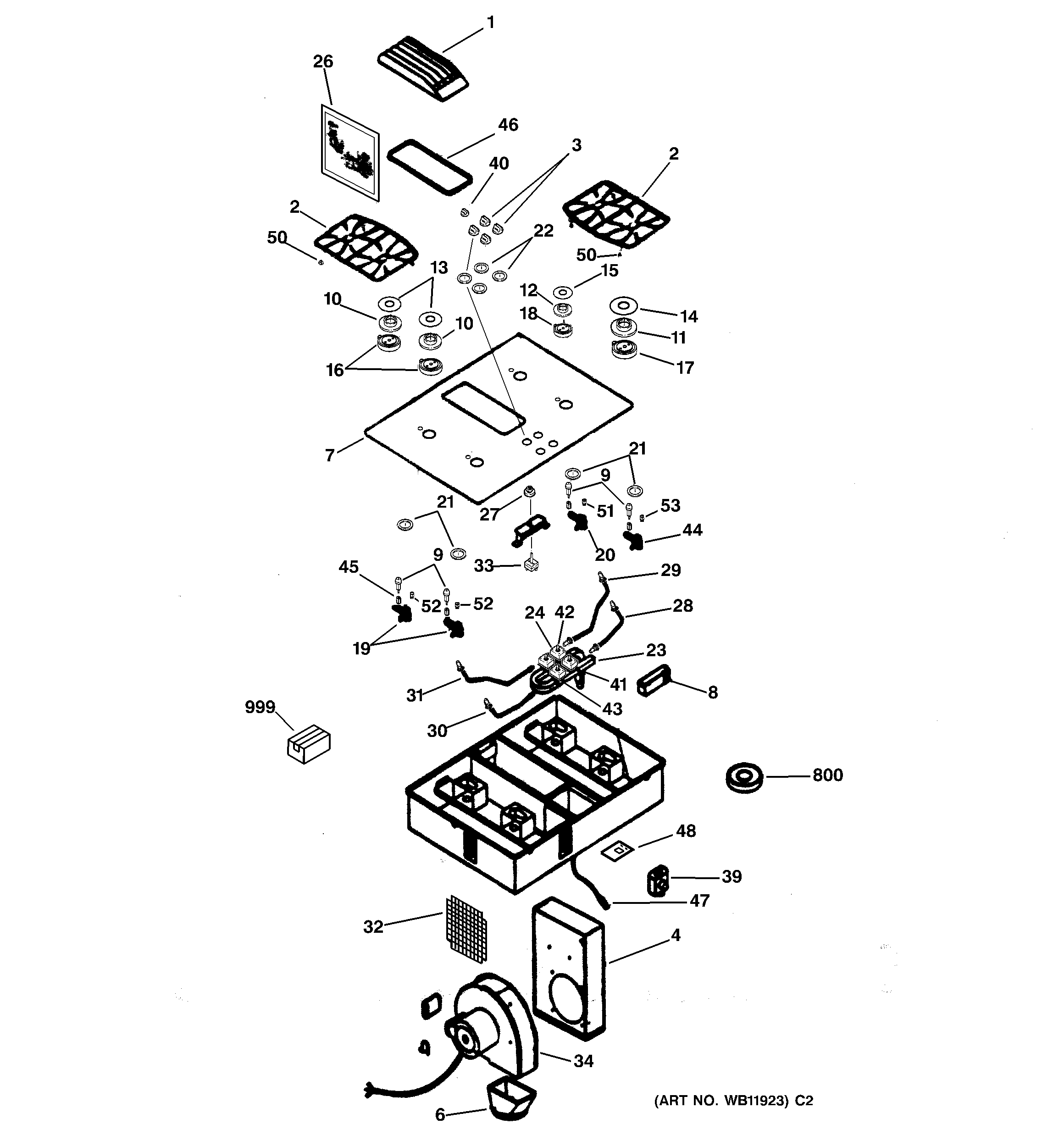

JGP989TC1WW CONTROL PANEL & COOKTOP

Products

Position	Product
1	GEN WB07X10412
2	WB31X10009 GE Oven Gray Burner Grate
3	GEN WB03X10121
4	GEN WB49X10062
6	GEN WB38X10034
7	GEN WB61X10002
8	GEN WB13K0025
9	WB13X27058 GE Igniter
10	BURNER HEAD-MED
11	BURNER HEAD C
12	GEN WB16X10001
13	BURNER CAP-F F&R
14	BURNER CAP GRAY
15	GEN WB13X10009
16	WB16T10030 GE Oven Medium Base Burner
17	WB16T10033 GE Oven Large Base Burner
18	GEN WB16X10002
19	GEN WB16X10003
20	WB16X26293 GE Oven Burner Assembly Injection
21	WB02T10095 GE Oven Burner Grommet
22	WB32X10019 GE Oven Black Valve Hole Grommet
23	GEN WB28X10031
24	GEN WB24X10068
26	GEN WB02X10651
27	INFINITE CONTROL SEAL
28	WB28X10027 GE Oven Right Front Tubing
29	WB28X10028 GE Oven Tubing Right Rear
30	WB28X10029 GE Oven Left Tubing
31	WB28X10030 GE Oven Left Rear Tubing
32	WB02X10652 GE Oven Guard Wire
33	WB24X10055 GE Oven Blower Switch 3 Speed
34	GEN WB26X10088
39	REGULATOR CONVERT PRESS
40	SEL KNOB (WHT)
41	WB21X10051 GE Oven Right Front Valve
42	WB21X10052 GE Oven Right Rear Valve
43	WB21X10053 GE Oven Left & Right Valve
44	GEN WB16X10005
45	WB01K10112 GE Range Oven Electrode Clip
46	GEN WB06X10275
47	WB08X10018 GE Power Cord
48	WB06X10276 GE Manifold Gasket
50	WB02T10461 GE Oven Range Grate Foot
51	WB28X26296 GE Oven Orifice Spud Assembly
52	WB28T10117 GE Oven LP Main Orifice Spud
53	WB28X26295 GE Oven Spud Orifice Assembly
800	WB02X26088 GE Oven Foam Tape
999	WX10X302 GE Scraper
999	GEN 31-20779
999	GEN 49-80068
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
