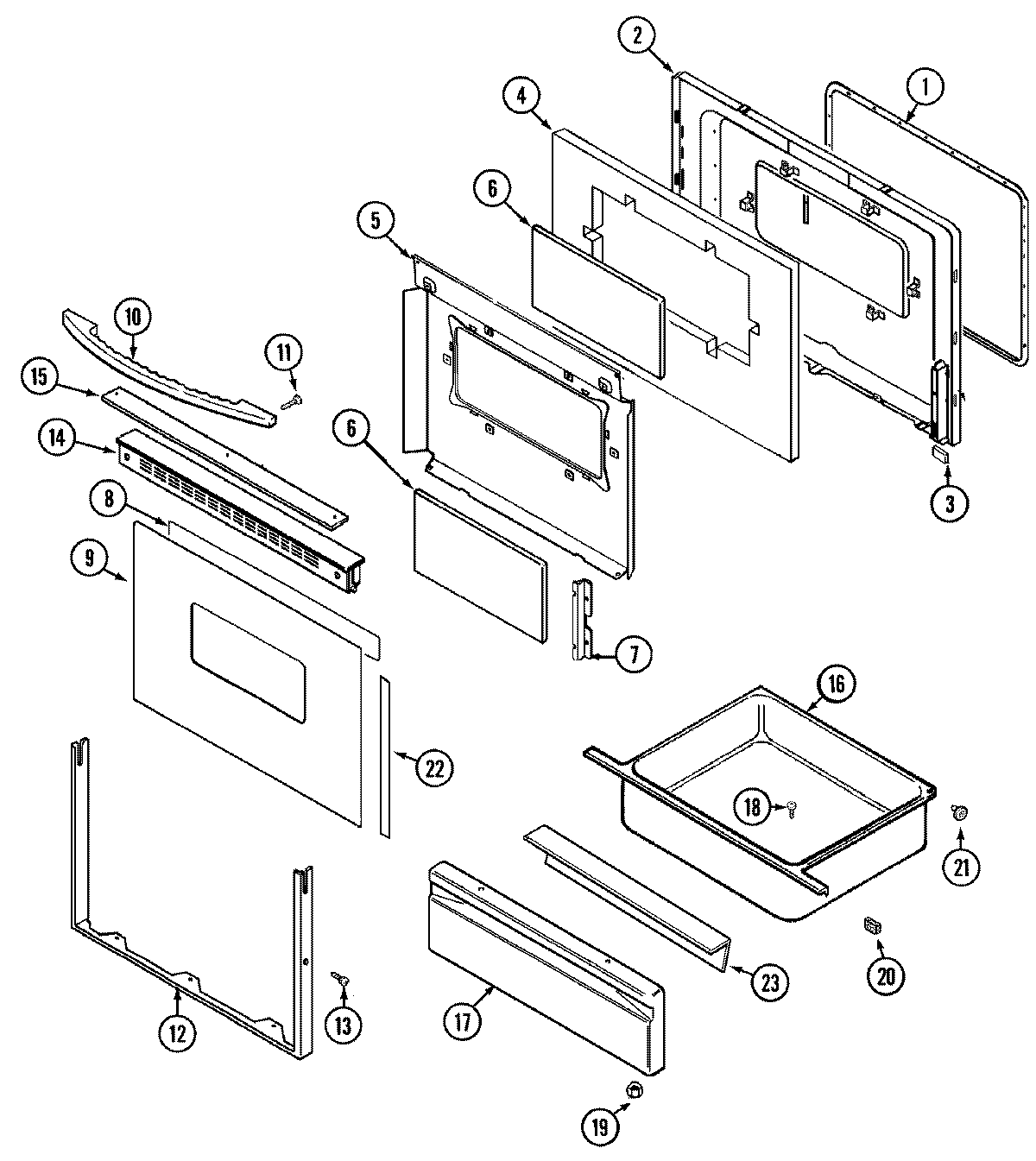

JGR8730ADQ 03 – DOOR/DRAWER

JGR8730ADQ 03 – DOOR/DRAWER

Written by

in

JGR8730ADQ 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2NUT, SNAP (ROUND-WHT)
2MAY 74003643
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-BLK)
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006396
10MAY 74006666
11WP74006515 Whirlpool Washer Screw
12MAY 74004975
14MAY 74006378
14SCREW
15MAY 74004978
15WP74009541 Whirlpool Screw Assembly
16MAY 71003042
17PANEL, DRAWER (BSQ)
1974005230 Whirlpool Oven Lock Nut (8-32)
20WP854334 Whirlpool Air Conditioner Sealing Strip
21WP74004078 Whirlpool Door Roller
21SHAFT, STORAGE DRAWER ROLLER
22MAY 74003660
23LINING, DRAWER PANEL
