JGR8730ADW 03 – DOOR/DRAWER

JGR8730ADW 03 – DOOR/DRAWER

Written by

in

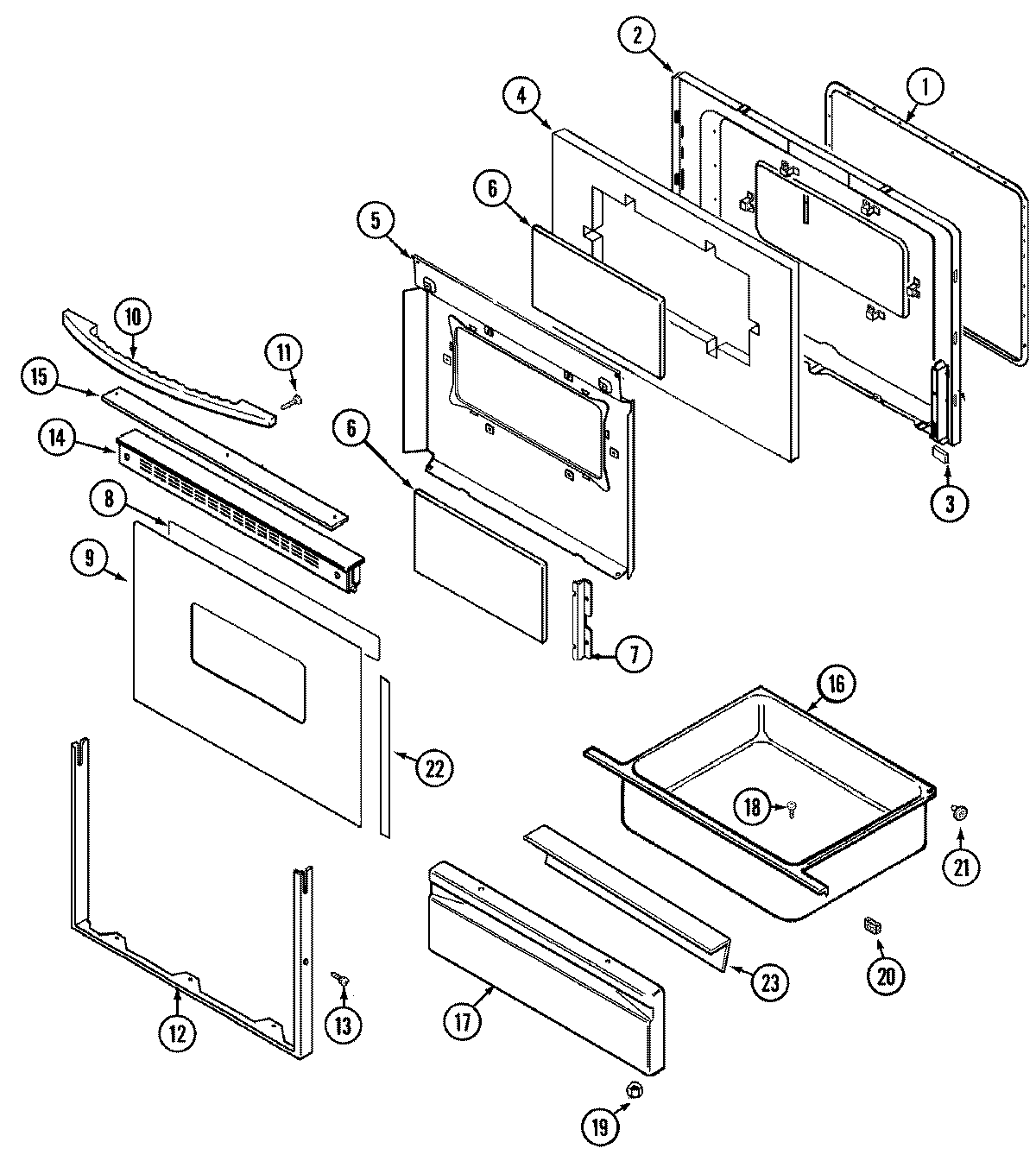

JGR8730ADW 03 – DOOR/DRAWER

Products

PositionProduct
1GASKT-DOOR OVEN
2NUT, SNAP (ROUND-WHT)
2MAY 74003643
2LINING, OVEN DOOR
2NUT, SNAP (ROUND-BLK)
3MAY 8010P085-60
4MAY 74001842
5MAY 74001843
6GLASS, INNER
7MAY 74001844
8TAPE, FOIL (3“ WIDE)
9MAY 74006395
10MAY 74006668
11WP74006515 Whirlpool Washer Screw
12MAY 7706P310-60
13WP98008544 Whirlpool Screw Assembly
14SCREW
14MAY 74003864
15MAY 74001278
15MAY 7728P094-60
16MAY 71003042
17PANEL, DRAWER (WHT)
1974005230 Whirlpool Oven Lock Nut (8-32)
20WP854334 Whirlpool Air Conditioner Sealing Strip
21SHAFT, STORAGE DRAWER ROLLER
21WP74004078 Whirlpool Door Roller
22MAY 74003660
23LINING, DRAWER PANEL
