JGR8750ADA 02 – CONTROL PANEL

JGR8750ADA 02 – CONTROL PANEL

Written by

in

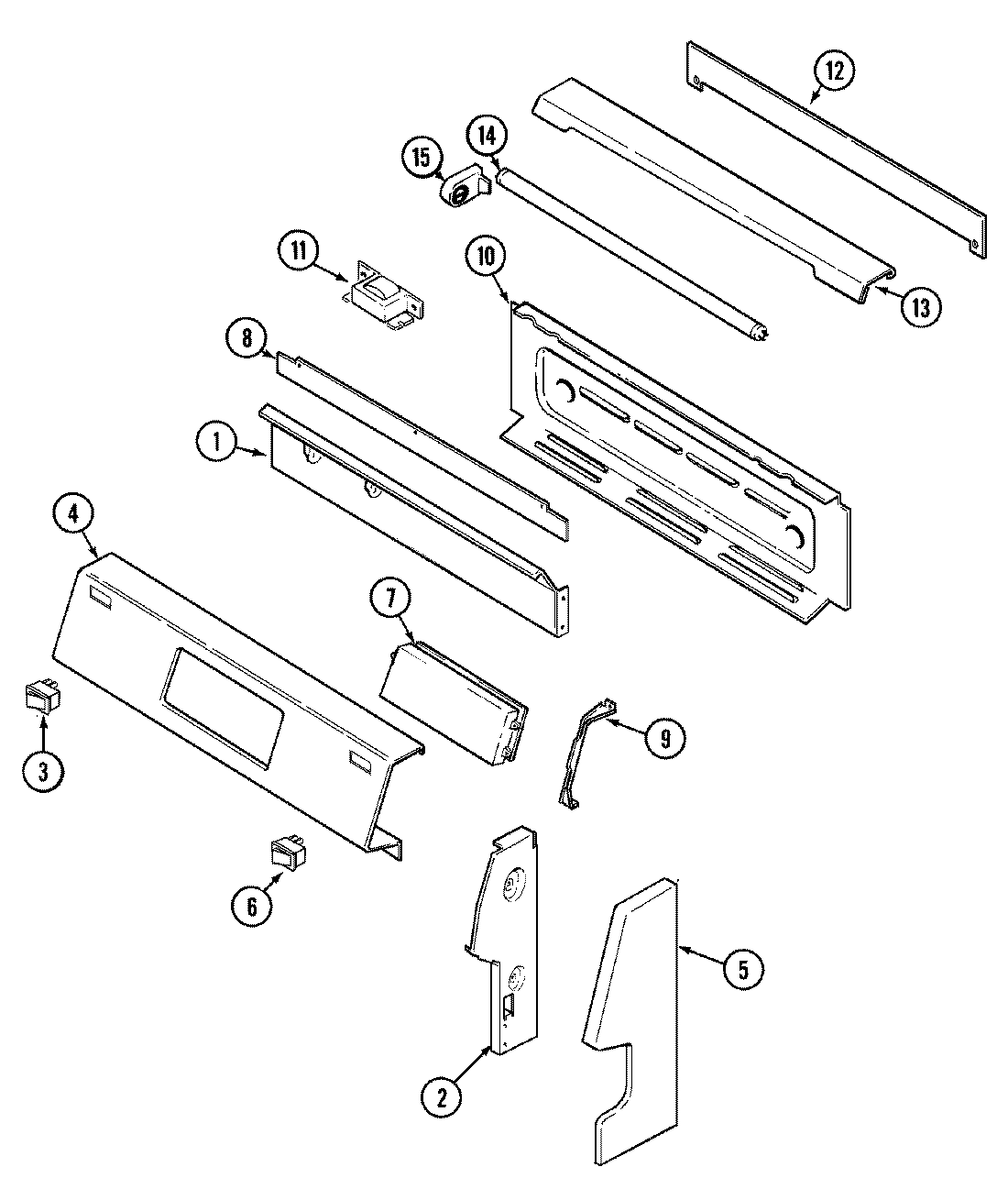

JGR8750ADA 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74003488
2MAY 74003490
2MAY 74003489
3MAY 74003555
4MAY 71003036
5MAY 74003552
5MAY 74003551
5MAY 74002528
5WP74009541 Whirlpool Screw Assembly
674008765 Whirlpool Range Oven Rocker Switch Bisque
7MAY 71003121
7SCREW (6ABX.25-ZN)
8MAY 8036P003-60
8SCREW (8BX3/8-NI)
9MAY 74002502
9MAY 74003550
10MAY 74003493
11MAY 74003033
11SCREW
12MAY 74003558
13MAY 74003556
14WP95292 Whirlpool Fluorescent Light Bulb
15MAY 7408P030-60
17MAY 71003046
18MAY 74004042
18MAY 71003045
18MAY 16008701
19MAY 71002782
20MAY 12001323
21MAY 16010161
