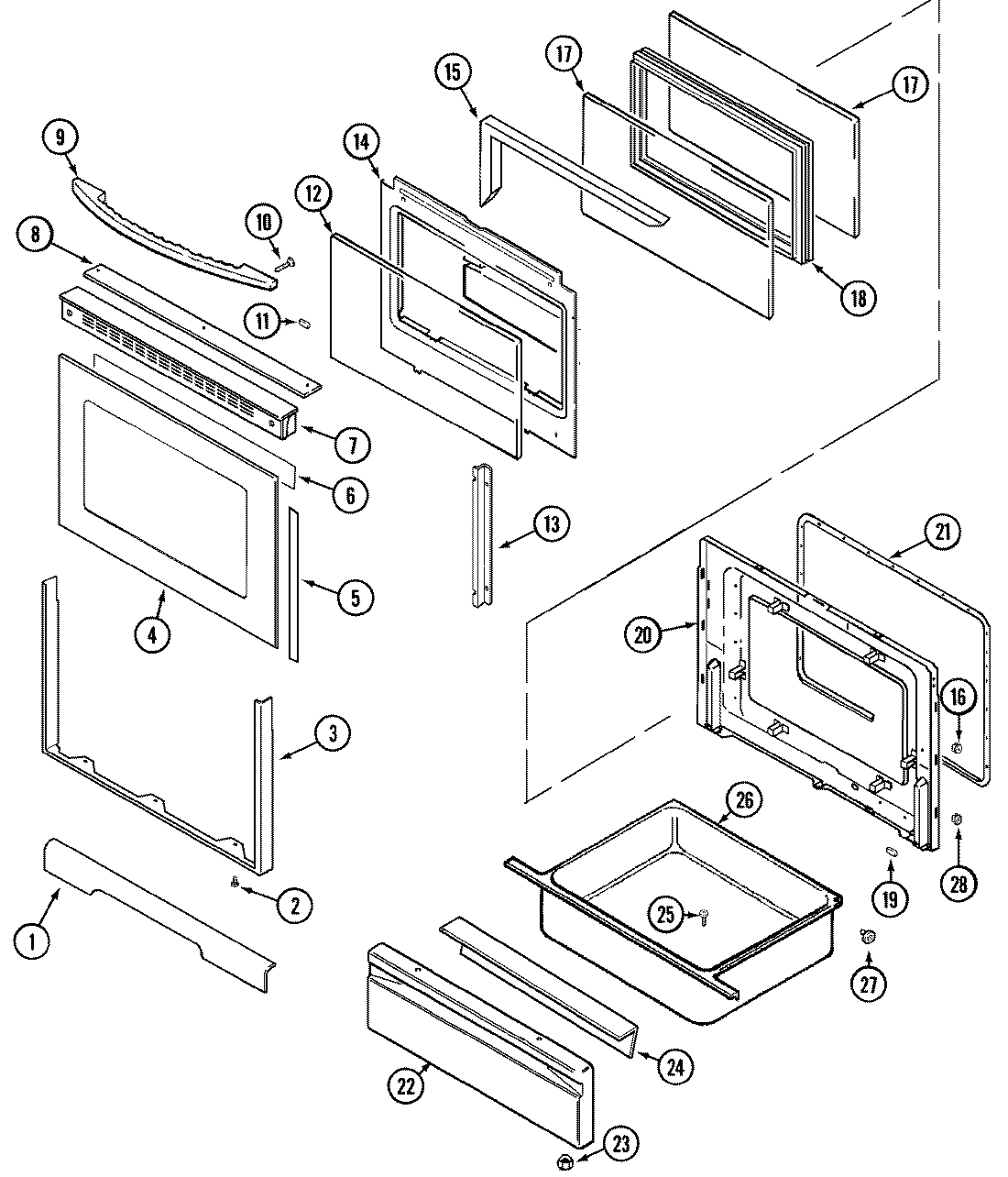

JGR8750ADA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003668
1	WP4159193 Whirlpool Screw
3	MAY 74004843
4	MAY 74003661
5	MAY 74003660
6	TAPE, FOIL 29`` X 2``
7	MAY 74003651
7	WP74009541 Whirlpool Screw Assembly
8	MAY 7728P095-60
8	MAY 7101P370-60
9	MAY 74003654
10	WP179051 Whirlpool Screw
11	WP74004224 Whirlpool Tape
12	GLASS, DOOR
13	MAY 74003650
14	MAY 74003648
15	INSULATION, OVEN DOOR
16	NUT, SNAP (ROUND-BLK)
16	NUT, SNAP (ROUND-WHT)
17	74003645 Whirlpool Range Oven Door Inner Glass
18	FRAME, GLASS
19	MAY 8010P085-60
20	MAY 74003642
21	GASKT-DOOR OVEN
22	MAY 71003041
23	WPW10131078 Whirlpool Nut Assembly
24	LINING, DRAWER PANEL
25	SCREW
26	MAY 71003042
27	MAY 74003566
27	WP488130 Whirlpool Air Conditioner Nut
28	MAY 74003643
