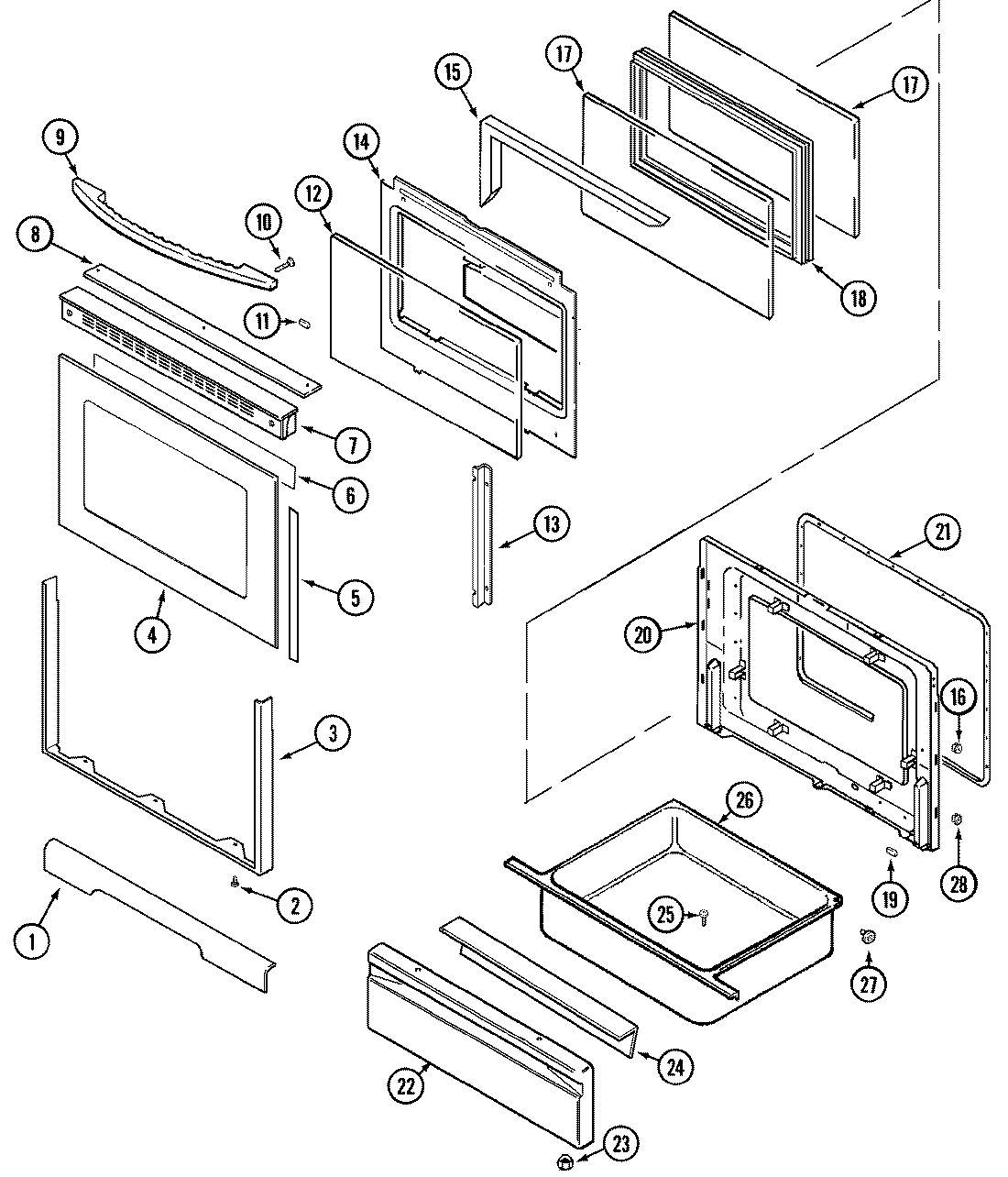

JGR8750ADW 03 – DOOR/DRAWER

JGR8750ADW 03 – DOOR/DRAWER

Written by

in

JGR8750ADW 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003670
1WP4159193 Whirlpool Screw
3MAY 74004325
3MAY 74004842
4MAY 74003663
5MAY 74003660
6TAPE, FOIL 29“ X 2“
7WP98008544 Whirlpool Screw Assembly
7WP74003653 Whirlpool Door Trim
8MAY 7728P094-60
8MAY 74001278
9MAY 74003656
10WP179051 Whirlpool Screw
11WP74004224 Whirlpool Tape
12GLASS, DOOR
13MAY 74003650
14MAY 74003648
15INSULATION, OVEN DOOR
16NUT, SNAP (ROUND-WHT)
16NUT, SNAP (ROUND-BLK)
1774003645 Whirlpool Range Oven Door Inner Glass
18FRAME, GLASS
19MAY 8010P085-60
20MAY 74003642
21GASKT-DOOR OVEN
22MAY 71003055
23WPW10131078 Whirlpool Nut Assembly
24LINING, DRAWER PANEL
25SCREW
26MAY 71003042
27MAY 74003566
27WP488130 Whirlpool Air Conditioner Nut
28MAY 74003643
