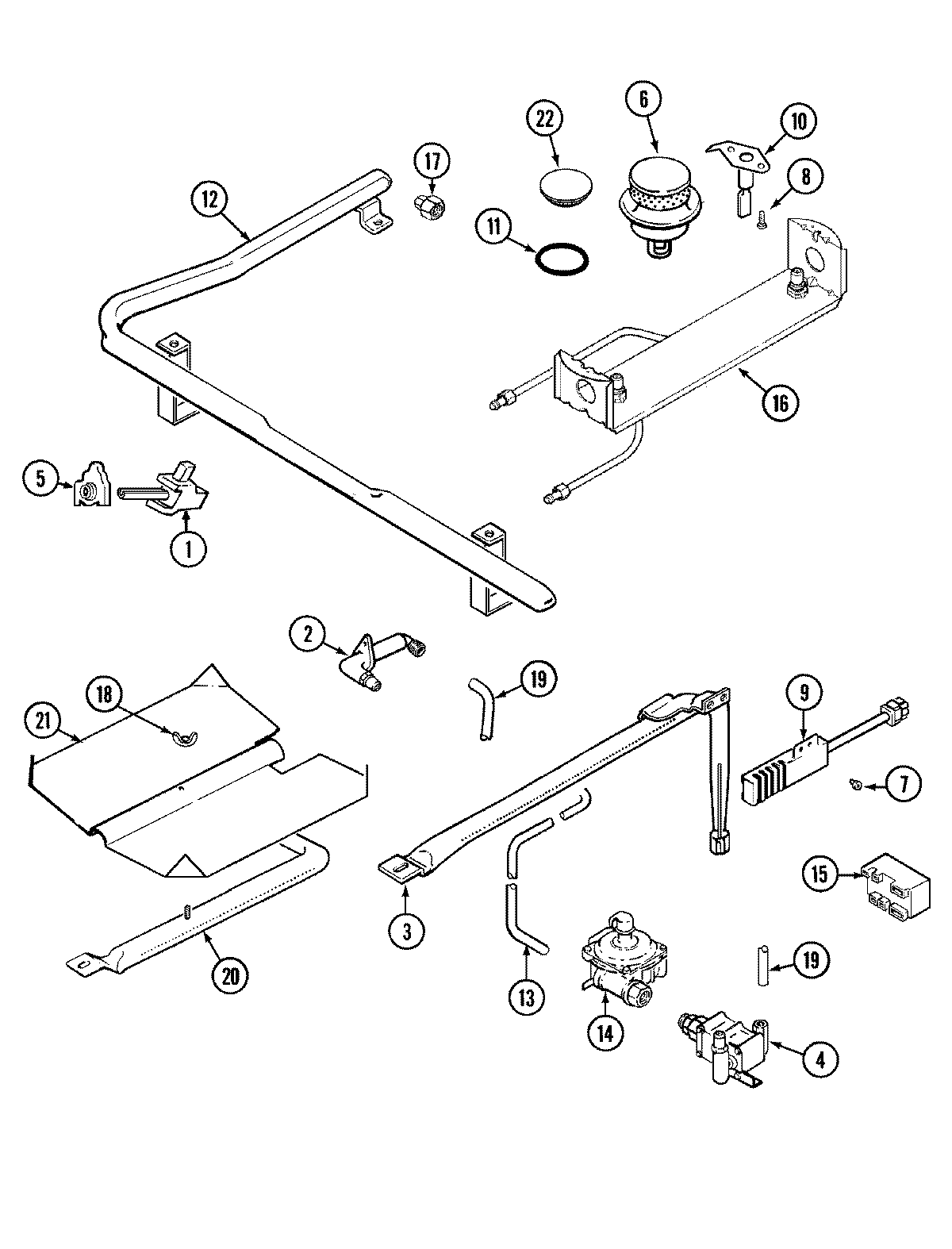

JGR8750ADW 04 – GAS CONTROLS

Products

Position	Product
1	WP8273096 Whirlpool Screw
1	MAY 7101P044-60
1	MAY 74003924
1	MAY 7502P251-60
1	MAY 71003231
2	MAY 7507P088-60
2	MAY 3605F186-45
3	MAY 3403D043-45
3	MAY 3807F446-45
4	WP74006427 Whirlpool Oven Valve
5	WP7403P279-60 Whirlpool Igniter Switch
5	MAY 74002533
6	MAY 3412D018-26
6	WP3412D024-26 Whirlpool Oven Surface Burner Head
7	WP3351614 Whirlpool Screw
8	MAY 7101P315-60
9	MAY 4005F421-45
9	MAY 7432P076-60
10	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
11	MAY 74002745
12	MAY 74005681
12	MAY 74003504
13	MAY 74002553
14	WP74006429 Whirlpool Regulator
15	MAY 74003288
16	MAY 74003506
16	WP5787M052-60 Whirlpool Fitting
17	MAY 7103P121-60
18	NUT, WING
19	MAY 3414F102-44
19	MAY 1555258K
20	MAY 3403D024-45
21	MAY 3601F217-47
22	MAY 71003040
23	MAY 5140D035-60
23	MAY 5125A312-60
23	MAY 5120D019-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
