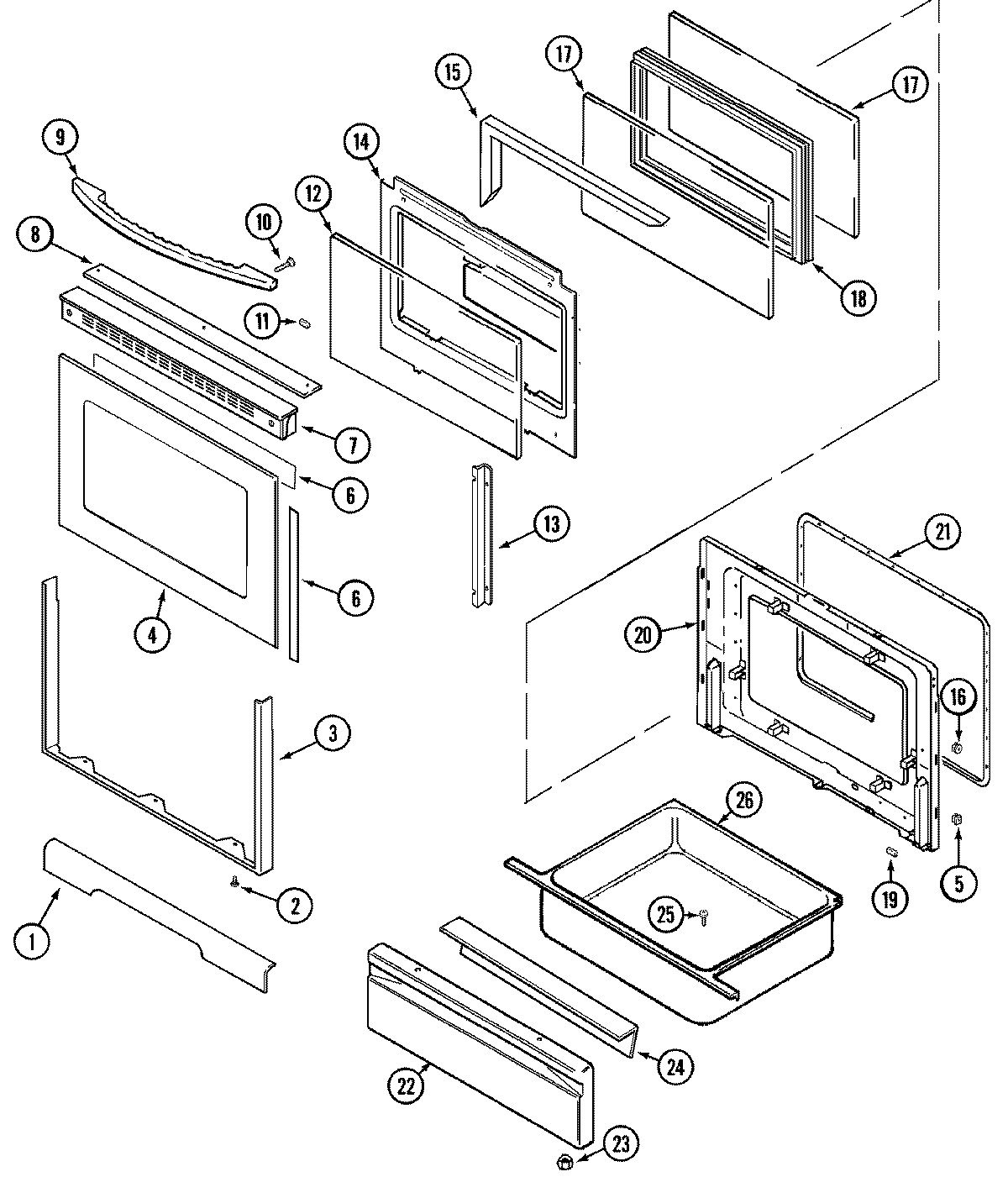

JGR8750BDB 03 – DOOR/WARMING DRAWER
Written by
in
JGR8750BDB 03 – DOOR/WARMING DRAWER
Products
Position
Product
1
MAY 74003669
1
WP4159193 Whirlpool Screw
3
MAY 74004324
4
MAY 74006741
5
MAY 74003643
6
TAPE, FOIL 29“ X 2“
7
WP98008545 Whirlpool Screw
7
MAY 74006402
9
MAY 74006667
10
MAY 7109P036-60
11
WP74004224 Whirlpool Tape
12
GLASS, DOOR
13
MAY 74003650
14
MAY 74003648
15
INSULATION, OVEN DOOR
16
NUT, SNAP (ROUND-BLK)
17
74003645 Whirlpool Range Oven Door Inner Glass
18
FRAME, GLASS
19
MAY 8010P085-60
20
MAY 74003642
21
GASKT-DOOR OVEN
22
MAY 71003056
23
WPW10131078 Whirlpool Nut Assembly
24
MAY 74006676
25
SCREW
26
WP3801F813-51 Whirlpool Bracket
26
MAY 74006595
26
MAY 74008334
←
