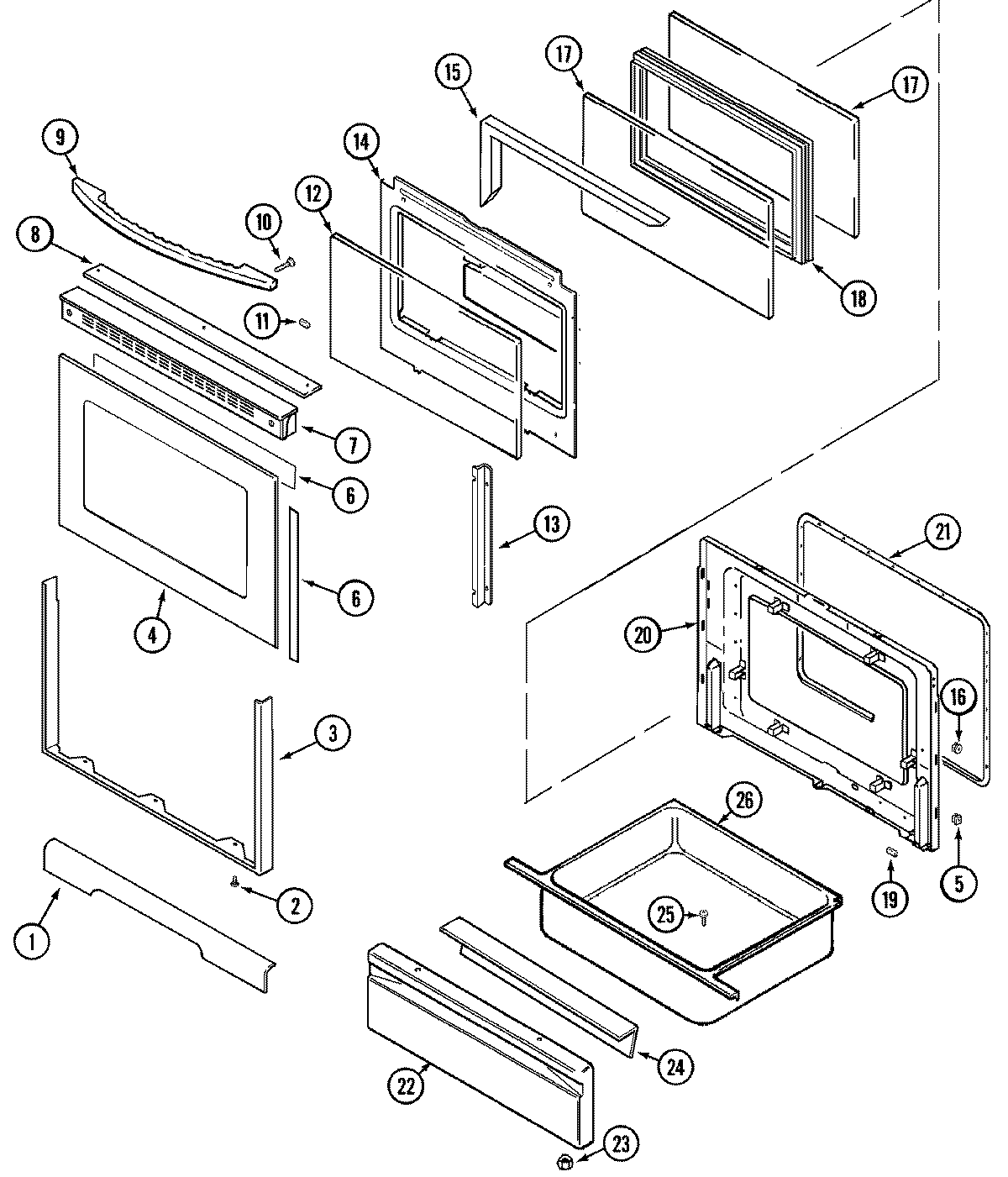

JGR8750BDQ 03 – DOOR/WARMING DRAWER

Products

Position	Product
1	MAY 71003594
1	WP4159193 Whirlpool Screw
3	MAY 74005162
4	MAY 74006740
5	MAY 74003643
6	TAPE, FOIL 29`` X 2``
7	MAY 74006403
8	WP74009541 Whirlpool Screw Assembly
8	MAY 74004978
9	MAY 74006666
10	MAY 7109P036-60
11	WP74004224 Whirlpool Tape
12	GLASS, DOOR
13	MAY 74003650
14	MAY 74003648
15	INSULATION, OVEN DOOR
16	NUT, SNAP (ROUND-BLK)
17	74003645 Whirlpool Range Oven Door Inner Glass
18	FRAME, GLASS
19	MAY 8010P085-60
20	MAY 74003642
21	GASKT-DOOR OVEN
22	MAY 71003597
23	WPW10131078 Whirlpool Nut Assembly
24	MAY 74006676
25	SCREW
26	WP3801F813-51 Whirlpool Bracket
26	MAY 74006595
26	MAY 74008334
