JGR8775QDB 04 – DOOR/DRAWER

JGR8775QDB 04 – DOOR/DRAWER

Written by

in

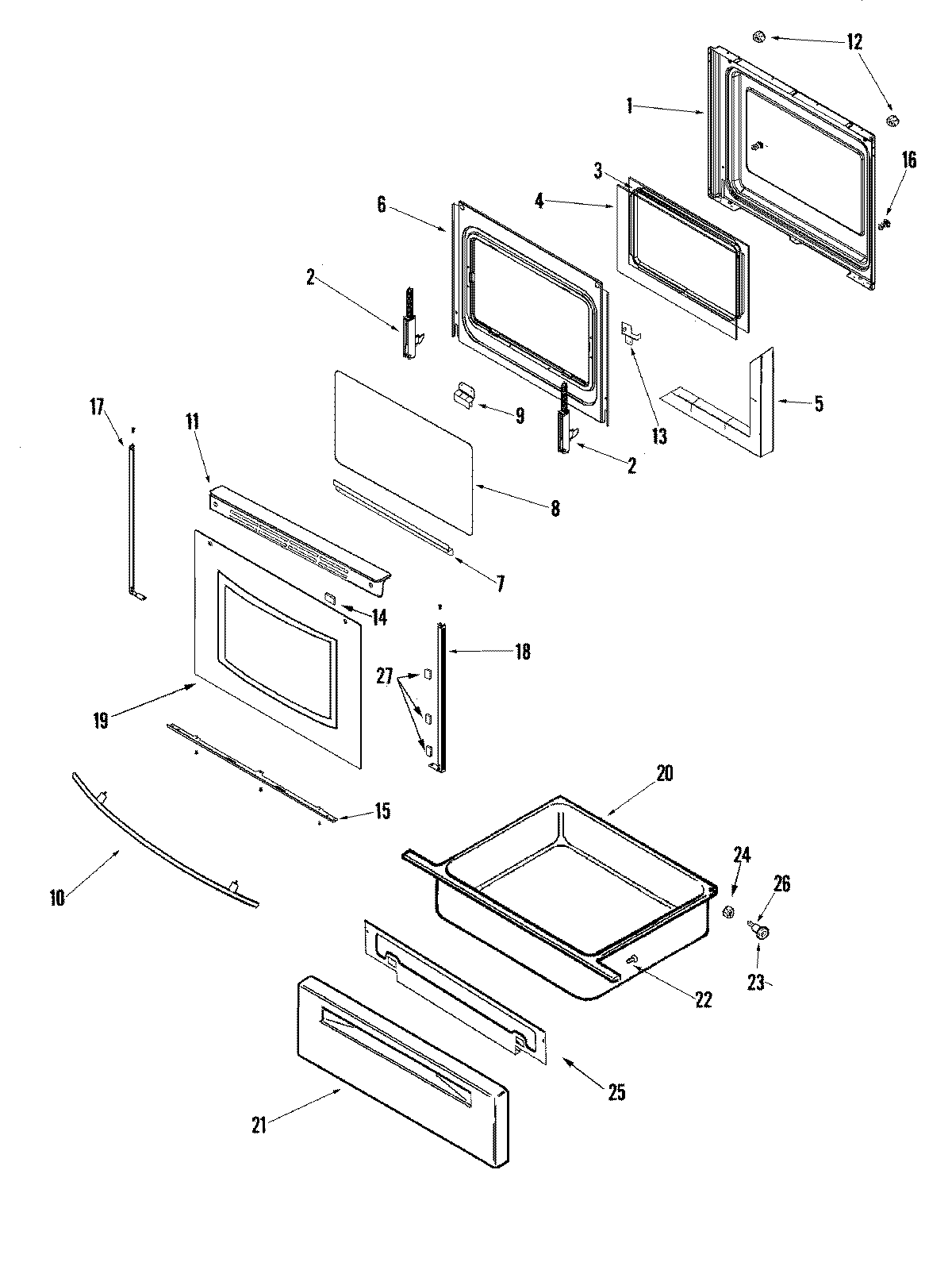

JGR8775QDB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10MAY 74008920
11MAY 74008890
11SCREW (8ABX1/2“-BLK)
12MAY 715634
13MAY 74008749
13MAY 74008750
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17MAY 74008902
18MAY 74008901
18MAY 74010560
19MAY 74008686
20WP3405F037-80 Whirlpool Utility Drawer
21PANEL, DRAWER (BLK)
22SCREW
23WP74004078 Whirlpool Door Roller
24WP488130 Whirlpool Air Conditioner Nut
25MAY 74009026
26SHAFT, STORAGE DRAWER ROLLER
27WP74009025 Whirlpool Double Sided Tape
