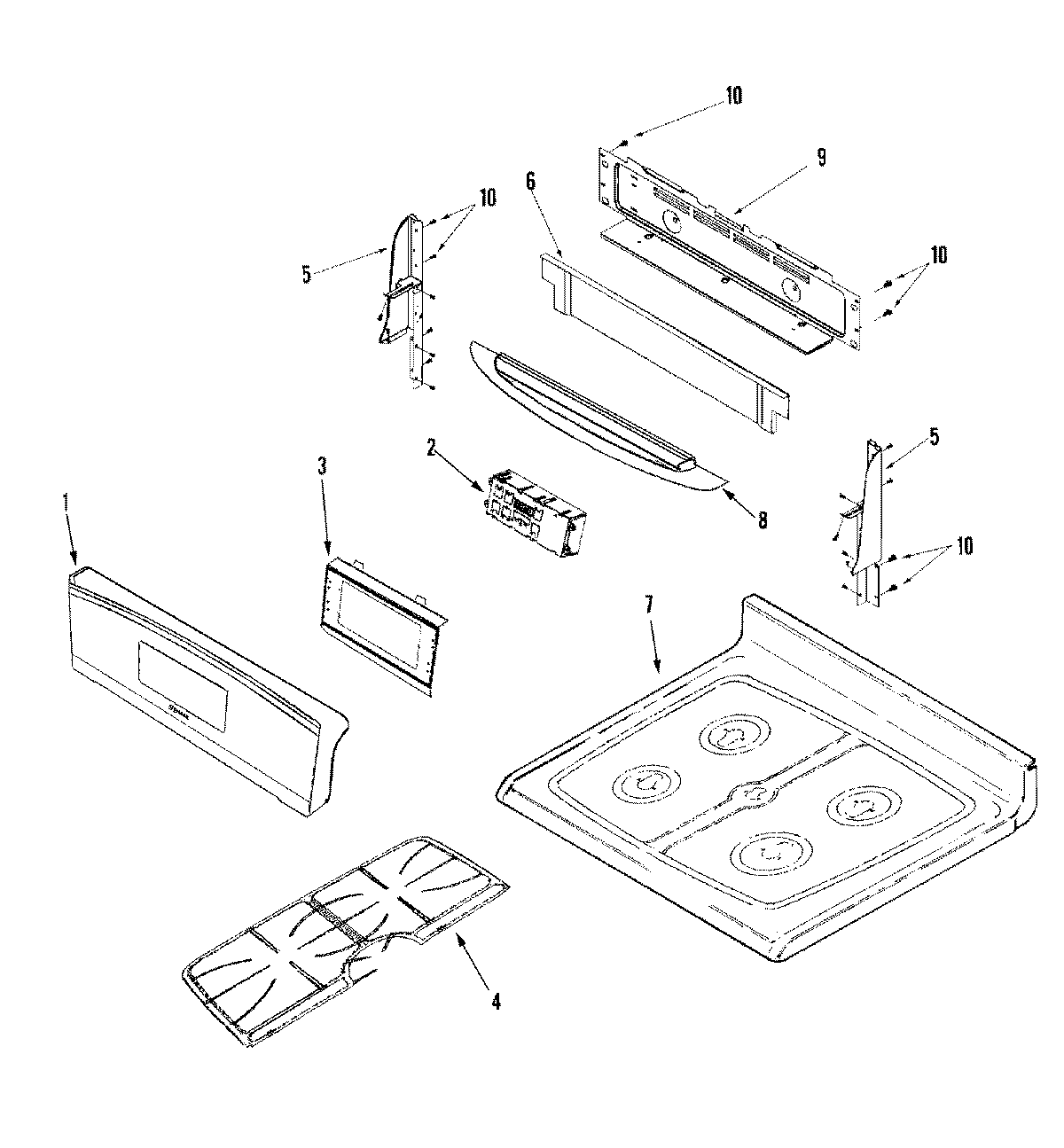

JGR8775QDQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74008651
2	MAY 74009155
3	MAY 74008716
4	MAY M0275597
4	W10919249 Whirlpool Burner Grate Foot
4	MAY 74009144
5	END CAP (RT-BSQ)
5	END CAP (LT-BSQ)
6	MAY 74008727
7	MAY 74009088
8	SCREW, SHOULDER
8	MAY 74008827
8	SHIELD, HEAT VISOR (BSQ)
9	MAY 74009093
9	MAY 74008730
9	MAY 74008836
9	COVER, BROIL ACCESS FITTING
9	SCREW (8BX3/8-NI)
10	SCREW
